Summary of Contents for Target Nolan TG3610

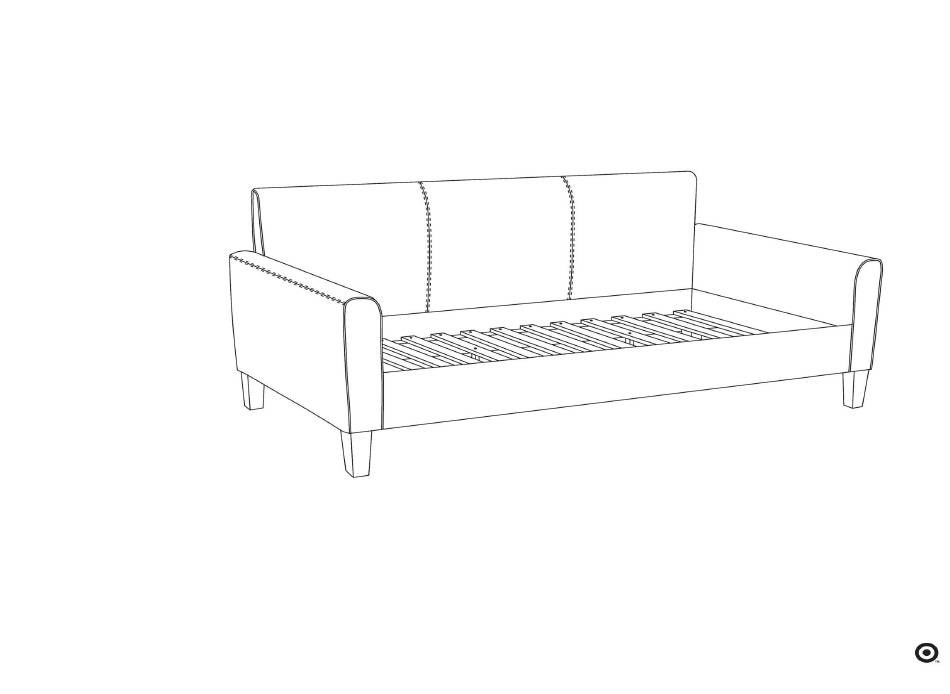

- Page 1 Nolan Daybed style# TG3610 dpci# 242-18-6386 >>>assembly instructions...
-
Page 2: Before You Begin
Congratulations on your latest Target purchase. Now what? Don't start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you'll be on your way to transforming your room in no time. - Page 3 table of contents …………………………………..…………………………………………………………….. introduction hardware parts list assembly 6-12 notes QUESTIONS? Just call 1-800-295-1980. For faster service, have the style number and DPCI number ready when calling.
- Page 4 hardware ………………………………………………………………………………………………………………………………………………. (H1) x 8 (H2) x 2 (H3) x 2 bolt bolt spring washer Ø 5/16" x 20mmL Ø 5/16" x 55mmL Ø 12.5mm (H4) x 10 (H5) x 1 (H6) x 12 flat washer allen key screw Ø 19mm Ø...
- Page 5 ITEM DESCRIPTION QUANTITY ………………………………………………………………………………………………………………………………………………. back left side frame right side frame front rail left metal bracket right metal bracket slat rack support leg plastic plate wood foot...
- Page 6 Step 1 ………………………………………………………………………………………………………………………………………………. 1.) Slide back (A) to side frames (B & C) by inserting the metal brackets on back (A) into the metal glides on side frames (B & C).
- Page 7 Step 2 ………………………………………………………………………………………………………………………………………………. ……………………………………………… (H1) x 4 (H4) x 4 bolt flat washer Ø 5/16" x 20mmL Ø 19mm (H5) x 1 Allen Key Ø 5mm 1). Attach metal brackets (E & F) to front rail (D) with bolts (H1) and flat washers (H4). Use allen Key (H5) to tighten bolts. 2).
- Page 8 Step 3 ………………………………………………………………………………………………………………………………………………. ……………………………………………… (H1) x 4 (H4) x 4 bolt flat washer Ø 5/16" x 20mmL Ø 19mm (H5) x 1 Allen Key Ø 5mm 1). Secure front rail (D) and side frames (B & C) with bolts (H1) and flat washers (H4). Use Allen Key (H5) to tighten the bolts. Note: Keep Allen Key (H5) for future use.
- Page 9 Step 4 ………………………………………………………………………………………………………………………………………………. ……………………………………………… (H2) x 2 bolt Ø 5/16" x 55mmL (H3) x 2 (H4) x 2 spring washer flat washer Ø 12.5mm Ø 19mm (H5) x 1 Allen Key Ø 5mm 1). With the help of another person, lay the unit on a clean smooth surface as shown above. 2).
- Page 10 Step 5 ………………………………………………………………………………………………………………………………………………. 1). Attach wood feet (J) and plastic plates (I) to side frames (B & C) by rotating clockwise. 2). With the help of another person, turn the daybed in the upright postion on its feet.
- Page 11 Step 6 ………………………………………………………………………………………………………………………………………………. 1). Attach support legs (H) to the slats with the pre-mounted nuts on slat rack (G) by rotating clockwise.
- Page 12 Step 7 ………………………………………………………………………………………………………………………………………………. ………………………… (H6) x 12 screw Ø 4mm x 30mmL 16th slat slat 1). Lay slat rack (G) on the wood frame of back (A) and front rail (D). Make sure the first and last slat on slat rack (G) are placed outside the wooden blocks on back (A) and front rail (D).
- Page 13 Notes ………………………………………………………………………………………………………………………………………………. Use with a coil spring mattress only; minimum thickness of 8".
- Page 14 © 2008 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
