Summary of Contents for FAAC 748

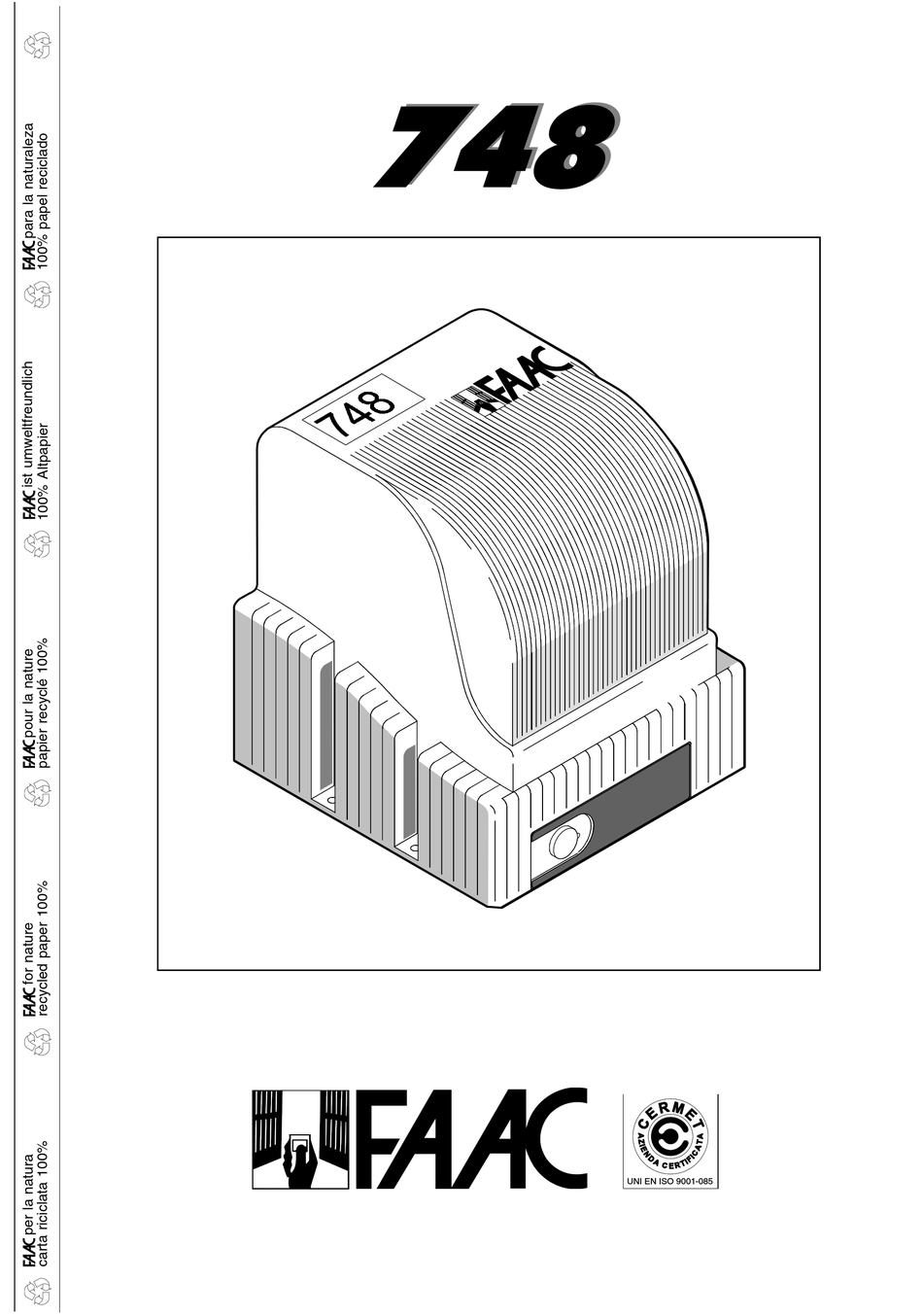

  • Page 1 %"& %"& UNI EN ISO 9001-085...
  • Page 2 3) Packaging material (plastic, polystyrene, etc.) must not be left within reach 16) Use of at least one indicator-light is essential for each system (e.g.: FAAC of children as it is a potential source of danger. LAMP MINILAMP, etc.) as well as a sign adequately fixed to the frame structure, in addition to the devices mentioned at point “16”.
  • Page 3: Standard Installation Layout

    The curve makes it possible to determine the maximum operating time (T) as a automation system. function of the duty cycle (F), e.g., the 748 operator can work continuously at a duty cycle of 25%. To ensure smooth running, operation should be kept within the duty area below the curve.
  • Page 4: Installing The Operator

    ENGLISH ENGLISH 3.2. INSTALLING THE OPERATOR 3.3. ASSEMBLING THE RACK 1) Fit the rack by means of the screws TE 8 x 25 and the spacers provided, as shown 1)Dig out a hole for the base plate as in figure 7. shown in fig.
  • Page 5 3.4. POSITIONING TRAVEL LIMIT PLATES 3.5. MANUAL OPERATION The 748 operator is equipped with an electro-mechanical travel Should the need arise to operate the gate manually because of limit switch with roller, which, when a profiled plate secured at the...
  • Page 6: Manual Operation

    - At least once every six months have the automation, the safety devices and the earth connection checked by a qualified technician. DESCRIPTION The FAAC 748 automation is ideal for residential applications. The FAAC model 748 automation for sliding gates are electromechanical operators which transmit movement to Fig. 1 the leaf by means of a pinion with rack coupled in appropriate manner to the sliding gate.
  • Page 7: Technical Specifications

    ENGLISH CONTROL BOARD 748D WARNINGS LAYOUT AND COMPONENTS Important: Before attempting any work on the control board (connections, maintenance), always turn off power. - Install, upstream of the system, a differential thermal breaker with adequate tripping threshold. - Connect the earth cable to the appropriate terminal on the J7 connector of the equipment (see fig.2).
  • Page 8 ENGLISH 4.1. Connection of photocells and safety devices Connection of an "edge" safety device Before connecting the photocells (or other devices) we advise you to select the type of operation according to the movement area they have to protect (see fig.3): 9 10 11 12 Opening safety Opening/closing...
  • Page 9 ENGLISH Connection of a pair of closing photocells and a pair of Connection of two pairs of closing photocells and two opening/closing photocells edge safety devices 9 10 11 12 9 10 11 12 RX CL TX CL RX CL1 TX CL1 TX CL2 RX CL2...
  • Page 10 ENGLISH FSW OP - Opening safety devices contact (terminal 3): The 4.5. Connector J2 - Rapid connection to Minidec, Decoder and RP purpose of the opening safety devices is to protect the leaf This is used for rapid connection of Minidec, Decoder and RP movement area during opening.
  • Page 11: Advanced Programming

    ENGLISH 5. PROGRAMMING 5.2. ADVANCED PROGRAMMING To program operation of the automated system, you have to To access ADVANCED PROGRAMMING, press key F and, as you access the " PROGRAMMING " mode. hold it down, press key Programming is split into two parts: BASIC and ADVANCED . •if you release key + , the display indicates the name of the first 5.1.
  • Page 12: Cycle Programming

    ENGLISH Display Function Default Display Function Default CLOSING PHOTOCELLS LOGIC: WORK TIME: Select the tripping mode of the closing We advise you to set a value of 5 to 10 photocells. seconds over the time taken by the gate to They operate for the closing movement travel from the closing limit-switch to the only: they stop movement and reverse it...
  • Page 13 ENGLISH...
  • Page 14 ENGLISH...
  • Page 15 Le descrizioni e le illustrazioni del presente manuale non sono impegnative. La FAAC si riserva il diritto, lasciando inalterate le caratteristiche essenziali dell’apparecchiatura, di apportare in qualunque momento e senza impegnarsi ad aggiornare la presente pubblicazione, le modifiche che essa ritiene convenienti per miglioramenti tecnici o per qualsiasi altra esigenza di carattere costruttivo o commerciale.
