Summary of Contents for FAAC 531EM

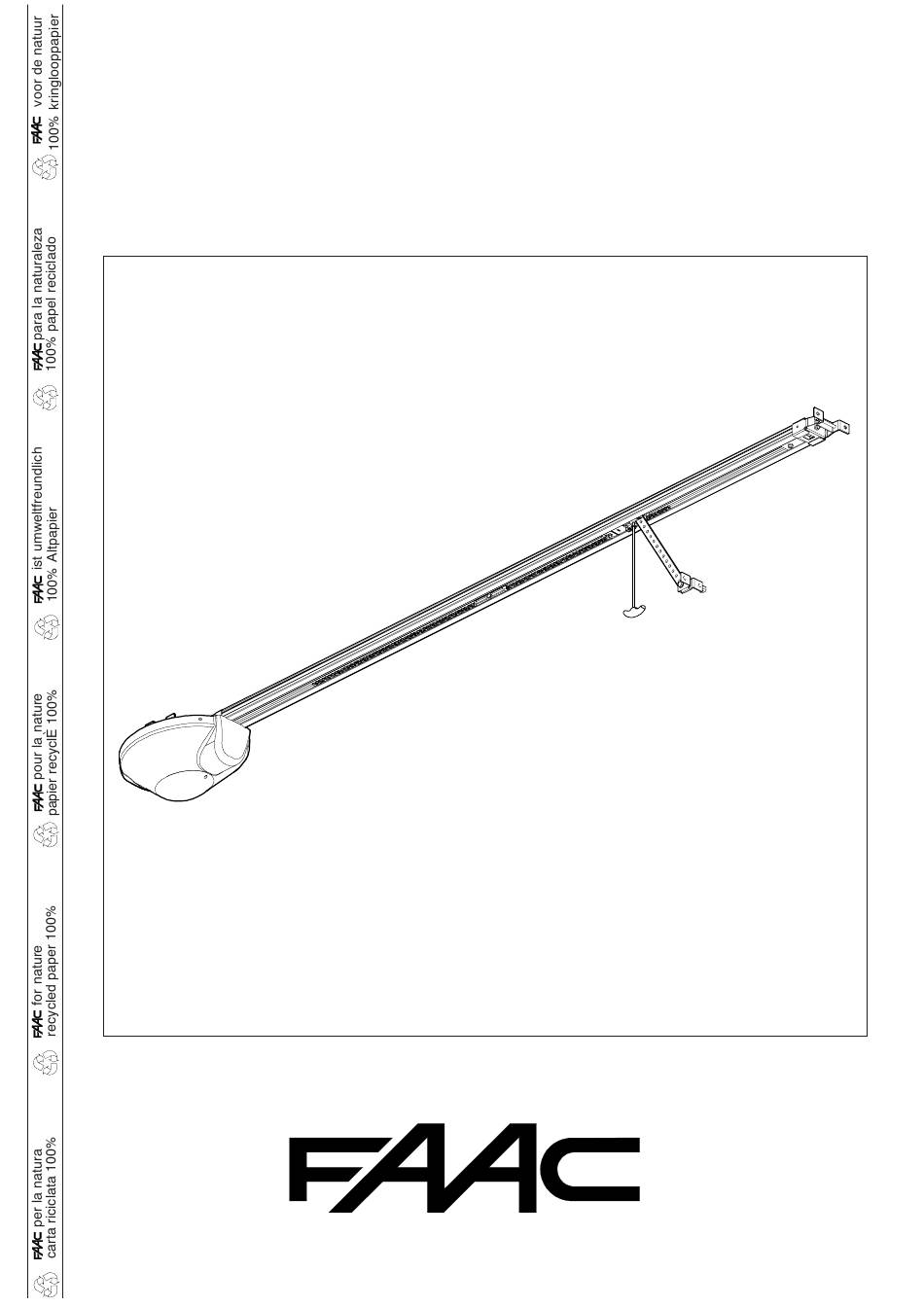

- Page 1 531EM 531EM...
- Page 2 17) FAAC declines all liability as concerns safety and efficient operation source of danger. of the automated system, if system components not produced by 6) FAAC declines all liability caused by improper use or use other than that FAAC are used. for which the automated system was intended.
-
Page 3: General Safety Instructions For Installation And Maintenance
•screwdrivers for cross-head and cut-head screws •two flat wrenches for 13 mm hexagon head screws Material required for installing the 531EM operator and the relevant accessories (if present): •cable 2x0.5 mm² (emitting photocells, pulse generators for opening movement and stop) •cable 3x0.5 mm²... -
Page 4: Technical Specifications
Noise at standard speed (dB(A)) to the operator with belt drive. Deceleration travel length Varies according to setup The 531EM automatic systems are designed and built for indoor Intrinsic safety device Category 2 use and for controlling vehicle entry. Any other use is improper. -
Page 5: Preliminary Checks
4. DESCRIPTION Ceiling fixture Plastic housing Courtesy light Electronic equipment Motor Operator support Rear connection Operator fixing bracket Sliding guide Drive carriage Release knob Door connection bracket Transmission unit Front connection and chain adjuster Front connection bracket Fig. 3 5. PRELIMINARY CHECKS Remove the door’s mechanical closing devices so that the door is closed by the automatic system. -
Page 6: Sliding Guide
2) Slide the transmission unit all the way along the sliding gui- 6. ASSEMBLY de (fig. 7 ref. A) bringing it near the front terminal. 6.1. SLIDING GUIDE 3) Fit the front connection (fig. 7 ref. B) to the transmission unit When using the "two pieces sliding guide", carry out assembly (fig. -
Page 7: Installation
6.3. OUTSIDE RELEASE DEVICE (optional) 7.1. SLIDING GUIDE When using the outside release device, fit the cable in the After completing the preliminary assembly operations, install the sliding guide, proceeding as follows: seat before starting installation. 1) Draw a vertical line on the lintel, corresponding to the 1) Release the carriage (see par. - Page 8 8) Lift the sliding guide bringing the rear connection to the the middle. same level as the front one, or until reaching the same 4) Check that the distance between centres of the door angle as the door horizontal rail. For direct fixing to the connection and front connection bracket fixing holes is not ceiling, go to point 12, after modifying the rear connection more than 20 cm (fig.
- Page 9 7.3. OPERATOR After installing the sliding guide, install the operator: 1) Remove the plastic housing. 2) Unscrew the courtesy light. 3) Insert the gear motor shaft in the coupling located in the sliding guide rear connection (fig. 19). 4) Fix the operator to the guide (fig. 20). 7.4.
- Page 10 8. 531MPS ELECTRONIC CARD 8.1. TECHNICAL SPECIFICATIONS Power supply 230 Vac 50 Hz Accessories power supply 24 Vdc Accessories max. load 200 mA Ambient temperature -20°/+55°C Motor protection fuses Quick connector for decoding cards and RP receivers Function logics Automatic/ Semiautomatic Terminal board connections Open/Stop/Safety...
-
Page 11: Other Safety Devices
8.3.3. Courtesy light 8.4. CONNECTIONS IMPORTANT: Always turn the power off before any intervention The courtesy light stays on for 2 minutes from the end of the on the card (connections, programming, maintenance). operation (not modifiable). The electrical system specifications are given in the chapter During the self-learning cycle the lamp flashes rapidly (on for “Instructions for the installer”. - Page 12 Learning can be carried out in automatic or manual mode; in 8.5. PROGRAMMING the latter case the deceleration points can be established in 8.5.1. Card settings opening and closing, whereas in automatic, the equipment Carry out the equipment settings by means of the Dip-Switch independently establishes the movement parameters.
- Page 13 MANUAL LEARNING WITH LOGIC “E” (SEMIAUTOMATIC) stopped and the closing movement starts. Press the SET-UP pushbutton for one second. The courtesy light 6) Effect the 6th OPEN command to establish the point at starts flashing when the button is released. Carry out the which the start of deceleration is required.
-
Page 14: Maintenance
Once a month: check the efficiency of the anti-crushing device and also check if it is able to detect a 50 mm high obstacle laid on the ground. . REPAIRS For possible repairs, contact authorized FAAC Repair Centres. . TROUBLESHOOTING GUIDE Fig. 30 Fault... - Page 15 13. ACCESSORIES Use of the safety edge with conductive element is facilitated by the possibility of housing the special control unit (fig. 31) on the operator. The outside release device can be installed with lever system (fig. 32 ref. A) or key (fig. 32 ref. B). The central support (fig.
- Page 16 MANUAL OPERATION The 531EM operator has an emergency release system which can be activated from the inside; however, by request a lock can be fitted for activating the release also from the outside.
- Page 18 Le descrizioni e le illustrazioni del presente manuale non sono impegnative. La FAAC si riserva il diritto, lasciando inalterate le caratteristiche essenziali dell’apparecchiatura, di apportare in qualunque momento e senza impegnarsi ad aggiornare la presente pubblicazione, le modifiche che essa ritiene convenienti per miglioramenti tecnici o per qualsiasi altra esigenza di carattere costruttivo o commerciale.
