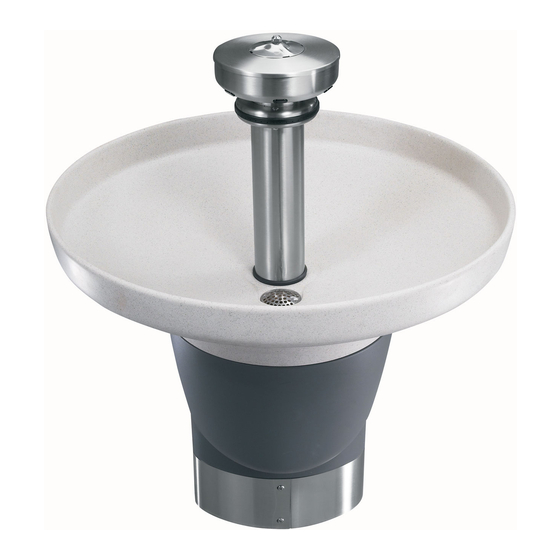

TDB3105 with
TouchTime Control
Available in standard height,
juvenile height, and TAS height.
Read this entire installation manual to ensure proper installation. When finished with the
Installation
installation, file this manual with the owner or maintenance department.
Separate parts from packaging and make sure all parts are accounted for before discarding
Packing List
any packaging material. If any parts are missing, do not begin installation until you obtain
•
•
•
T H
IS
the missing parts.
•
E
S ID
U P
Make sure that all water supply lines have been flushed and then completely turned off
before beginning installation. Debris in supply lines can cause valves to malfunction.
Product warranties may be found under "Product" on our web site
at www.bradleycorp.com.
215-1563 Rev. E; ECN 12-00-004
© 2013 Bradley
Page 1 of 22
1/15/2013
Installation
TDB3105
Terreon
Washfountain with TouchTime

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . . . . . . . . . . 2
Circular Washfountain Dimensions . . . . . . . . . . . . . . . . . . 3
Rough-In Specifications. . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Installing the Drain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Bowl/Pedestal Mounting and Assembly . . . . . . . . . . . . . . 7
Installing Drain Spud in Bowl. . . . . . . . . . . . . . . . . . . . . . . 8
Valve and Tubing Connections . . . . . . . . . . . . . . . . . . . . 13
Valve and Electrical Connections . . . . . . . . . . . . . . . . . . 14
Adjust the Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . 15-17
Soap Valve Parts List and Maintenance . . . . . . . . . . 17-18
TouchTime Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . 20
Solenoid Valve Troubleshooting. . . . . . . . . . . . . . . . . . . . 21
IMPORTANT!
P.O. Box 309, Menomonee Falls, WI USA 53052-0309
PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817
bradleycorp.com
36" Circular Deep Bowl
®
Assembly Installation . . . . . . . . . . . . . . . . 9-12
®
Control
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDB3105 and is the answer not in the manual?

Questions and answers

Related Manuals for Bradley TDB3105

Summary of Contents for Bradley TDB3105

  • Page 1: Table Of Contents

    Product warranties may be found under “Product” on our web site at www.bradleycorp.com. 215-1563 Rev. E; ECN 12-00-004 P.O. Box 309, Menomonee Falls, WI USA 53052-0309 © 2013 Bradley PHONE 800.BRADLEY (800.272.3539) FAX 262.251.5817 Page 1 of 22 1/15/2013 bradleycorp.com...

  • Page 2: Pre-Installation Information

    • 1-1/2" vent or tie pipe on types vented through washfountain column • 110 VAC GFI power source for 110/24 VAC UL Class II transformer supplied • OPTIONAL: Bradley recommends installing an electrical cut off switch to the unit. This feature allows no accidental water delivery during regular maintenance and service.

  • Page 3: Circular Washfountain Dimensions

    (1299) (222) 42-3/4"* (1085) 9-3/4" 39-1/8"* (248) 23-1/2"* (994) 18-1/2" (597) 30"* (470) (762) 36" 8-3/4" (222) (914) 9-3/4" (248) 18-1/2" * Add 2" (51) for TAS height unit (470) 36" (914) Bradley • 215-1563 Rev. E; ECN 12-00-004 1/15/2013...

  • Page 4: Rough-In Specifications

    (32) 1-1/2" NPT Vent to Ceiling 4-1/8" (105) 5" (127) 2" NPT Drain, Stub Up 3" (76) Above Floor Suggested Electrical Outlet 3-7/8" Location (98) 4-1/4" (108) 8-1/2" (216) 36" (914) Bowl Bradley • 215-1563 Rev. E; ECN 12-00-004 1/15/2013...
  • Page 5 1-5/8" 1-1/4" 7/8" (22) (41) (32) 4-1/8" (105) 5" (127) 2" NPT Drain, Stub Up 3" (76) Above Floor Suggested Electrical Outlet 3-7/8" Location (98) 4-1/4" (108) 8-1/2" (216) 36" (914) Bowl Bradley • 215-1563 Rev. E; ECN 12-00-004 1/15/2013...

  • Page 6: Installing The Drain

    See Rough-In information for dimensions not shown. 4" (102) Types A, O with Tie Pipe Bracket Option Table 1 — “B” Trap Dimensions Standard Height Juvenile Height 25" (635) 22-1/2" (572mm) 24-1/2" (622mm) Bradley • 215-1563 Rev. E; ECN 12-00-004 1/15/2013...

  • Page 7: Bowl/Pedestal Mounting And Assembly

    Front View Place Hands Here When Lifting Bowl Place Hands Here When Valve Bracket Lifting Bowl Threaded Rods (4) Places 1/4" Washers and Wing Nuts (4) Places Kick Ring Washer and Screw Bradley • 215-1563 Rev. E; ECN 12-00-004 1/15/2013...

  • Page 8: Installing Drain Spud In Bowl

    Tighten the spud and lock nut against bowl. Drain Pre-Pack (S45-273) Bowl Secure the strainer to drain spud with screws Washer provided. (142-068) Locknut (161-021) Connect spud (or B Trap or Tie Pipe Bracket) to drain. Bradley • 215-1563 Rev. E; ECN 12-00-004 1/15/2013...

  • Page 9: Touchtime Assembly Installation

    (Part No. Varies with color of bowl and height of unit. Contact your local Bradley Rep for assistance) Tie Bar Pre-Pack (S45-055) Standard Pedestal Assembly (S17-337) Access Panel TAS Pedestal Assembly (186-1469) (S17-338) (A Shown) Bradley • 215-1563 Rev. E; ECN 12-00-004 1/15/2013...
  • Page 10 Secure TouchTime actuator module cover and top Tie Rod cover with acorn nut and set screw. 4-1/4" Tie Rod Coupling Connect stops to supply stub-outs. TT Module Assembly (S83-179) Tie Bar Support Tube Sprayhead (S57-006) (S05-054) Bradley • 215-1563 Rev. E; ECN 12-00-004 1/15/2013...
  • Page 11 Support Tube Gasket Terreon Deep Bowl (ADA bowl Shown) (125-011) ® (Part No. Varies with color of bowl and height of unit. Contact your local Bradley Rep for assistance) Vented Trap (111-024) Standard Pedestal Assembly (S17-337) TAS Pedestal Assembly (S17-338)
  • Page 12 Secure top cover to tie bar with two cap screws provided. Connect stops to supply stub-outs. TT Module Assembly Tie Bar (S83-179) Support Tube Sprayhead (S57-006) (S05-054) Bradley • 215-1563 Rev. E; ECN 12-00-004 1/15/2013...

  • Page 13: Valve And Tubing Connections

    (marked with the letter "H") and the cold supply is connected to the cold inlet on the valve (marked with the letter "C"). 3/8" Dia. Tube from Sprayhead Valve Mounting Bracket Valve Mounting Screws Valve Bracket Bradley • 215-1563 Rev. E; ECN 12-00-004 1/15/2013...

  • Page 14: Valve And Electrical Connections

    Push cover down and tighten screw. Clean sprayhead if necessary. Adjust the volume control to control the flow of water. Attach pedestal access panel and kick plate with hardware provided. Bradley • 215-1563 Rev. E; ECN 12-00-004 1/15/2013...

  • Page 15: Cleaning And Maintenance

    Avoid contact with harsh chemicals such as paint remover, bleach, acetone, etc. Avoid contact with hot pans and objects. Repair Kits: Terreon repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing. Repair kits are made to order and have a shelf life of 30 days.
  • Page 16 Many products named are regional in distribution, and can be found in local supermarkets, department and hardware stores, or through your cleaning service. It is emphasized that all products should be used in strict accordance with package instructions. Bradley • 215-1563 Rev. E; ECN 12-00-004 1/15/2013...

  • Page 17: Soap Valve Parts List And Maintenance

    Valve Attaching Assembly Parts S09-057 S09-057S Item Part No. Description 124-001D Washer — 110-057 — 125-001AN Stopper — 159-114 Reinforcing Plate — 124-001AT Washer — 160-176 Screw — S09-040 Valve S53-045 Adaptor Bradley • 215-1563 Rev. E; ECN 12-00-004 1/15/2013...
  • Page 18 Soap thickness is determined by a measurement called viscosity. Soap viscosity should be between 100 cps (centerpoise) and 2500 cps for all Bradley soap dispensers. Thinner soaps are perceived by the users as being “watered down” so users tend to take more than they need, resulting in waste.

  • Page 19: Sprayhead Parts List And Troubleshooting

    The sprayhead shown above includes a perforated neoprene spray ring grommet that is self-cleaning. The water pressure flexes the spray holes which slows accumulation of foreign matter and tends to “break loose” any such deposits that may have accumulated. Bradley • 215-1563 Rev. E; ECN 12-00-004 1/15/2013...

  • Page 20: Touchtime Troubleshooting

    If, after checking the transformer, the solenoid valve and the wiring, you are unable to activate the sprayhead by pressing the TouchTime push button, the TouchTime switch assembly is not working properly and needs to be replaced. Contact your Bradley representative to order a replacement switch assembly. Bradley • 215-1563 Rev. E; ECN 12-00-004...

  • Page 21: Solenoid Valve Troubleshooting

    • reconnect to the adjacent valve and turn on the water supplies to the unit; • pass your hand in front of the sensor. If the station still fails to turn on, replace the sensor. Bradley • 215-1563 Rev. E; ECN 12-00-004 1/15/2013...

  • Page 22: Thermostatic Mixing Valve Troubleshooting

    198-014 Check Valve* 132-051 Retaining Ring* 118-319 Valve Body 146-079 U-Clip * Included with Prepack S65-326 Tempered Line Adapter Option Part no. S39-804 (replaces S59-4000 if tempered line is used) Strainer (173-028) Bradley • 215-1563 Rev. E; ECN 12-00-004 1/15/2013...
