- Page 1 QUICK START GUIDE V1.0 Sep. 5th, 2019 www.walkera.com...
-
Page 2: Table Of Contents
2.0 Description 3.0 Specifications 4.0 Product Assembly 5.0 Check Battery Levels 6.0 Charge the Batteries 10-11 7.0 WKDrone-ZHUN Software Interface Instructions 11-13 8.0 Remote Controller Preparation 9.0 Prepare for Aircraft 9.1 Starting the aircraft / Binding 9.2 Run the WKDrone-ZHUN software 9.3 GPS Indicator... -
Page 3: Safty Flight Summary
Quick Start Guide Walkera All Rights Reserved 1.0 Safty Flight Summary The use of ZHUN has a certain security risk and is not suitable for people under the age of 18. 1.1 Environment Please fly your aircraft in the open aera without shelter and without electromagnetic interference. -
Page 4: Description

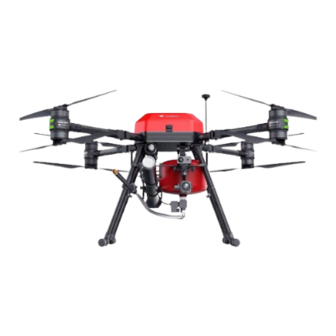

Walkera All Rights Reserved 2.0 Description The Fire-fighting drone Zhun is equipped with 30 times optical zoom camera, night vision optical telescope camera and LIDAR Ranging Obstacle Avoidance Module system. It has the ability to observe in the front of the fire environment and focus on the target and make a precise fire extinguishing, put out the fire in time and effiectively for tall building and forest aera.And it also provide a live reference for the launch and rescue,greatly improving the accuracy of... - Page 5 Right Rear * 1) The Remote Controller has J apanese hand mode and American hand mode, It can be changed in the WKDrone-ZHUN interface. It is recommended that beginners use American hands mode as the control method. 2) J a panese hand mode(Throttle in the right hand): Left stick--ELEV/RUDD; Right stick--THRO/AILE.
-
Page 6: Specifications
ZHUN Quick Start Guide Walkera All Rights Reserved 3.0 Specifications Aircraft Symmetrical Max. 2m/s 1500mm motor wheelbase Decending speed Unfold:1150× 1150× 760 mm GPS mode: 5 m/s(windless); Fuselage size Max. Horizontal Folded: 650× 650× 760 mm Motion mode: 8 m/s(windless);... -
Page 7: Remote Controller
ZHUN Quick Start Guide Walkera All Rights Reserved Sighting Telescope Magnification 3~9 times Differentiation of line Cross point differentiation Extent 33cm Differentiation of material Metal Wire differentiation 590g Objective lens focusing Weight Focus Mode Pipe diameter 25.4mm Accommodation mode Swivel lock hand mode... -
Page 8: Product Assembly
ZHUN Quick Start Guide Walkera All Rights Reserved 4.0 Product Assembly 4.1 Unfolded arms, blades, GPS antenna Rotate the deployment arm counterclockwise as indicated by the blue arrow and lock the arm(Fold the arms method: Pull the lock in the direction of the red arrow and turn the arm in the clockwise direction). -
Page 9: Check Battery Levels
ZHUN Quick Start Guide Walkera All Rights Reserved 4.3 Installation of fire extinguishing tank and dry powder conveying pipe Hang the fire extinguishing tank in Connect the fire extinguishing tank Install the dry powder conveying place on the holder and tighten the power cord. -
Page 10: Charge The Batteries
ZHUN Quick Start Guide Walkera All Rights Reserved 6.0 Charge the Batteries 6.1 Remote control charging Tip: The device is equipped with a build-in lithium battery of 7.4V9000mAh,please use DC 15V4A for charging. Charging port 1) Connect the charger to the AC power (100 ~ 240v 50/60Hz). -
Page 11: Wkdrone-Zhun Software Interface Instructions
Fig.6.3-1 7.0 WKDrone-ZHUN software interface introduction In this interface, you can preview HD video and photos taken by ZHUN, and dynamically set parameters of aircraft, remote control, gimbal and battery 2.4G 51.98V... - Page 12 ZHUN Quick Start Guide Walkera All Rights Reserved 7. High-definition image transmission signal strength: Shows 15. The camera zoom control: the strength of the video signal transmitted between the Divided into wide Angle (W) and Telescope (T). aircraft and the remote control.
-
Page 13: Remote Controller Preparation
ZHUN Quick Start Guide Walkera All Rights Reserved 21. Automatic obstacle avoidance switch: Turns on or off the automatic obstacle avoidance function. (After turning on automatic obstacle avoidance, slide up or down to set the safe distance for automatic obstacle avoidance). -
Page 14: Starting The Aircraft / Binding
ZHUN Quick Start Guide Walkera All Rights Reserved 9 .0 Ready for Flight Before you plan to fly, please download the map in the APP (turn off the aircraft power, and connect internet, click the "A thumbnail map icon" to download the map). -
Page 15: Run The Wkdrone-Zhun Software
ZHUN Quick Start Guide Walkera All Rights Reserved 9 .2 Run WKDrone-ZHUN software 2.4G 51.98V Connected 03:58:45 AUTO Mode 5.00 m Voyager 4-4G-4K Voyager 4-4G-4K GPS Ready 15 m 17.1 m 0.0 m/s 0.0 m/s 0.0° 0.0° 0.0° 1. Click “WKDrone-ZHUN”... -
Page 16: Flight Control
3) Place the aircraft in a horizontal position until the P and R angle values in the flight status parameters of the WKDrone-ZHUN interface are stable before taking off. 4) Please switch the flight mode before taking off (View the current flight mode with the WKDrone-ZHUN interface). - Page 17 ZHUN Quick Start Guide Walkera All Rights Reserved GPS mode Common Manual Turn the flight mode switch to the "GPS" position and the throttle stick to the center. the aircraft will enter GPS mode. Ground Attention: Fig.10.0-3 1) The first flight default to GPS Mode after each power on.
-
Page 18: Photo& Video
During the landing, you can control the throttle and direction. 11.0 Photo & V ideo Note: The WKDrone-ZHUN main interface has an image display transmitted by the aircraft before it can be manipulated using the touch screen. Photo and video need to be operated in the WKDrone-ZHUN interface. -
Page 19: Gimbal Control
And you can control pitch and horizontal angle of the gimbal by Gimbal dial on Remote Controller or operate in the WKDrone-ZHUN interface. There are two modes: Follow me mode and Lock mode. Please select the gimbal mode you need in the WKDrone-ZHUN settings interface. Follow me mode Gimbal pointing move with aircraft Fig.12.0-2... -
Page 20: Preparation Before Fire Fighting
ZHUN Quick Start Guide Walkera All Rights Reserved 13.0 Preparation before fire fighting 13.1 Adjust the elevation of the launcher tube Fire extinguishing target distance and launching gun elevation angle comparison table. Target distance 5~6m Launcher 9° 4.5° 6° elevation angle It is recommended to adjust the elevation angle α... -
Page 21: Fire Fighting Operation
Tip: Before the operation, it is recommended to adjust the elevation angle of the launch tube to 4.5°. Set the automatic obstacle avoidance safety distance in the WKDrone-ZHUN interface to 5 meters, in order to hit the target more accurately, and turn on the auxiliary aiming laser switch to automatically avoid the obstacle switch. -
Page 22: Additional Remarks
ZHUN Quick Start Guide Walkera All Rights Reserved 16.0 Additional remarks 16.1. LADAR ranging and obstacle avoidance systems The LADAR ranging obstacle avoidance system uses the LADAR to detect the object directly in front of the aircraft to obtain the distance between the current aircraft and the object. -
Page 23: Compass Calibration
Be sure to switch off the aircraft power or lock motor before operation. Stick Mode Switch 1. Click the “ ” icon on the WKDrone-ZHUN interface, 2. Click on “Stick Mode” to enter the stick sode option then click “... -
Page 24: Aircraft Battery Safety Guidelines
2) Never use non-walkera batteries. Go to www. walkera.com to purchase new batteries. Walkera takes no responsibility for any damage caused by non-walkera batteries. 3) Never use or charge swollen, leaky, or damaged batteries. If your batteries are abnormal, contact Walkera or a walkera authorized dealer for further assistance. - Page 26 Manufacturer: Guangzhou Walkera Technology Co.,Ltd. Add: No.48 Wantai Rd, Taishi Industrial Park, Dongchong Town, Nansha Dist, Guangzhou, China.511453 Hotline: +86 20-84915115 This manual is subject to update without prior written notice. Please refer to Walkera official website for latest version.
