INSTALLATION GUIDE
INLINE CENTRIFUGAL FAN
VKP PS 125
Pencil
MOUNTING

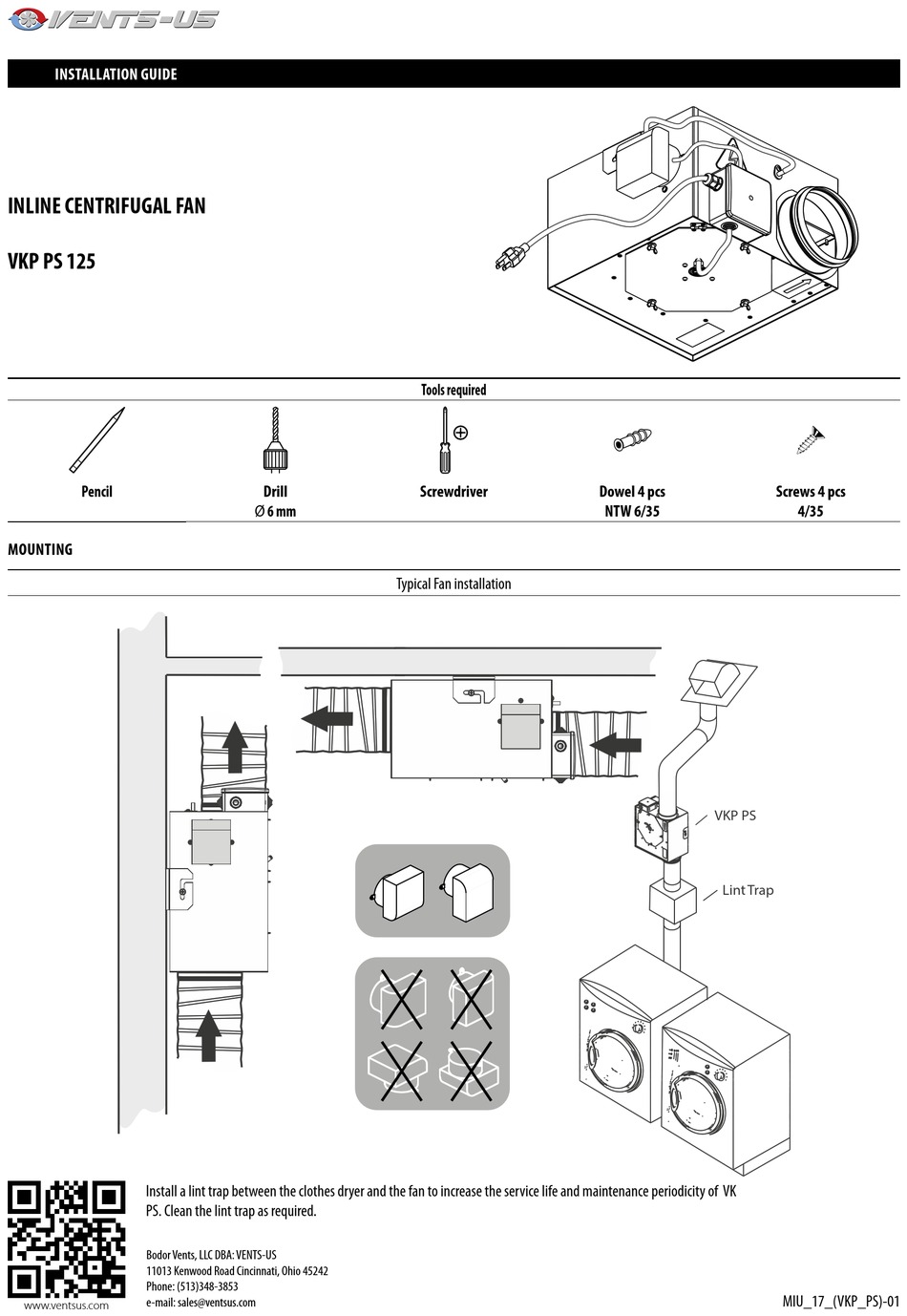

Install a lint trap between the clothes dryer and the fan to increase the service life and maintenance periodicity of VK
PS. Clean the lint trap as required.
Bodor Vents, LLC DBA: VENTS-US
11013 Kenwood Road Cincinnati, Ohio 45242
Phone: (513)348-3853
e-mail: sales@ventsus.com
www.ventsus.com
Tools required
Drill
Screwdriver
Ø 6 mm
Typical Fan installation
Dowel 4 pcs
NTW 6/35
VKP PS
Lint Trap
Screws 4 pcs
4/35
MIU_17_(VKP_PS)-01
Advertisement
Table of Contents
Related Manuals for Vents-us VKP PS 125
Summary of Contents for Vents-us VKP PS 125
- Page 1 Install a lint trap between the clothes dryer and the fan to increase the service life and maintenance periodicity of VK PS. Clean the lint trap as required. Bodor Vents, LLC DBA: VENTS-US 11013 Kenwood Road Cincinnati, Ohio 45242 Phone: (513)348-3853 MIU_17_(VKP_PS)-01 e-mail: sales@ventsus.com...
- Page 2 The process of fan mounting with the use of a bracket together with four screws and dowels is shown in Fig. 1-4. 1. Mark fastening holes 2. Drill fastening holes 3. Install the casing on the mounting bracket 4. Tighten the screws Bodor Vents, LLC DBA: VENTS-US 11013 Kenwood Road Cincinnati, Ohio 45242 Phone: (513)348-3853 MIU_17_(VKP_PS)-01 e-mail: sales@ventsus.com...
- Page 3 The process of ventilation stack installation is shown in Fig. 5-6. Air flow direction should match the direction of an arrowhead placed on the fan case 5. Connect air ducts 6. Fix air ducts with clamps Bodor Vents, LLC DBA: VENTS-US 11013 Kenwood Road Cincinnati, Ohio 45242 Phone: (513)348-3853 MIU_17_(VKP_PS)-01 e-mail: sales@ventsus.com...
- Page 4 Fan connection Bodor Vents, LLC DBA: VENTS-US 11013 Kenwood Road Cincinnati, Ohio 45242 Phone: (513)348-3853 MIU_17_(VKP_PS)-01 e-mail: sales@ventsus.com www.ventsus.com...
