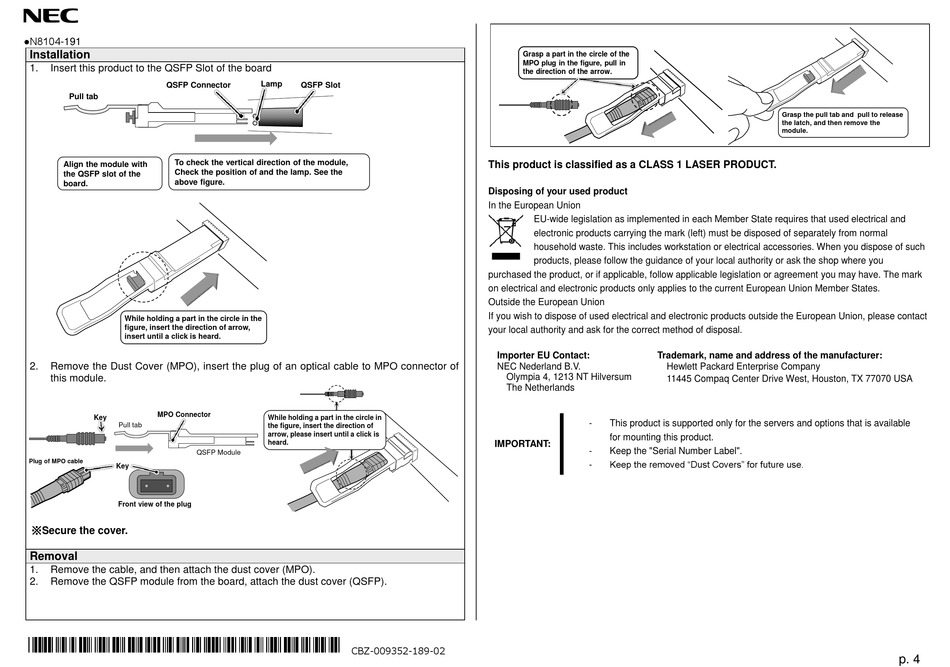

●N8104-191
Installation
1.
Insert this product to the QSFP Slot of the board
QSFP Connector
Pull tab
To check the vertical direction of the module,
Align the module with
Check the position of and the lamp. See the
the QSFP slot of the
above figure.
board.
While holding a part in the circle in the
figure, insert the direction of arrow,
insert until a click is heard.
2.
Remove the Dust Cover (MPO), insert the plug of an optical cable to MPO connector of
this module.
MPO Connector
Key
Pull tab
QSFP Module
Plug of MPO cable
Key
Front view of the plug
※Secure the cover.
Removal
1.
Remove the cable, and then attach the dust cover (MPO).
2.
Remove the QSFP module from the board, attach the dust cover (QSFP).
Lamp
QSFP Slot
While holding a part in the circle in
the figure, insert the direction of
arrow, please insert until a click is
heard.
CBZ-009352-189-02
Grasp a part in the circle of the
MPO plug in the figure, pull in
the direction of the arrow.
This product is classified as a CLASS 1 LASER PRODUCT.
Disposing of your used product
In the European Union
EU-wide legislation as implemented in each Member State requires that used electrical and
electronic products carrying the mark (left) must be disposed of separately from normal
household waste. This includes workstation or electrical accessories. When you dispose of such
products, please follow the guidance of your local authority or ask the shop where you
purchased the product, or if applicable, follow applicable legislation or agreement you may have. The mark
on electrical and electronic products only applies to the current European Union Member States.
Outside the European Union
If you wish to dispose of used electrical and electronic products outside the European Union, please contact
your local authority and ask for the correct method of disposal.
Importer EU Contact:
Trademark, name and address of the manufacturer:
NEC Nederland B.V.
Hewlett Packard Enterprise Company
Olympia 4, 1213 NT Hilversum
11445 Compaq Center Drive West, Houston, TX 77070 USA
The Netherlands
-
This product is supported only for the servers and options that is available
for mounting this product.
IMPORTANT:
-
Keep the "Serial Number Label".
Keep the removed "Dust Covers" for future use.
-
Grasp the pull tab and pull to release
the latch, and then remove the
module.
