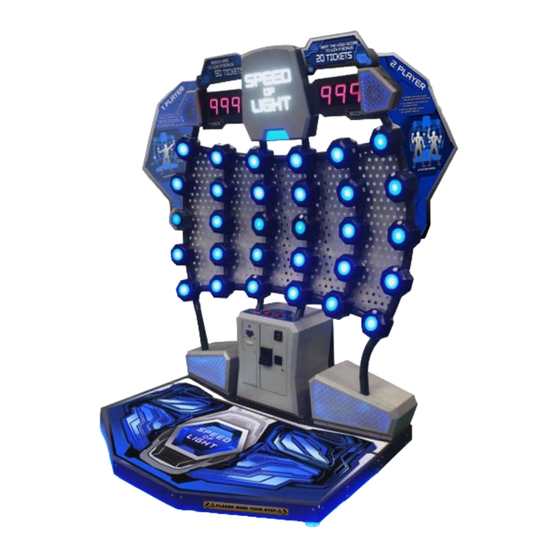

LAI Games Speed Of Light Operator's Manual

Hide thumbs Also See for Speed Of Light:

Operator's manual (43 pages)

Table Of Contents

Table of Contents

Quick Links

PLEASE NOTE:

► Read this manual BEFORE operating the machine.

► Keep this manual for your reference.

www.LAIGames.com

►Go to

click on Support to register your

games and receive of future updates.

Table of Contents

Troubleshooting

Need help?

Do you have a question about the Speed Of Light and is the answer not in the manual?

Questions and answers

Summary of Contents for LAI Games Speed Of Light

Page 1 PLEASE NOTE: ► Read this manual BEFORE operating the machine. ► Keep this manual for your reference. www.LAIGames.com ►Go to click on Support to register your games and receive of future updates. © LAI Games...
Page 2 LAI Games Correspondence regarding this machine should be addressed to your closest LAI Games office, or LAI Games Distributor. For contact details, refer to the back page of this manual. © LAI Games Copyright Notice: Authorization is hereby provided to you to copy this...
Page 3 Operator's Manual – Speed Of Light LAI GAMES © LAI Games Notes Dear Customer, Keep up to date with new software updates or Service Bulletins for this game. Check our Website at www.laigames.com and click on Support, here you will find links to all the Bulletins and Software Updates to keep your game in top working order.
Page 4: Table Of Contents
Operator's Manual – Speed Of Light LAI GAMES © TABLE OF CONTENTS SAFETY PRECAUTIONS ......................1 MACHINE INSTALLATION INSPECTION ............2 INTRODUCTION ........................3 SPECIFICATIONS ......................4 ASSEMBLY THE HEADER ....................5 ASSEMBLY THE WING SIGN ..................6 ASSEMBLY THE PLATFORM ..................7 HOW TO PLAY ........................8 OPERATION ..........................9...
Page 5 LAI GAMES © MAINS VOLTAGE ADJUSTMENT ................38 COIN OPTIONS REFERENCE GUIDE ................39 TICKET DISPENSER REFERENCE GUIDE ..............40 EDGE CONNECTOR PINOUT ..................45 SPEED OF LIGHT MAIN WIRING DIAGRAM ............48 SPEED LIGHT MAIN WIRING 1 ................49 SPEED LIGHT CONTROL WIRING .................50 SPEED LIGHT CONTROL WIRING 1 ..............51...
Page 6: Safety Precautions
Operator's Manual – Speed Of Light LAI GAMES © SAFETY PRECAUTIONS The following safety precautions and advisories are used throughout this manual and are defined as follows. * WARNING! * Disregarding this text could result in serious injury. * CAUTION! * Disregarding this text could result in damage to the machine.
Page 7: Machine Installation And Inspection
© MACHINE INSTALLATION and INSPECTION When installing and inspecting “Speed of Light”, be very careful of the following points and pay attention to ensure that the players can enjoy the game safely.  Be sure to turn the power OFF before working on the machine.
Page 8: Introduction
© INTRODUCTION CONGRATULATIONS! On your purchase of “Speed of Light”, interactive game that will challenge player to move hands fast to try to turn off the illuminated light on the buttons as many as they can the many buttons pressed that much ticket they will get it is another great product from LAI GAMES.
Page 9: Specifications
Operator's Manual – Speed Of Light LAI GAMES © SPECIFICATIONS DIMENSIONS  Weight: 240 kg ( 529 lb)  Height: 1870 mm (73.6”)  Width: 2000 mm (78.7”)  Length: 1640 mm (65”) 228 W – (220V @1.4 A)(120V @ 2.8A) ...
Page 10: Assembly The Header
Operator's Manual – Speed Of Light LAI GAMES © ASSEMBLY THE HEADER Position the header on top and secure with the 8 hex Bolt supplied, make sure to connect the speaker and LED connector from inside of the header. Page 5...
Page 12: Assembly The Platform
Operator's Manual – Speed Of Light LAI GAMES © ASSEMBLY THE PLATFORM The cabinet will arrive with the Platform folded with the cabinet; position the Platform as per No 1 drawing No 1. Push the platform to the cabinet with two metal bar in front insert...
Page 13: How To Play
Operator's Manual – Speed Of Light LAI GAMES © HOW TO PLAY PLAYERS AIM TO TURN OFF THE LIGHT BY PRESSING THE BUTTON AS MUCH AS THEY CAN  Pay to play.  Press the start button to play.  Press the illuminate button to get the point.
Page 14: Operation
(Refer to programmable adjustment page of this manual). PLAY MODE  The “Speed of Light” has two play modes. The Standard Coin Play mode, where a coin, or coins are inserted. Or Free Play where no coins are necessary. COIN PLAY ...
Page 15: Test Mode
© TEST MODE The “Speed of Light” Test mode has Three Test Configurations allowing you to explore the functioning of the Sound, Light & Display, and the Game Switches and to allow an operational test. (Refer to the Test Mode Diagram below).
Page 16: Sound, Lamps & Display Test
Operator's Manual – Speed Of Light LAI GAMES © SOUND, LAMPS & DISPLAY TEST ENTER The Sound, Lamp & Display test is entered from Attract mode by  pressing the test button once. * NOTE! *  If there is an active error displayed, press the red test button once to try and clear the error.
Page 17 Operator's Manual – Speed Of Light LAI GAMES ©  TICKET DISPENSER NOTCH The Ticket Notch Switch (C1) can be activated or deactivated from the Ticket Feed Button on the Ticket Dispenser PCB or by manually pushing the tickets from...
Page 18: Programmable Adjustments Quick Reference Table V1.5.2
Operator's Manual – Speed Of Light LAI GAMES © PROGRAMMABLE ADJUSTMENTS QUICK REFERENCE TABLE V1.5.2 PROGRAMMABLE DEFAULT CODE OPTIONAL VALUES FEATURES ADJUSTMENTS SETTINGS 1 – 20 1, 2, 3…20, Free Coin 1 – Coins / Credit 1 – 10 1, 2, 3…10 Coin 1 –...
Page 19: Programmable Adjustments Detailed
Operator's Manual – Speed Of Light LAI GAMES © PROGRAMMABLE ADJUSTMENTS DETAILED  P01 = COIN 1: NUMBER of COINS PER CREDIT (Default 01) (Adjustable 1 – 20, Free) This sets the number of coins that need to be inserted into coin mechanism one, for each credit.
Page 20 Operator's Manual – Speed Of Light LAI GAMES ©  P03 - 2 = COIN 1: NUMBER of BONUS CREDITS GIVEN AT BONUS LEVEL 1 (Default OFF) (Adjustable OFF – 99) This sets the number of bonus credits that are given when credit Level 1 is reached.
Page 21 Operator's Manual – Speed Of Light LAI GAMES ©  P04 = COIN 2: NUMBER of COINS PER CREDIT (Default 01) (Adjustable 1 – 20) This sets the number of coins that need to be inserted into coin mechanism 2, for each credit.
Page 22 Operator's Manual – Speed Of Light LAI GAMES ©  P06 - 4 = COIN 2: NUMBER of BONUS CREDITS GIVEN AT BONUS LEVEL 2 (Default OFF) (Adjustable OFF – 99) This sets the number of bonus credits that are given when credit Level 2 is reached.
Page 23 Operator's Manual – Speed Of Light LAI GAMES ©  P10 = THE HIGH SCORE 999 BONUS TYPE (Default 2) (Adjustable 0 – 2) This option adjusts The high score 999 bonus type paid out. 3. None 4. Free Credit ( 1 – 10) 5.
Page 24 Operator's Manual – Speed Of Light LAI GAMES ©  P17 = CURRENT HIGH SCORE ADJUSTMENT (Default 500) (Adjustable 10 – 500) This option control the Current High Score Adjustment that will be show on the top display, when the machine start up this value will show the value can be change from 10 –...
Page 25 Operator's Manual – Speed Of Light LAI GAMES © P23 = DOUBLE PLAYER – ONE CREDIT  (Default OFF) (Adjustable ON or OFF) This allows the two-player mode with one credit.  P24 = CARD SYSTEM (Default OFF) (Adjustable ON or OFF) This allows splitting of the coin inputs for 2 player games, allowing the winner of a 2-player game to be credited their winnings.
Page 26: Audits Mode
While in this mode, the game audits can also be reset to zero. The Speed of Light has Twenty Four Audits that can be viewed in this mode. They are A01 to A24 and their codes and values are displayed alternatively during the Audit Mode.
Page 27: Audit Procedure
Operator's Manual – Speed Of Light LAI GAMES © AUDIT PROCEDURE  ENTER The Audits mode is entered from Programmable Adjustments mode by pressing the Test button once or from Attract mode by pressing the Test button five times. A A A A will be displayed on the 4-digit display.
Page 28: Audits Quick Reference Table
Operator's Manual – Speed Of Light LAI GAMES © AUDITS QUICK REFERENCE TABLE CODE DISPLAY AUDIT FUNCTION Total Current Played Game A - 0 1 Total Current 1Player Played Game A - 0 2 Total Current 2 Player Played Game...
Page 29: Audits Detailed
Operator's Manual – Speed Of Light LAI GAMES © AUDITS DETAILED  A01 = TOTAL CURRENT PLAYED GAME This Audit displays the total number of current played game since the audits were last cleared.  A02 = TOTAL CURRENT 2 PLAYER GAME This Audit displays the total Current 2 player game since the audits were last cleared.
Page 30 A19 to A40 = MANUFACTURE AUDITS ONLY These are Un resettable audit for Manufacture only. * NOTE! *  LAI Games Customer Support may request from the operator the values of these Manufacturers audits, to help with any service issues. Page 25...
Page 31: Game History Mode
Operator's Manual – Speed Of Light LAI GAMES © GAME HISTORY MODE By using the Game History Mode the operator can view the results of the last 10 games played. This enables the operator to verify players game results and verify the win / lose pattern on the LED Playfield Display.
Page 32: Game History Procedure
Operator's Manual – Speed Of Light LAI GAMES © GAME HISTORY PROCEDURE  ENTER The Game History mode is entered from Audits mode by pressing the Test button once or from Attract mode by pressing the Test button six times.
Page 33: Errors And Troubleshooting
Operator's Manual – Speed Of Light LAI GAMES © ERRORS AND TROUBLESHOOTING If the game microprocessor detects any problems with the operation of the game, an Error will be displayed on the 4-digit display and the machine will play a voice message.
Page 34: Troubleshooting Game Errors
EEPROM, If still Error massage, this could be a problems with the game audits and program. If this error occurs, send your main MCU PCB to the nearest authorized LAI games dealer for repair.  Err4 – PLAYFIELD BUTTON ERROR This error is usually displayed if one or more button jam or button switch faulty.
Page 35: Section A: Service Instructions
Operator's Manual – Speed Of Light LAI GAMES © SECTION A: SERVICE INSTRUCTIONS BE SURE TO READ THE FOLLOWING Carefully before servicing this machine Page 30...
Page 36: Locating And Accessing Parts
Operator's Manual – Speed Of Light LAI GAMES © LOCATING AND ACCESSING PARTS 3” Speaker BAFB45 4” Display Start Button 4 Digit Credit display Ticket indicator Coin Cradle Ticket Dispenser Cash Box Page 31...
Page 37: Electronic Detail Position
Operator's Manual – Speed Of Light LAI GAMES © ELECTRONIC DETAIL POSITION BAFB66A BAFB152 BAFB162 BAFB106 BAFB53 1A Toroid S-150-12 Transformer 12 VDC Fuses Page 32...
Page 38: Parts Description
Operator's Manual – Speed Of Light LAI GAMES © PARTS DESCRIPTION  COIN MECHANISMS The coin mechanisms can be accessed inside the Coin door, at the front-right of the machine cabinet.  CASH BOX The cash box is located inside the coin door on the front of the machine cabinet.
Page 39 Operator's Manual – Speed Of Light LAI GAMES ©  POWER CORD The power cord is a standard IEC power cord (as used on computers), that is plugged in to the power inlet socket at the rear of the machine. The power cord can be removed for transport.
Page 40: Lamps
Operator's Manual – Speed Of Light LAI GAMES © LAMPS * WARNING! * Always turn OFF Mains power and unplugged the game, before replacing any lamps. Always allow time for cooling as Lamps that have been active for a time may still be too hot to touch.
Page 41: Maintenance
Operator's Manual – Speed Of Light LAI GAMES © MAINTENANCE CLEANING AND CHECK UP EXTERIOR Regularly dust and clean the external cabinet areas as required, using a soft water- damp cloth and mild soap. Check for blown bulbs and replace as required.
Page 42: Section B: Technical Details
Operator's Manual – Speed Of Light LAI GAMES © SECTION B: TECHNICAL DETAILS It is advised that anybody using SECTION B for repairing or modifying any of the components of the game should be a qualified technician, having at least a basic knowledge of digital components, integrated circuits and electricity.
Page 43: Mains Voltage Adjustment
Operator's Manual – Speed Of Light LAI GAMES © MAINS VOLTAGE ADJUSTMENT POWER SUPPLY The Switch Mode Power Supply has a switch to set the mains voltage range. It is located at the rear of the game cabinet, and is accessed via the back door. Use a thin...
Page 44: Coin Options Reference Guide
© COIN OPTIONS REFERENCE GUIDE LAI Games have installed on the coin door is a 9 way Molex connector. This connector can be used for most electronic coin systems and comparators. Please see below picture to understand the connection setup,...
Page 45: Ticket Dispenser Reference Guide
Operator's Manual – Speed Of Light LAI GAMES © TICKET DISPENSER REFERENCE GUIDE Page 40...
Page 50: Edge Connector Pinout
Operator's Manual – Speed Of Light LAI GAMES © EDGE CONNECTOR PINOUT COMPONENTS SIDE SOLDER SIDE GND 1 A GND GND 2 B GND +12VDC 3 C +12V +12VDC 4 D +12V P1A7 5 E P1B7 Test button P1A6 6 F P1B6 Service button...
Page 51 Operator's Manual – Speed Of Light LAI GAMES © BAFB152 OUTPUT LIST J1 ( JST 8 Way) 1. +12V 2. - 3. GND 4. - 5. Data 1 6. Data 2 7. Data 3 8. Clock JP1. ( 4 Way JST ) 1.
Page 52 Operator's Manual – Speed Of Light LAI GAMES © J5. ( 16 Way Mini Fit Connector ) Description Description Out Button 29 Out Button 30 +12V Out +12V Out Page 47...
Page 53: Speed Of Light Main Wiring Diagram
Operator's Manual – Speed Of Light LAI GAMES © SPEED OF LIGHT MAIN WIRING DIAGRAM Page 48...
Page 54: Speed Of Light Main Wiring 1
Operator's Manual – Speed Of Light LAI GAMES © SPEED of LIGHT MAIN WIRING 1 Page 49...
Page 55: Speed Of Light Control Wiring
Operator's Manual – Speed Of Light LAI GAMES © SPEED of LIGHT CONTROL WIRING Page 50...
Page 56: Speed Of Light Control Wiring 1
Operator's Manual – Speed Of Light LAI GAMES © SPEED of LIGHT CONTROL WIRING 1 Page 51...
Page 57: Speed Of Light Control Wiring 2
Operator's Manual – Speed Of Light LAI GAMES © SPEED of LIGHT CONTROL WIRING 2 Page 52...
Page 58: Speed Of Light Optional Wiring
Operator's Manual – Speed Of Light LAI GAMES © SPEED of LIGHT OPTIONAL WIRING Page 53...
Page 59: Speed Of Light Power Wiring
Operator's Manual – Speed Of Light LAI GAMES © SPEED of LIGHT POWER WIRING Page 54...
Page 60 (c) Any tampering with, changes to, or modifications of the licensed software that occur after the software leaves LAI GAMES factory that is not made by authorized LAI GAMES personnel and that is directly or indirectly caused by Operator;...
Page 61 LAI Games warrants its manufactured products for a period of 3 months inclusive of parts and labor from the date of sale. LAI Games exclusive obligation is to repair any item with any defects as a result of faulty workmanship or materials, providing the defective item or items of equipment are returned to the LAI GAMES distributor from which the machine was purchased.
Page 62 INTERNATIONAL SALES & SERVICE Sales/Enquiries: sales@laigames.com Tech. Support: support@mleisure.co.id Website: www.laigames.com For your nearest LAI Games Distributor visit our web site at http://www.laigames.com...
