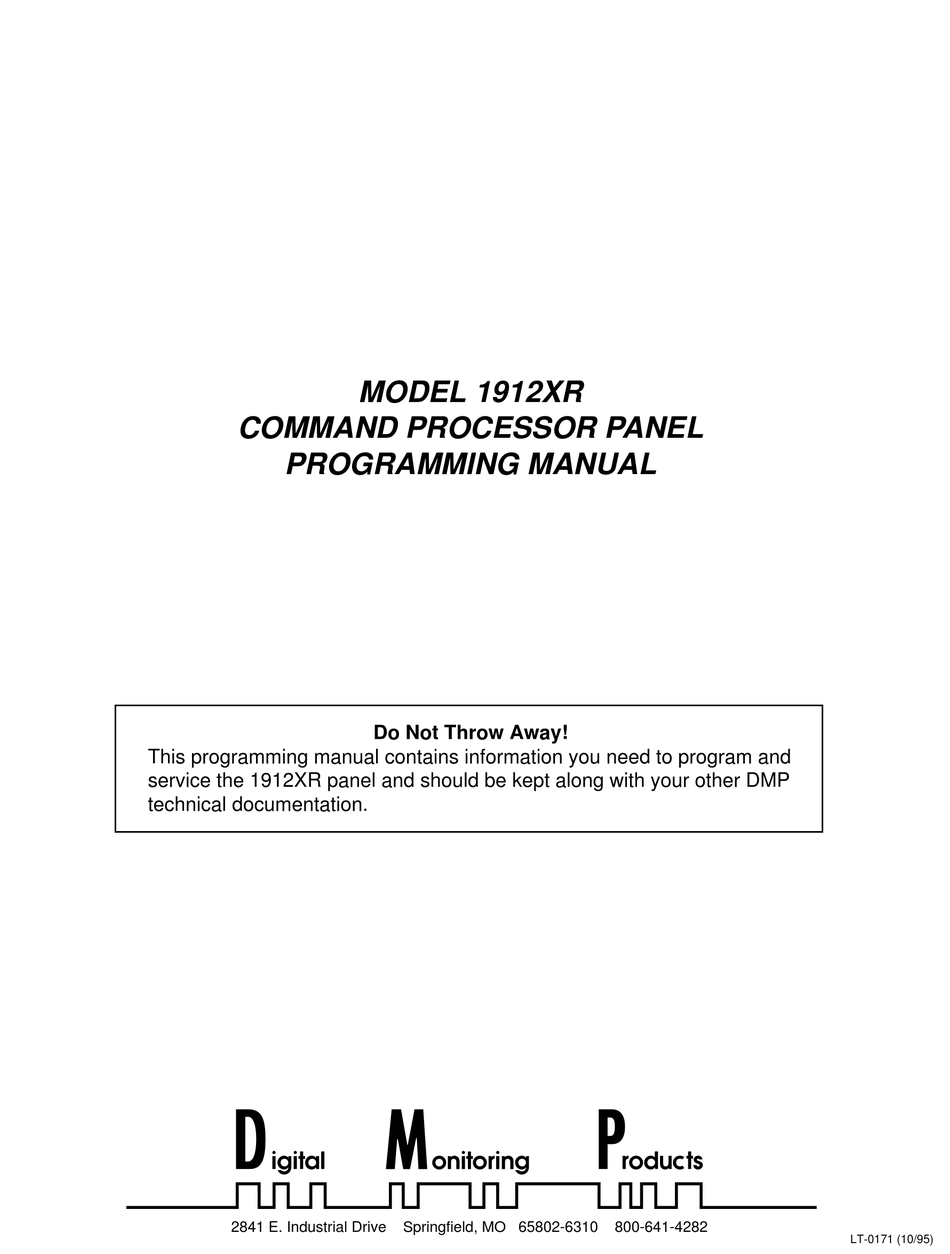

MODEL 1912XR
COMMAND PROCESSOR PANEL
PROGRAMMING MANUAL
Do Not Throw Away!
This programming manual contains information you need to program and
service the 1912XR panel and should be kept along with your other DMP
technical documentation.
123
2841 E. Industrial Drive
Springfield, MO 65802-6310
800-641-4282
LT-0171 (10/95)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1912XR and is the answer not in the manual?

Questions and answers

Related Manuals for Digital Monitoring Products 1912XR

Summary of Contents for Digital Monitoring Products 1912XR

  • Page 1 COMMAND PROCESSOR PANEL PROGRAMMING MANUAL Do Not Throw Away! This programming manual contains information you need to program and service the 1912XR panel and should be kept along with your other DMP technical documentation. 2841 E. Industrial Drive Springfield, MO 65802-6310...
  • Page 2 MODEL 1912XR PROGRAMMING MANUAL When using the Series 1912XR control for any UL, NFPA, CSFM, or other listing organization's approved methods, refer to this manual and the 1912XR Installation Guide (LT-0169). These documents outline the installation and programming requirements of all applications for which the 1912XR is approved.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Section INTRODUCTION Before You Begin .................... 1.1 Getting Started ....................1.2 Programmer Operation ..................1.3 Programmer Access Codes ................1.4 Reset Timeout ....................1.5 Special Keys ....................1.6 Entering Alpha Characters ................1.7 Entering Spaces with Alpha Characters ............1.8 Keypad Prompts Display Curent Programming ..........
  • Page 4 TABLE OF CONTENTS Section REMOTE OPTIONS continued Service Receiver Authorization ............... 5.7 Remote Phone Number ................... 5.8 Remote Disarm ....................5.9 SYSTEM REPORTS System Reports ....................6.1 Abort Reports ....................6.2 Bypass Reports ....................6.3 Schedule Change Reports ................6.4 Code Change Reports ..................
  • Page 5 TABLE OF CONTENTS Section STATUS LIST Status List ...................... 10.1 Display Keypads .................... 10.2 System Monitor Troubles ................10.3 Fire Loops ...................... 10.4 Burglary Loops ....................10.5 Supervisory Loops ..................10.6 Panic Loops ....................10.7 Emergency Loops ..................10.8 Auxiliary 1 Loops ................... 10.9 Auxiliary 2 Loops ...................
  • Page 6 TABLE OF CONTENTS Section LOOP INFORMATION continued Output Number ..................13.8B Output Action ..................13.8C Swinger Bypass ..................... 13.9 Fast Response ....................13.10 Restoral ......................13.11 Cross Zone ....................13.12 Priority ......................13.13 Setup Loop Expanders .................. 13.14 Program Transmitter ................13.14A Connect Transmitter ................

  • Page 7: Before You Begin

    After this Introduction, the remaining sections describe the functions of each programming menu item along with the available options. The 1912XR contains all of its programming information in an on board processor and does not require an external programmer. After resetting the panel from jumper J16, you can perform all programming tasks through any DMP alphanumeric keypad connected to the system.

  • Page 8: Programmer Operation

    4. Press COMMAND. 5. The keypad displays: PROGRAMMER. You are now ready to start programming the 1912XR panel. Pressing the COMMAND key scrolls you through the programming functions listed in section 1.3. Each of these functions are described in detail in sections 2 to 15 of this manual.

  • Page 9: Programmer Access Codes

    2 to 15 of this manual. Programmer Access Codes The 1912XR panel allows you to enter the programming function without a code using the steps 1 to 5 listed in section 1.2. We recommend, however, that you install an Access Code that restricts programming to only those persons your company authorizes.

  • Page 10: Special Keys

    The SELECT keys are also used for selecting a section from the programming menu. This is done by pressing any one of the SELECT keys when the name of the programming section you want is displayed. Digital Monitoring Products, Inc. 1912XR Programming Page 4...

  • Page 11: Entering Alpha Characters

    Press the number(s) on the keypad you want to enter as the new number for that prompt. It is not necessary to enter numbers with leading or trailing zeros. The 1912XR automatically right justifies the number when you press the COMMAND key.

  • Page 12: Initialization

    SET TO FACTORY DEFAULTS - YES sets the panel's programming back to the DEFAULTS NO YES factory default selections. Selecting Factory Defaults does not clear the panel's Event Memory or user codes. SURE? Digital Monitoring Products, Inc. 1912XR Programming Page 6...

  • Page 13: Communication

    C I D rules. This option requires the use of the 862 Network Interface Card. You can also use the backup dialer capability of the 1912XR by selecting the option 2ND LINE as YES. See section 3.3. You cannot select DNET if you are using the 872 H ™...

  • Page 14: Existing Printer

    2. Line 1 Trouble in sent only once during each armed period. Area code selection for cellular communication: Version 1912XR/112 firmware allows you to enter a letter "C" in the first or second phone number in the panel's Communication section of the Programmer.

  • Page 15: Account Number

    Choose one day of the week or all days. 3.11 Allows you to set the options for the first receiver the 1912XR panel attempts to RECEIVER 1 PRGMG contact when sending reports. The panel supports two receivers.

  • Page 16: Backup Reporting

    If it does, the panel waits for nine seconds after having dialed the First Phone Number before sending the Pager ID. After the Pager ID has been transmitted, the panel waits another three seconds before sending the actual pager message containing the panel reports. Digital Monitoring Products, Inc. 1912XR Programming Page 10...

  • Page 17: Device Setup

    COMMAND. Changing the number of partitions resets user codes: Whenever you change the number of partitions on the 1912XR, all programmed user codes are cleared. The only code available after a partition change is the factory default of 99.

  • Page 18: Remote Options

    If an alarm occurs during a remote connect, the alarm report is immediately sent to this receiver only. When NO is selected, remote commands and programming are not accepted from the alarm SCS-1 Receiver. Digital Monitoring Products, Inc. 1912XR Programming Page 12...

  • Page 19: Remote Options

    15 digits in length. Enter a D for dial tone detect and a P for a 3 second pause. Important: Do not program any letters other than P or D. DISARM REMOTE DISARM - Enter YES to enable the panel to be disarmed remotely. Selecting NO disables remote disarming. Digital Monitoring Products, Inc. 1912XR Programming Page 13...

  • Page 20: System Reports

    6 -SYSTEM REPORTS This function allows you to select the reports the 1912XR sends to the SCS-1 SYSTEM REPORTS Receiver. ABORT REPORT - YES allows the panel to send an alarm abort report to the ABORT receiver any time an alarm report has also been sent and the bell is still sounding.

  • Page 21: System Options System Options

    This section allows you to select system wide parameters used in the operation of SYSTEM OPTIONS the 1912XR system. A description of each System Option follows: CLOSING WAIT - When YES, the keypad displays SYSTEM ON followed by CLS WAIT ONE MOMENT...

  • Page 22: Output Options Output Options

    Defines Bell Action for Auxiliary 2 Type Loops OUTPUT ACTION . . . This option allows you to define the operation of the 1912XR relay outputs. The panel provides two Form C relays (1 and 2) and four 12 VDC voltage outputs (3 to 6) rated at 50mA each.

  • Page 23: Fire Alarm Output

    Enter zero to disable this output. Any Output Option can be used with output numbers 1 through 6 and 100 through 199. Digital Monitoring Products, Inc. 1912XR Programming Page 17...

  • Page 24: Menu Display Menu Display

    TIME - Enter the keypad addresses that can display the time and day of the TIME DSP 12345678 week. ARM/DISARM - Enter the keypad addresses from which users can arm and ARM/DIS 12345678 disarm areas in a partition. Digital Monitoring Products, Inc. 1912XR Programming Page 18...

  • Page 25: Status List

    This ensures that if a burglary is in progress the last loop tripped remains in the list even if the loop has been restored. The keypad buzzer sounds for one second on burglary alarms. Digital Monitoring Products, Inc. 1912XR Programming Page 19...
  • Page 26 - - - - - - - - and troubles are displayed. The name of the loop remains in the list until the loop restores. The keypad buzzer does not sound for Auxiliary 2 alarms or troubles. Digital Monitoring Products, Inc. 1912XR Programming Page 20...

  • Page 27: Printer Reports

    The PRINT option is visible whether or not an 862P card is attached to the panel. Restrictions on using the 862P card The 862P card cannot be used on 1912XR panels using the 862N Network Interface Card or 872 H ™ Interface Card. Additionally, if you...

  • Page 28: Area Information Area Information

    PARTITION NUMBER - Enter the partition number to program. Partition 1 using PARTITION NO: area arming can have up to eight areas on the 1912XR panel. Partitions 2, 3, and 4 using area arming can each have up to four independent areas.

  • Page 29: Area Name

    ACCOUNT NUMBER - Enter the account number to be sent to the SCS-1 Receiver for this area. If the panel communicates in multiplex (MPX), you must choose account numbers in the multiplex range. See section 3.4 for additional information on communication types. Digital Monitoring Products, Inc. 1912XR Programming Page 23...

  • Page 30: Automatic Arming

    This area is armed when the last area in the partition is armed and is disarmed when the first area in the partition is disarmed. You can have multiple common areas in each partition. Digital Monitoring Products, Inc. 1912XR Programming Page 24...

  • Page 31: Loop Information

    If you select Fire, Panic, Emergency, or Supervisory as the Loop Type, it's a 24 hour loop that is always armed and no area assignment is needed. Press COMMAND to continue. Digital Monitoring Products, Inc. 1912XR Programming Page 25...

  • Page 32: Loop Type

    13-LOOP INFORMATION 13.4A LOOP TYPE SPECIFICATIONS The 1912XR panel contains 12 default loop types for use in configuring the system. These loop types provide the most commonly selected functions for their applications. All loop types except the Arming loop type can be customized by changing the variable options listed below.

  • Page 33: Area Number

    At the contact, install a 2.2k Ω End Of Line resistor in parallel for Normally Open contacts and in series for Normally Closed contacts. 13.6E NORMALLY OPEN - Select NO if the contact connected to the transmitter is a NRM OPEN Normally Closed type. Digital Monitoring Products, Inc. 1912XR Programming Page 27...

  • Page 34: Alarm Action

    Only the relay output selected in section 13.8B operates. 13.8B OUTPUT NUMBER - You can specify any of the Relay Outputs on the 1912XR OUTPUT NO: 0 to be activated by a loop condition. The output can be activated regardless of the report to transmit or whether or not the loop is programmed as local.

  • Page 35: Output Action

    Cross zoning is not compatible with all loop types: You cannot enable cross zoning for Fire verify loops or for any Fire loop type that has Retard Delay set to YES. Digital Monitoring Products, Inc. 1912XR Programming Page 29...

  • Page 36: Priority

    EXISTING PRINTER - This prompt informs you that one or more options in EXISTING PRINTER Printer Reports has been enabled. See section 11.1. You must remove any Printer Reports programming before using wireless loops on the system. Digital Monitoring Products, Inc. 1912XR Programming Page 30...

  • Page 37: Entry Delay: 1

    To disable a presignal address press the matching number digit again. Press the COMMAND key when the address selection is complete. The Presignal prompt is only displayed when Retard is selected as YES. Digital Monitoring Products, Inc. 1912XR Programming Page 31...

  • Page 38: Stop

    At the STOP prompt, pressing any SELECT key allows you to exit the STOP Programmer function of the 1912XR panel. When selected, the panel performs an internal reset and exits the programmer. The STOP routine causes the following conditions to occur: •...

  • Page 39: Set Access Code

    Do not set an Access Code higher than 65,535. Do not use the codes 6653, 2313, or any 3-digit code that begins with 98. All of these codes are reserved by the 1912XR panel for various functions. Digital Monitoring Products, Inc.

  • Page 40: Appendix

    66 events. When the buffer is filled, the panel automatically sends the stored reports to the central station receiver. Below is a list of 1912XR reports that can be delayed using the Events Manager option:...

  • Page 41: Diagnostics Function

    16.3 Diagnostics function The 1912XR panel contains a diagnostics function that allows you to conduct a test of the 881 Expansion Interface Card, individual loop locations, and the current state of any loop on the panel. From the Status List, enter in the diagnostics code of 2313 (DIAG) and press Command.
