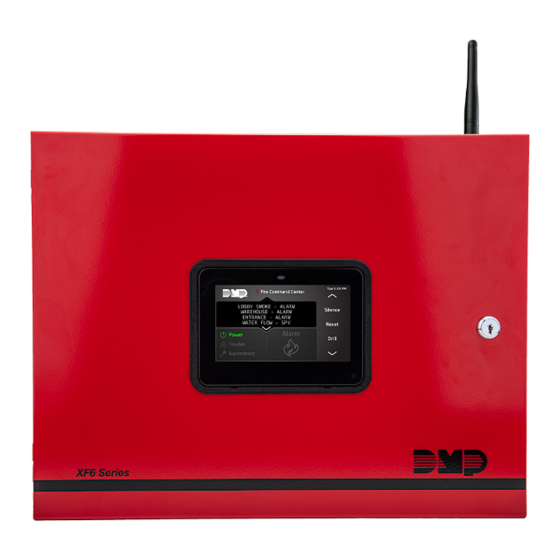

- Page 1 COMPLIANCE LISTING GUIDE XF6 Series DIGITAL MONITORING PRODUCTS, INC.
- Page 2 This booklet is available from the U.S. Government Printing Office, Washington D.C. 20402 Stock No. 004-000-00345-4 © 2023 Digital Monitoring Products, Inc. Information furnished by DMP is believed to be accurate and reliable. This information is subject to change without notice.
-
Page 3: Table Of Contents
Fire Protective Signaling Systems Using Power Requirements ........24 Internet/Intranet/Cell Networks ....12 Zone Type Descriptions ........26 Cellular Communication Failure Test Procedure ............13 Remote Programming ........13 Connecting Devices ........13 Cross Zoning ............13 Ground Fault ............13 XF6 Fire Control Panel Compliance Listing Guide Digital Monitoring Products... -
Page 4: Before You Begin
BEFORE YOU BEGIN This guide provides compliance information for the DMP XF6 Series Control Panels. After this Introduction, the remaining sections describe the functions along with the available options. Before starting, we recommend that you read through the contents of this guide. The information contained here allows you to quickly learn the operation, functionality, and programming options of the panel to meet specific applications. -
Page 5: Wiring Diagrams
LINK LED ACTIVITY LED 28 VAC 130 VA wire-in transformer Ethernet (Supervised) Maximum impedance is 100 Ohmns Maximum 12/24VDC output per circuit XF6 Series Panel LOAD (Cannot exceed 3.5 amps combined output) Outputs 3-6 FOR FUTURE USE Use Model 305 Relay... -
Page 6: 866 With Nac Extender
XF6 panel 431 harness Normal = Contacts Shorted Trouble = Contacts Open OUTPUT 2 OUTPUT 1 Gray (Common) wire from XF6 panel 431 harness to RED on keypad bus Digital Monitoring Products XF6 Fire Control Panel Compliance Listing Guide... -
Page 7: Lx-Bus™ Module Connection
LX-Bus™ Module Connection Ethernet XF6 Series Panel LOAD RESET Cell Module TAMPER BATT START XBUS OUTPUT 2 OUTPUT 1 12 VDC Connections PROG LX500 LX600 LX700 LX800 LX900 24 VDC Connections Each LX-Bus Module must have its own independent address ranging NAC1+ NAC1- NAC2+ NAC2- Z1+ from 00 to 99. -
Page 8: Model 860 Relay Module Connection
Model 860 Relay Module Connection Ethernet Model 860 XF6 Series Panel Relay Module LOAD Relay 1 Common 4-wire Relay 2 RESET Cell Module Harness TAMPER Assembly Relay 3 BATT START XBUS OUTPUT 2 OUTPUT 1 Relay 4 12 VDC Connections... -
Page 9: System Sensor 2-Wire Smoke
System Sensor 2-Wire Smoke Detectors Ethernet XF6 Series Panel LOAD RESET Cell Module BATT START TAMPER XBUS OUTPUT 2 OUTPUT 1 12 VDC Connections PROG LX500 LX600 LX800 LX700 LX900 24 VDC Connections NAC1+ NAC1- NAC2+ NAC2- Z1+ Red, Black, and Temporal must all be in conduit... -
Page 10: Detectors
To 716 Output Common (Gray) If using optional Power supply, program Output Options Fire Output for the 716 relay to provide Sensor Reset capability. *** Listed for Fire Applications, output limited power, regulated Digital Monitoring Products XF6 Fire Control Panel Compliance Listing Guide... -
Page 11: Module
Zone EOL IDC + Maint + IDC - Maint - CO Alarm + CO Alarm - Bell In Connect the Bell In terminal in parallel with a all COSMOD2W Interface Modules. XF6 Fire Control Panel Compliance Listing Guide Digital Monitoring Products... -
Page 12: Control Units For Fire-Protective
Checkin Min = 238 Checkin Min = 238 Fail Min = 240 Fail Min = 240 Send Comm Trbl = Yes Send Comm Trbl = Yes *Device Setup must have a Fire Device Digital Monitoring Products XF6 Fire Control Panel Compliance Listing Guide... -
Page 13: Procedure
List is displayed. The panel will not allow remote programming without entering the lockout code. See LT-2777 XF6 Series Installation and Programming Guide, Set Lockout Code for instructions. After entering the lockout code, remote programming must start within 30 minutes. -
Page 14: Programming Requirements
Communication The Account Number is a 1- 5 digit number. The range of valid account numbers for a panel ACCOUNT NUMBER is 1 to 65535. Do not enter leading zeros. Digital Monitoring Products XF6 Fire Control Panel Compliance Listing Guide... - Page 15 This option displays only if NET is chosen for the Entré connection. Enter the IP backup ENTRÉ BACKUP IP ADDRESS address where the panel sends network messages if the first Entré IP Address fails. XF6 Fire Control Panel Compliance Listing Guide Digital Monitoring Products...
- Page 16 If the cross zone time expires without the second zone faulting, only a zone fault from the first zone is reported. Digital Monitoring Products XF6 Fire Control Panel Compliance Listing Guide...
- Page 17 Enter 0 (zero) to disable. When BELL ACTION is set to T for Temporal Code 3, the Bell Output action for an LX-Bus output is pulse. XF6 Fire Control Panel Compliance Listing Guide Digital Monitoring Products...
- Page 18 When you assign a Zone Type to a zone, automatic zone responses are made. There are 4 ZONE TYPE Zone Types to choose from: Fire, Fire Verify, Supervisory, or Carbon Monoxide (CO). Digital Monitoring Products XF6 Fire Control Panel Compliance Listing Guide...
- Page 19 If NO, this zone will operate as a standard fire type zone and a sensor reset is required before the zone will return to normal. Default is NO. XF6 Fire Control Panel Compliance Listing Guide Digital Monitoring Products...
-
Page 20: Testing/Maintenance
WLS option of the panel’s Walk Test must be operated and all transmitters programmed for Fire (FI) or Supervisory (SV) must show that their checkin message was received. BATTERY REPLACEMENT PERIOD DMP recommends replacing the battery every 3 to 5 years under normal use. Digital Monitoring Products XF6 Fire Control Panel Compliance Listing Guide... -
Page 21: Compatibility
715-16 (*) = Must be used in conjunction with System Sensor Polarity Reversal Module model RRS-M0D. NOTIFICATION APPLIANCES The following table indicates the approved notification appliances that can be used with the XF6 Series system. Wheelock Model No. Description Max No. of Appliances per NAC Circuit... -
Page 22: Accessory Devices
2-wire or 4-wire style circuits for opens and shorts with individual LED annunciation. 866 Class B Notification Circuit Provides supervised alarm current using the XF6 Series panel bell output and up to 5 Amps Module at 12 or 24 VDC when using a listed auxiliary power supply. The 866 can supervise 2-wire Class B circuits for opens and shorts. -
Page 23: System Configurations
Wireless Receiver 1100R Wireless Receiver 1103 Wireless Transmitter 1164 Wireless Commercial Smoke 1168 Wireless Smoke/CO/Low Temp 1183-135F/1183/135R Wireless Heat Detector 1184 Wireless CO (-) - At least one model required XF6 Fire Control Panel Compliance Listing Guide Digital Monitoring Products... -
Page 24: System Power/Size
POWER REQUIREMENTS During AC power failure, the XF6 Series panel and all connected auxiliary devices draw their power from the battery. All devices must be taken into consideration when calculating the battery standby capacity. The following table lists the XF6 Series panel power requirements. You must add the additional current draw of keypads, zone expansion modules, smoke detector output, and any other auxiliary devices used in the system for the total current required. - Page 25 Standby Battery Power Calculations Standby Current Alarm Current XF6 Series Fire Control Panel 90 mA ______mA 102 mA ______mA Fire Command Keypad Qty _______ 84 mA ______ Qty _______ 108 mA ______ Relay Outputs (ON) Qty _______ 3 mA ______...
-
Page 26: Zone Type Descriptions
For listed installations, batteries can be installed in a DMP Model 349, 350 or 352S enclosure and all wiring shall run through conduit. The enclosure shall be installed to the left of the XF6 Series enclosure to ensure Battery and Auxiliary wire separation. - Page 27 A C C E S S N E T W O R K manufactured using U.S. and global 2500 North Partnership Boulevard components in Springfield, MO. Springfield, Missouri 65803-8877 © 2023 Digital Monitoring Products, Inc. 888.436.7832 | DMP.com LT-2779 1.01 23505...
