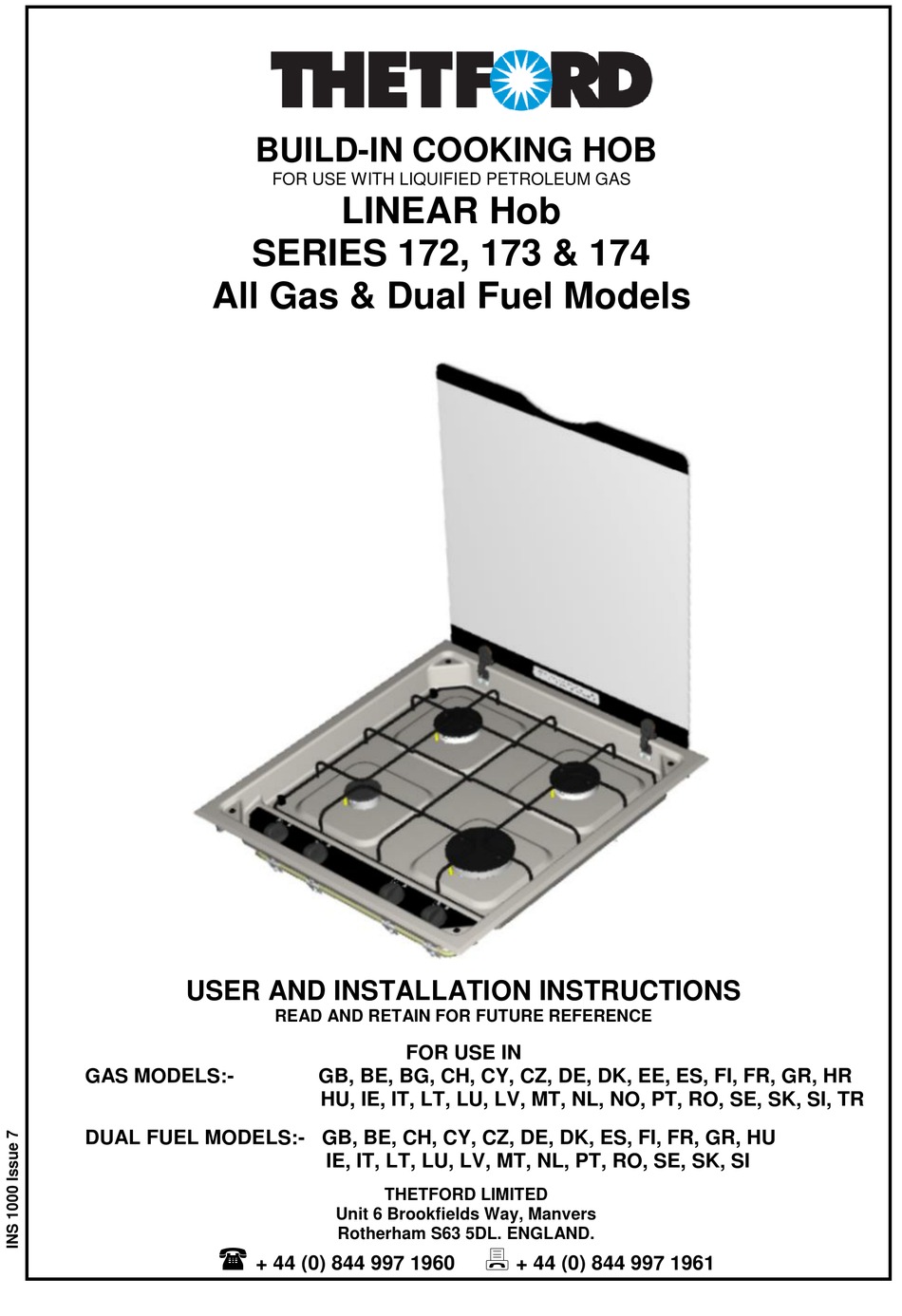

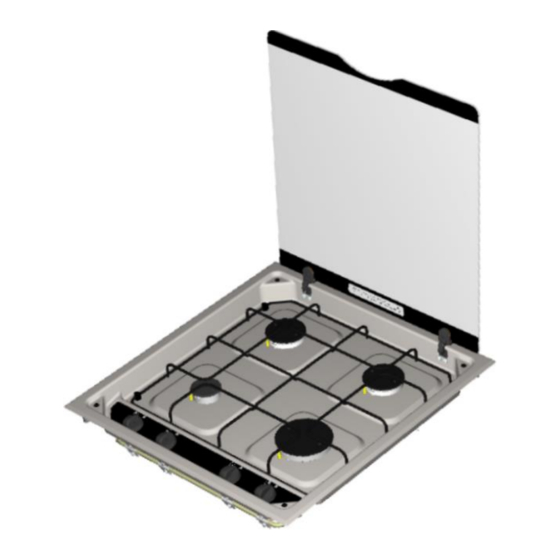

SERIES 172, 173 & 174
All Gas & Dual Fuel Models
USER AND INSTALLATION INSTRUCTIONS
GAS MODELS:-
DUAL FUEL MODELS:- GB, BE, CH, CY, CZ, DE, DK, ES, FI, FR, GR, HU
BUILD-IN COOKING HOB
FOR USE WITH LIQUIFIED PETROLEUM GAS
LINEAR Hob
READ AND RETAIN FOR FUTURE REFERENCE
FOR USE IN
GB, BE, BG, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GR, HR
HU, IE, IT, LT, LU, LV, MT, NL, NO, PT, RO, SE, SK, SI, TR
IE, IT, LT, LU, LV, MT, NL, PT, RO, SE, SK, SI
THETFORD LIMITED
Unit 6 Brookfields Way, Manvers
Rotherham S63 5DL. ENGLAND.
+ 44 (0) 844 997 1960
+ 44 (0) 844 997 1961
Advertisement
Related Manuals for Thetford 172 Series
Summary of Contents for Thetford 172 Series
- Page 1 HU, IE, IT, LT, LU, LV, MT, NL, NO, PT, RO, SE, SK, SI, TR DUAL FUEL MODELS:- GB, BE, CH, CY, CZ, DE, DK, ES, FI, FR, GR, HU IE, IT, LT, LU, LV, MT, NL, PT, RO, SE, SK, SI THETFORD LIMITED Unit 6 Brookfields Way, Manvers Rotherham S63 5DL. ENGLAND.
- Page 2 CAUTION Appliance and accessible parts become hot when in use, young children should be kept away. Avoid touching the heating elements or pan supports when in use. The use of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed.
- Page 3 CAUTION Do not allow cooking vessels to overlap the edges of the appliance – use the correct sizes of pans and position them centrally over the burners. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass since they can scratch the surface, which may result in shattering of the glass.
- Page 5 Fig.1 – Worktop Cutout 491mm 475mm 360mm 57.5mm 518mm 505mm 415mm 52.5mm 20mm Fig. 2 – Minimum distance to combustible material (A) 200mm minimum allowable distance to any adjoining combustible wall surface (B) 510mm minimum allowable distance to any fitment above appliance. (C) Not less than appliance width...
- Page 6 Fig. 3 – Under hob shielding 50mm Minimum air gap from lowest part under hob Non – combustible material. Vent – 8mm x 100mm Gas dispersal hole (Ø12mm Minimum, Ø25mm Maximum) Fig. 4 – Control Positions FULL RATE LOW RATE (Gas Burner) (Gas Burner) (Gas Burner)
- Page 7 WARNING LAMP HOTPLATE EARTH (FASCIA) EARTH (HOB) HOTPLATE N Energy Consumption measurement and Calculations in Accordance with EN 60350-2 2013. Thetford Appliance Cooking Type of Hob Diameter of Energy Consumption Model Identification Zones (Watts) Cooking Zone Wh/kg...
-
Page 8: Operation
INTRODUCTION This appliance is designed for cooking foods, any other use is incorrect and dangerous. Failure to install the appliance correctly or improper use, will invalidate any warranty or liability claims. This appliance must be installed in accordance with the local, national and European regulations in force. - Page 9 OPERATION Before first use, clean all surfaces with hot soapy water to remove any residual protective covering of oil the rinse and dry carefully. Hob Burners 1. Ensure gas supply is connected and turned on. 2. Push in the control knob and turn anticlockwise to full rate – large flame ( ), see Fig 4. 3.
-
Page 10: Maintenance
They are interchangeable without affecting the sense of operation. The electrical components in this appliance are not user serviceable. In any event of damage, disconnect the appliance from the electrical supply and refer to an authorised Thetford Service Agent for replacement or repair. -
Page 11: Installation
INSTALLATION Regulations and Standards In your own interest of safety, it is law that all gas appliances are installed and serviced by an approved competent person, in accordance with the local and National/European standards in force Failure to install the appliance correctly could invalidate any warranty or liability claims and lead to prosecution. - Page 12 INSTALLATION This appliance must be positioned free from draughts, which may affect the combustion, and in a manner that will prevent the accumulation of unburnt gas. When in use ensure that air vents are not inadvertently blocked or shut off. Ensure all combustible materials such as curtains and shelves are well clear of the appliance.
- Page 13 INSTALLATION Dual Fuel models (230-240V ~ 50Hz) Models with power cord only This appliance is supplied with a double insulated cord, type 227 IEC 53, HO5V V-F, which is suitable for use up to 4 amps. This should be connected to a double pole switched mains supply, with 3mm minimum contact separation at all poles in accordance with the wiring rules.
