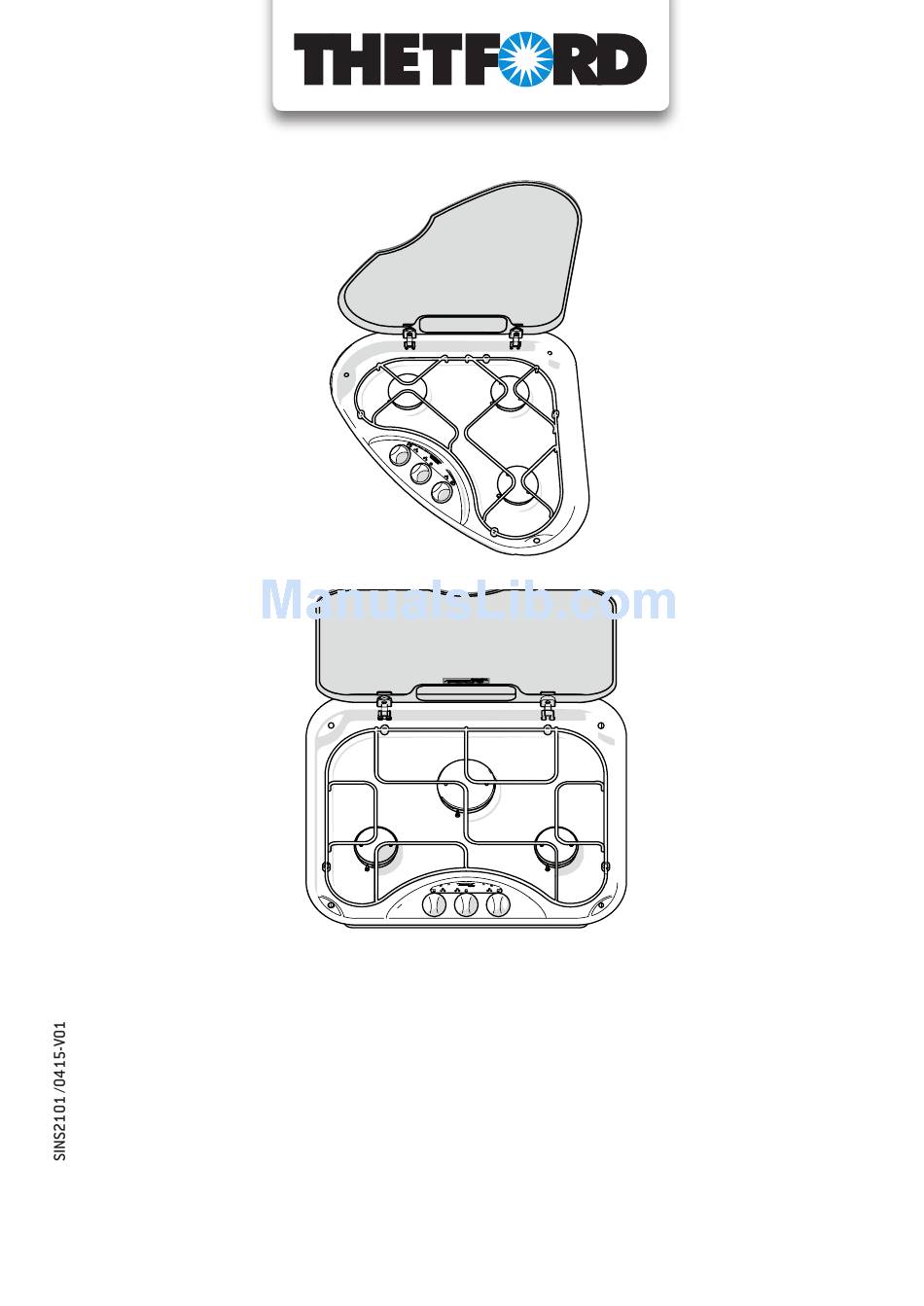

- Page 1 330-340-345 Series Installation Manual for use in GB, FR, DE, ES, IT, SI, SE, AT, CH, IE, LU...
- Page 2 DECLARATION OF CONFORMITY We: THETFORD Ltd Address: Unit 6 Brookfields Way, Manvers, Rotherham, S63 5DL Telephone: (+44) (0) 844 997 1960. Fax: (+44) (0) 844 997 1961 Declare that Product Types; Domestic build-in gas hobs Model Number/Description; SHB330XX Series, SHB340XX Series, SHB345XX Series “Continental Range”...
-
Page 3: Table Of Contents

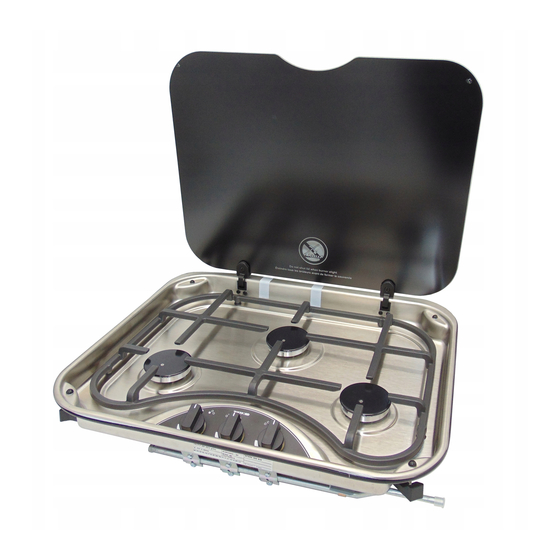

10 Questions / customer service........................10 1. Introduction This is the installation manual for the Thetford 330, 340 and 345 series hob. The manual is meant for qualified installers who will install the hob in a caravan, camper, boat or holiday home. Read the information and instructions carefully and follow them strictly to install the unit safely and correctly. -
Page 4: Regulations And Standards
3. Regulations and standards Gas appliances should only be installed by qualified and certified professionals; Ensure that the type of gas and pressure match the specification of the appliance. You can find the specification on the data badge; Pay close attention to current regulations on ventilation of the country in use;... -
Page 5: Position And Placement
4. Position and placement ■ Install the SHB330 in a worktop cut-out prepared as shown, when using surface mount fixing; SHB330 452.9 88.4 236.0 R112.0 R 80.0 R690 R112.0 ■ Install the SHB340/SHB345 in a worktop cut-out prepared as shown, when using surface mount fixing;... - Page 6 ■ Install the SHB330 in a worktop cut-out prepared as shown, when using flush mount fixing; SHB330 484.0 18.5 453.0 R87.0 88.4 236.0 R112.0 R80.0 R122.0 R690 R702.0 R112.0 R122.0 ■ Install the SHB340/SHB345 in a worktop cut-out prepared as shown, when using flush mount fixing;...
- Page 7 ■ Adjust the rebate depth (1 = 6mm). The surrounding surfaces must be able to withstand the allowable temperature rise of 65˚C above ambient temperature, as specified in the EN 30-1-1 standard and in accordance with the design of this unit. The temperature of the surrounding surfaces may rise if there are other additional devices besides the hob.
- Page 8 ■ Provide an air gap of at least 100mm (A) under the unit; ■ Provide venting to the outside of at least Ø12mm and max Ø25mm (B); Make sure the gas dispersal hole can never be blocked. ■ Position the unit so it is centred and level in the cut-out. There must also be a gap of 2-3mm between the appliance and sides of the cut-out;...
-
Page 9: Connecting Gas
Using flush mount fixing: 1. Flush mounting bezel 2. Bump stop 3. Glass lid 4. Clamping bush 5. Pressing 6. Clamping srew 7. Clamping arm 8. Worktop 5. Connecting gas ■ Connect the gas to the Ø8mm gas inlet; ■ Use only metal gas pipes in accordance with the requirements of EN1949. -
Page 10: Technical Specifications
8. Technical specifications Table 1: Burner specifications SHB330 SHB340 SHB345 Gas input Injector Gas input Injector Gas input Injector g/hr g/hr g/hr Semi-Rapid Burner 0.61 0.61 0.61 Semi-Rapid Burner 0.61 0.61 0.61 Semi-Rapid Burner 0.61 0.61 Rapid Burner 0.77 Total Table 2: Dimensions and weight SHB330 SHB340... -
Page 11: Questions / Customer Service
For service, please contact your authorised local Service Centre giving details of the model and serial number on the data badge plus date of purchase. 10. Questions / customer service ■ Look at www.thetford-europe.com ■ Contact Customer Service Thetford in your country. See the addresses on the back. - Page 12 FRANCE ITALY SPAIN AND PORTUGAL FRANCE ITALY SPAIN AND PORTUGAL Thetford S.A.R.L. Thetford Italy c/o Tecma s.r.l. Mercè Grau Solà Thetford S.A.R.L. Thetford Italy c/o Tecma s.r.l. Mercè Grau Solà Bâtiment Le Californie Via Flaminia Agente para España y Portugal Bâtiment Le Californie...
