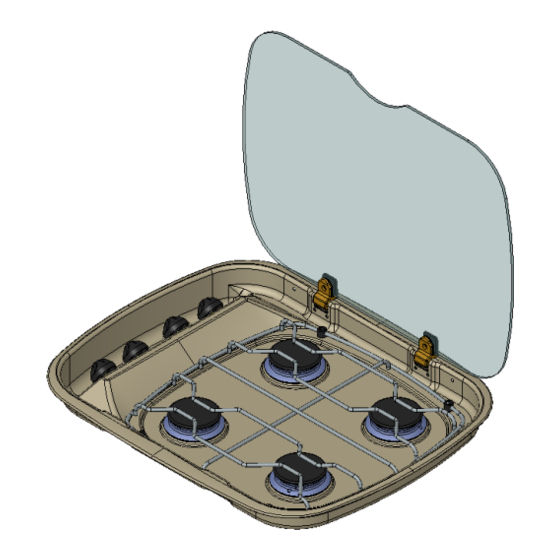

Build-in Cooking hob
ARGENT
Series 14000 Series 14300 Series 14500
FOR USE WITH LIQUIFIED PETROLEUM GAS
USER AND INSTALLATION INSTRUCTIONS
READ AND RETAIN FOR FUTURE REFERENCE
FOR USE IN
GB, BE, BG, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GR, HR, HU, IE, IT
LT, LU, LV, MT, NL, NO, PT, RO, SE, SK, SI, TR
THETFORD LIMITED
Unit 6 Brookfields Way, Manvers
Rotherham S63 5DL. ENGLAND.
+ 44 (0) 844 997 1960
+ 44 (0) 844 997 1961
Advertisement
Related Manuals for Thetford 14300 Series
Summary of Contents for Thetford 14300 Series

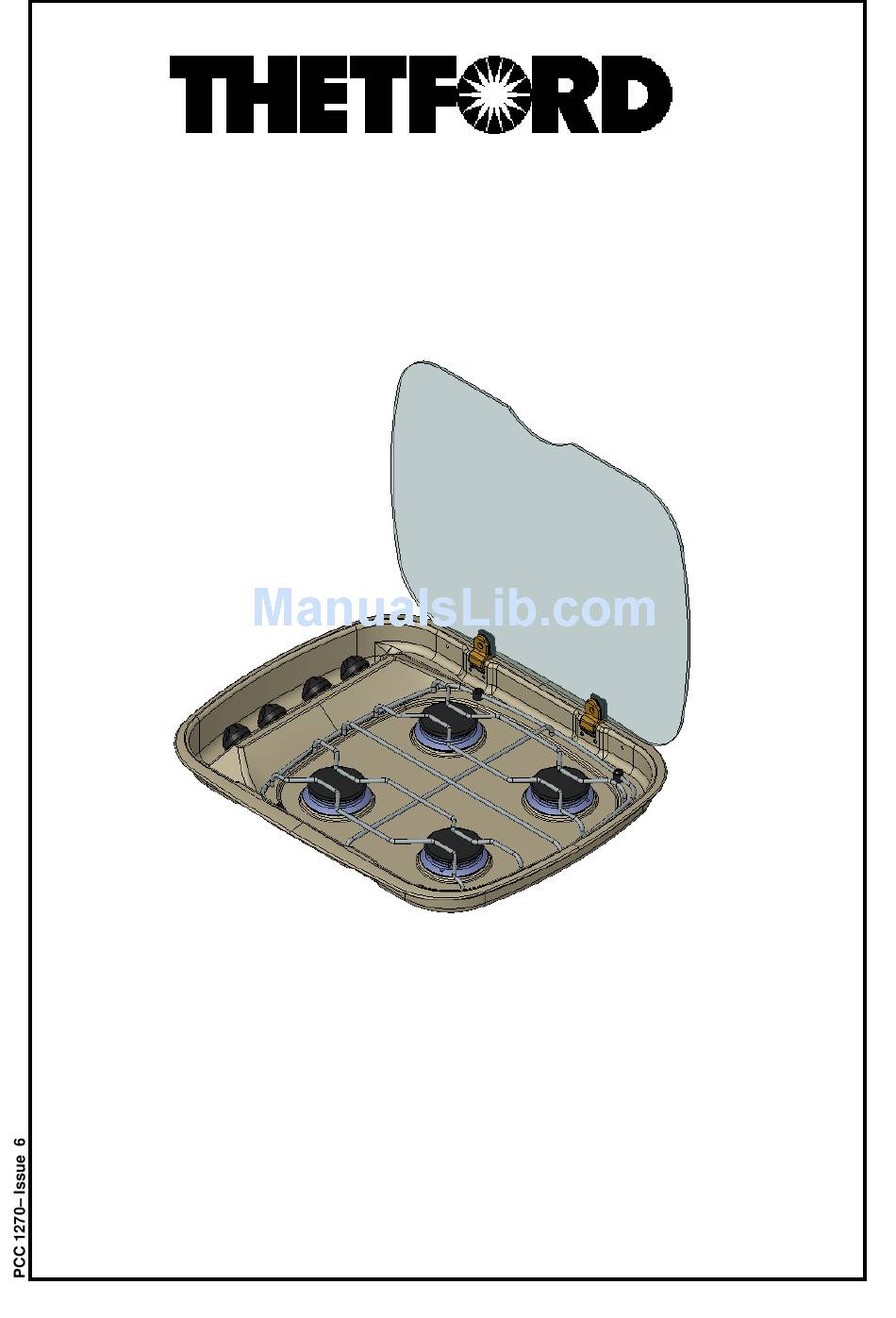

- Page 1 Build-in Cooking hob ARGENT Series 14000 Series 14300 Series 14500 FOR USE WITH LIQUIFIED PETROLEUM GAS USER AND INSTALLATION INSTRUCTIONS READ AND RETAIN FOR FUTURE REFERENCE FOR USE IN GB, BE, BG, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GR, HR, HU, IE, IT...
- Page 4 Fig. 1 - Argent cutout details 38mm 162mm 153.5mm 18mm 415mm 545mm R696mm R83mm Gas Dispersal Hole ≥ ≤ Ø12mm Max Ø25mm 3 x fixing positions, to prevent damage to the hob ensure correct plastic washers are used, as shown above. fixing position and location of glass lid rubber bump stop as shown above.
- Page 5 Fig. 2 - Appliance Location, All Models (A) Minimum allowable distance to any adjoining combustible wall surface = 200mm (B) Minimum allowable distance to any fitment above appliance = 500mm (C) Not less than the appliance width. Fig. 3 - Control Positions FULL RATE LOW RATE...
- Page 6 INTRODUCTION This appliance is designed for cooking food, any other use is incorrect and dangerous. Failure to install the appliance correctly or improper use could invalidate any warranty or liability claims and lead to prosecution. This appliance must be installed in accordance with the local, national and European regulations in force.
-
Page 7: Operation
OPERATION The burners on the appliance have fixed aeration and no adjustment is required. The burners should flame as follows:- Propane - The flames should burn quietly with a blue/green colour with no sign of yellow tips. Butane - Normally on initial lighting, a small amount of yellow tipping will occur and then slightly increases as the burner heats up. -
Page 8: Maintenance
OPERATION Leaks If a smell of gas becomes apparent, the supply should be turned off at the cylinder IMMEDIATELY. Extinguish naked lights including cigarettes and pipes. Do not operate electrical switches. Open all doors and windows to disperse any gas escape. ... -
Page 9: Installation
INSTALLATION Regulations And Standards In your own interest of safety, it is law that all gas appliances are installed and serviced by an approved competent person, in accordance with the local and National/European standards in force Failure to install the appliance correctly could invalidate any warranty or liability claims and lead to prosecution. - Page 10 INSTALLATION The appliance should be fixed in place using the fixing screw positions as shown in the diagram – see Fig. 1. Make sure the appliance is fully home in the cabinet/aperture before fixing in place. This appliance must be positioned free from draughts, which may affect the combustion, and in a manner that will prevent the accumulation of unburnt gas.
