NOTE: Some vehicles may not be equipped with all warning indicators shown here.
1. Engine Brake
2. Optional
3. Wait To Start
4. Check Transmission
5. Optimized Idle
6. CHECK Engine
7. STOP Engine
8. Malfunction Indicator Lamp (MIL)
9. Vehicle ABS
10. Transmission Overheat
ability is maintained. An exception would be if a
modulator valve (or combination modulator valve) is
damaged and inoperative. As these components are
an integral part of the air brake system, normal brak-
ing may be impaired or inoperative.
During emergency or reduced-traction stops, fully
depress the brake pedal until the vehicle comes to a
safe stop. Do not pump the brake pedal. With the
brake pedal fully depressed, the ABS will control all
wheels to provide steering control and a reduced
braking distance.
Although the ABS improves vehicle control during
emergency braking situations, the driver still has the
responsibility to change driving styles depending on
existing traffic and road conditions. For example, the
3
7 8
OPT 4
13 14
20 21
11. Trailer ABS
12. Low Engine Oil Pressure
13. High Coolant Temperature
14. Unfastened Seat Belt
15. Park Brake On
16. Diesel Particulate Filter (DPF)
Status
17. High Exhaust Temperature
(HEST)

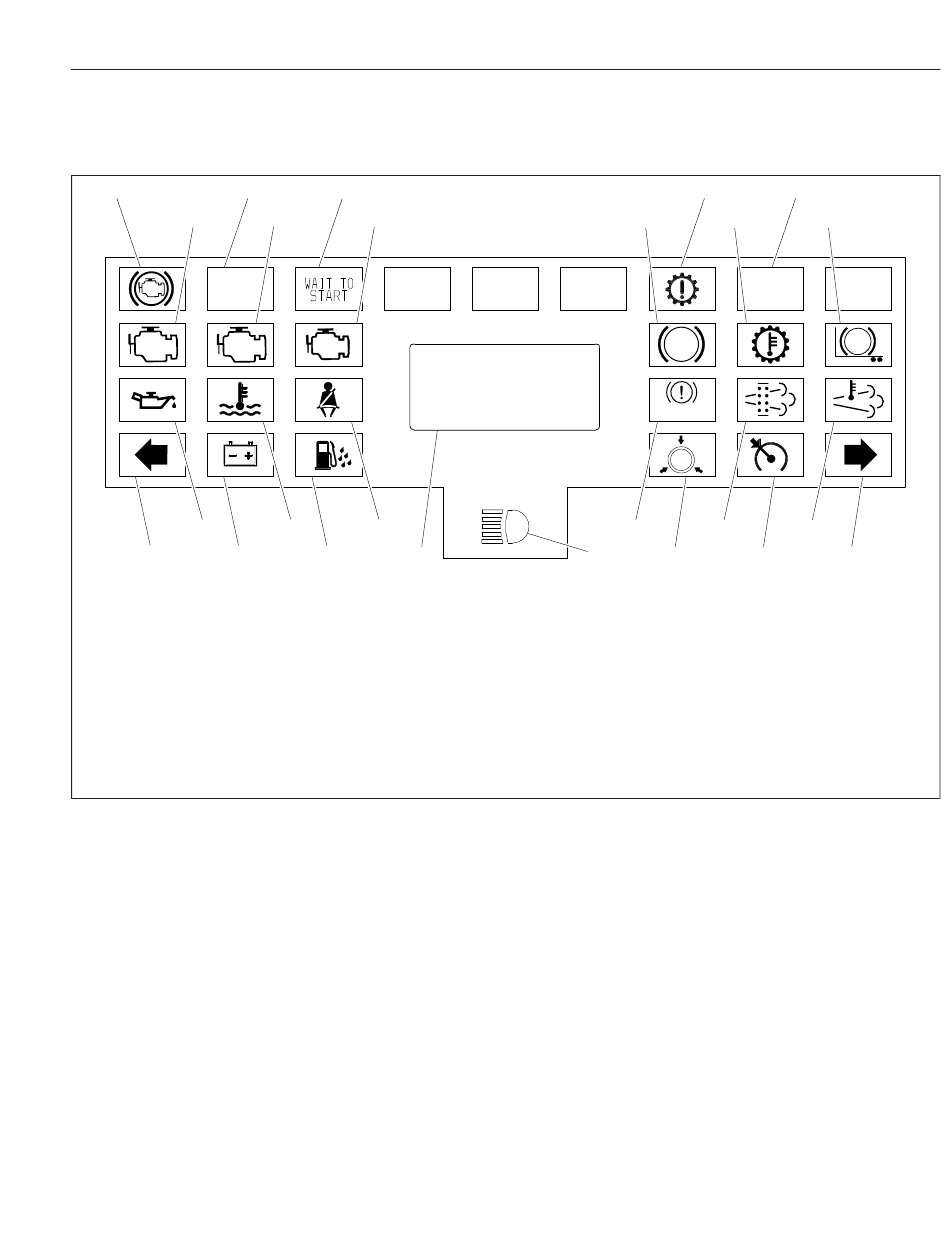

Fig. 12.3, ICU3 Message Center (typical)
9
OPT 5 OPT 6
ABS
BRAKE
15
22 23
18. Left-Turn Signal
19. Low Battery Voltage
20. Water In Fuel
21. Driver Message Center
22. High Beams On
23. Low Air Pressure
24. Cruise Control On
25. Right-Turn Signal
ABS cannot prevent an accident if the driver is
speeding or following too closely.
Trailer ABS Compatibility
The Meritor WABCO ABS is designed to communi-
cate with a trailer ABS, if they are compatible. Com-
patibility will result in the illumination of the trailer
ABS warning indicator during vehicle start-up and
fault detection. See
The trailer ABS warning indicator will not illuminate
unless a compatible trailer is connected to the trac-
tor. The dash-mounted lamp will operate as follows
when a compatible trailer is properly connected to
the tractor:
Brake System
4 5
10 11
IDLE
MGMT
OPT 9
ABS
16 17
24 25
Fig. 12.3.
f611094
