Driver Controls
1
04/24/2012
1. Spotlight Switch
2. Dome Light Switch
3. Utility Lights Switch
4. Foot Well Lights Switch
Utility Lights
Utility lights can be swivel-mounted on top of the
cab, mounted on the intake/exhaust support, or flush-
mounted in the back of the cab or sleeper. Press the
upper half of the switch to activate the utility lights.
See Fig. 5.2. Press the lower half of the switch to
turn the utility lights off. When activated, a red indica-
tor light in the switch is illuminated, if equipped
Interior Lighting Controls
Interior light controls are listed here in alphabetical
order.
Baggage Compartment Lights
Baggage compartment lights are located on the un-
derside of the lower bunk, on both sides. Both lights
turn on when either baggage compartment door is
5.3
2
6 7
5. Road Lights Switch
6. Rear Strobe Light Switch
7. Front Strobe Light Switch

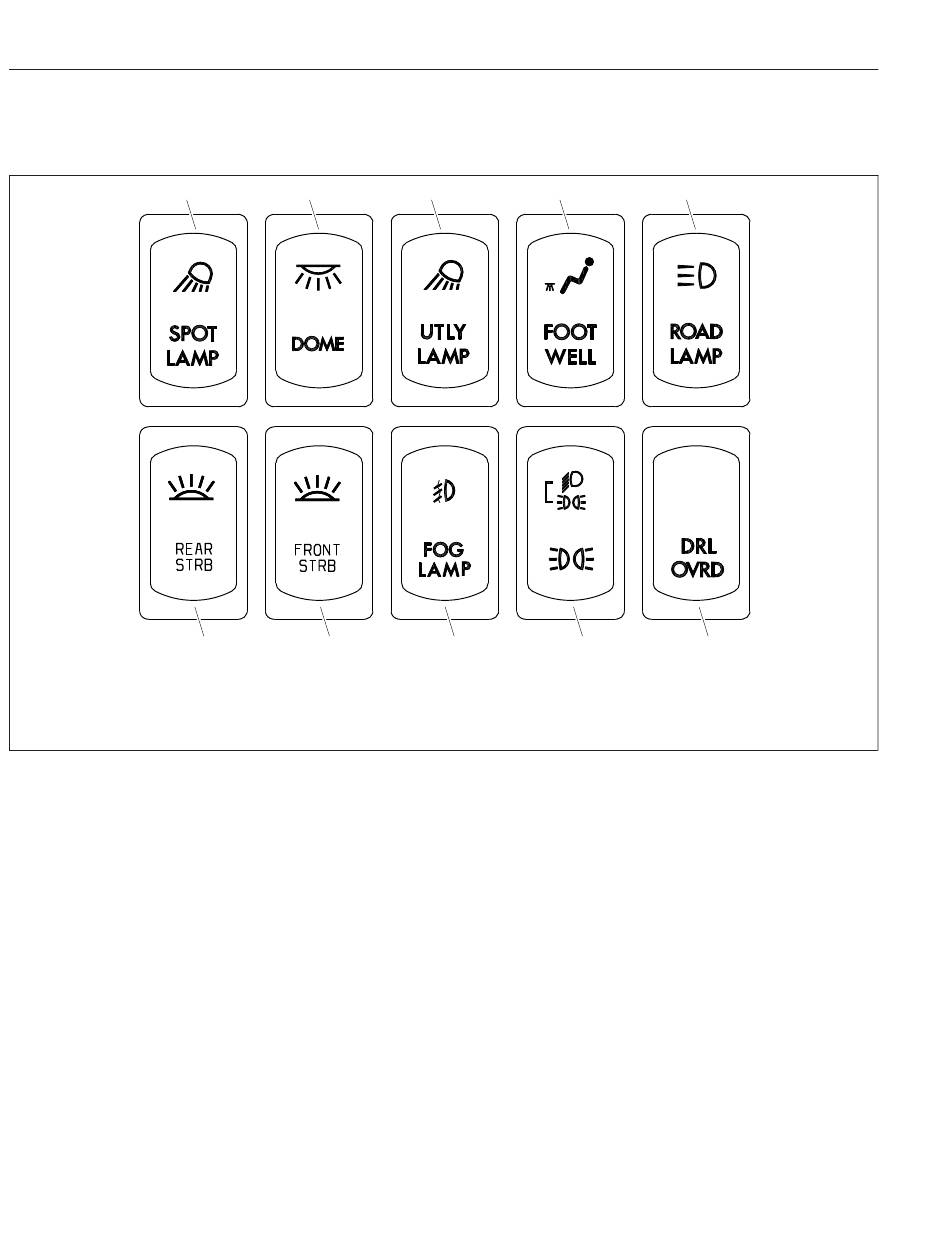

Fig. 5.2, Typical Light Controls
3 4
8 9
8. Fog Lights Switch
9. Headlights/Marker Lights Switch
10. DRL Override Switch
opened to illuminate the baggage compartment. The
lights also come on when the lower bunk is raised.
Cab Overhead Console Lights
The overhead console includes a clear reading light,
a clear dome light, and a red map light. The dome
lights illuminate when a door opens, then stay on for
a short time after both doors are closed. Press the
lens of the reading light, dome light, or map light to
activate each one.
Foot Well Lights
When the driver or passenger doors are opened, red
lights illuminate both foot wells. These lights can also
be activated with the foot well light switch. See
Fig. 5.2. Press the upper half of the switch to turn
the foot well lights on, press the lower half of the
switch to turn them off.
5
10
f611174
