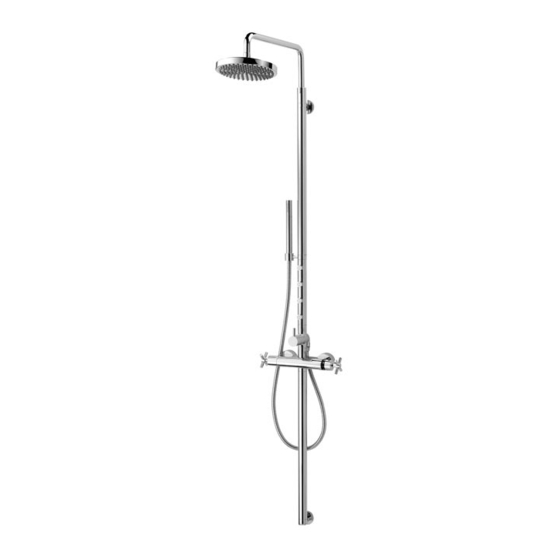

Thermostatic bar mixer shower pole

Advertisement

leona
thermostatic
bar mixer
shower pole
Installation and
operating
instructions
I
NSTALLERS PLEASE NOTE THESE INSTRUCTIONS ARE TO BE LEFT WITH THE USER
2180580b
February 2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Leona and is the answer not in the manual?

Questions and answers

Summary of Contents for Triton Leona

  • Page 1 Installation and operating instructions NSTALLERS PLEASE NOTE THESE INSTRUCTIONS ARE TO BE LEFT WITH THE USER 2180580b February 2009...
  • Page 2: Table Of Contents

    Cleaning the filters ................ 13 Spare parts .................14 – 15 Fault finding ................16 − 17 Guarantee, service policy, etc...........rear cover To check the product suitability for commercial and multiple installations, please contact Triton’s specification advisory service before installation. Telephone: 0844 980 0730...
  • Page 3: Introduction

    (above 200 ppm This tap is suitable for high water pressures only temporary hardness), a scale inhibitor may and should be fitted in accordance with Water have to be fitted. For advice on the Triton Regulations. scale inhibitor, please contact Customer Service.
  • Page 4: Main Components

    Thermostatic shower pole MAIN COMPONENTS Fig.1 Fixed showerhead Fixed head arm bracket collar upper shower pole Mixer valve Lower shower pole Inlet cover trims X2 Support arm X2 Mounting bracket cover trim X2 10. Mounting bracket X2 11. Inlet connector with Metal washer (not used) Lock nut (not used)
  • Page 5: Site Requirements

    Thermostatic shower pole SITE REqUIREMENTS Water temperature requirements The installation must be in accordance with Maximum hot water temperature = 80°C Water Regulations and bylaws. Recommended maximum = 65°C Running water pressure: Minimum hot water temperature = 52°C 1.0 bar min. to 5.0 bar max. Maximum cold water temperature = 20°C Maximum static water pressure: bS 6700 recommends that the temperature of...
  • Page 6: Typical Suitable Installations

    Thermostatic shower pole TYPICAl SUITAblE INSTAllATIONS Fig.2 (diagrammatic view – not to scale) a) Instantaneous gas-heated systems, e.g. combination boilers (fig.2) The shower MuST be installed with a multipoint gas water heater or combination boiler of a fully modulating design (i.e. to maintain relatively stable hot water temperatures).
  • Page 7 Thermostatic shower pole c) Mains pressurised thermal store Fig.4 (diagrammatic view – not to scale) systems (fig.4) Packages of this type, fitted with a tempering valve (blender valve) can be used. A drop tight pressure reducing valve MuST be fitted if the supply pressures exceed 5 bar running.
  • Page 8: Instantaneous Water Heater Appliance Capabilities

    Thermostatic shower pole INSTANTANEOUS WATER HEATERS Fig.7 (diagrammatic view – not to scale) APPlIANCE CAPAbIlITIES In order to provide the best performance from All dimensions in millimetres the shower when connected to an instantaneous water heater, the appliance must be capable of raising the temperature of the incoming water to a minimum of 52°C (125°F) and delivering a flow rate of not less than eight litres per minute.
  • Page 9: Siting Of The Shower Pole

    General note: The outlet of the shower MuST nOT be connected to anything other than that recommended by Triton Plc. DO nOT use jointing compounds on any pipe fittings for the installation. DO nOT solder fittings near the mixer unit as heat transfer can damage the seals and thermostatic components.
  • Page 10 Thermostatic shower pole When installing into a stud partition or other Fig.10 hollow wall structures, the installer will need to consider building rear supports or other options. Such options are beyond the scope of this guide. Important: The pipe depth must be such that the face of the fitting is flush with the finished surface.
  • Page 11 Thermostatic shower pole Assembling the shower pole Fig.13 Assemble the shower pole on a clean flat surface as follows: Upper shower pole Push fit the upper shower pole into the bar valve section. Align, then secure using the grub screw in the rear of the bar valve (fig.13).
  • Page 12: Leak Testing

    Thermostatic shower pole Fitting the shower pole Fig.16 Trims WarnInG! Due to the weight of the shower pole, it is advisable to have a second person support the unit during the Collars fitting procedure. Slide the cover trims onto the shower pole collars (fig.16).
  • Page 13: Commissioning

    Thermostatic shower pole COMMISSIONING Fig.19 Showerhead Make sure that both the hot and cold water supplies are fully open and at (or near to) their Shower design temperature and pressures, and are within the requirements as stated. Check the temperature knob (right-hand side) is rotated fully anti-clockwise (press the override button to achieve maximum temperature setting).
  • Page 14: Operating The Shower

    Thermostatic shower pole OPERATING THE SHOWER Fig.19 To start the shower, rotate the On/Off flow handle (left-hand side) fully anti-clockwise for Flow maximum flow. control To stop the water flow, rotate the On/Off flow handle fully clockwise (fig.19). To adjust the water temperature, rotate the temperature control (right-hand side) —...
  • Page 15: Cleaning

    Thermostatic shower pole ClEANING Fig.22 DO nOT use abrasive or solvent cleaning fluids. The shower unit should be cleaned using a soft cloth and warm water. Inlet ClEANING THE FIlTERS connectors Important: The filters are contained in the Filters inlet connectors. Turn off the water supplies before starting.
  • Page 16: Spare Parts

    Thermostatic shower pole SPARE PARTS Ref. Description Part No. Fixed showerhead 83310730 Wall fixing kit 83310710 body jet service pack 83310720 Diverter service pack 83310750 Flow/temperature knob assy. 83310680 Flow control cartridge 83310670 Thermostatic cartridge 83310660 Inlet trims 83310700 Inlet connectors 83310690 10.
  • Page 17 Thermostatic shower pole SPARE PARTS Ref. Description Part No. 11. Flexible hoses available in the following sizes: 1.00 m in white, chrome and gold 1.25 m in white, chrome and gold 1.75 m in chrome only Optional parts 12. Straight connectors 86001120...
  • Page 18 1.3.1 Turn temperature control clockwise. cold water temperature. 1.4 Cold water supply 1.4.1 Turn off shower and consult a competent blocked. plumber or contact Triton Customer Service. 1.5 High volume of cold 1.5.1 Reduce the simultaneous demand from water drawn off elsewhere. the supply.
  • Page 19: Fault Finding

    Thermostatic shower pole FAUlT FINDING The following is recommended for a professional qualified installer only Problem/Symptom Cause Action/Cure 4 Water too cold. 4.1 Running pressure 4.1.1 Fit a pressure reducing valve. in excess of maximum recommended. 5 Shower controls 5.1 Running pressure 5.1.1 Fit a pressure reducing valve.
  • Page 20 0844 980 0730 Triton Road Fax: 0844 980 0744 Nuneaton Warwickshire CV11 4NR www.tritonshowers.co.uk Triton is a division of Norcros Group (Holdings) Limited E-mail: serviceenquiries@tritonshowers.co.uk 11-7-2011 TRITON reserve the right to change product specification without prior notice. E&OA. © TRITON SHOWERS 2011...
