Triton LocBoard LB18-S Installation & Assembly Instructions

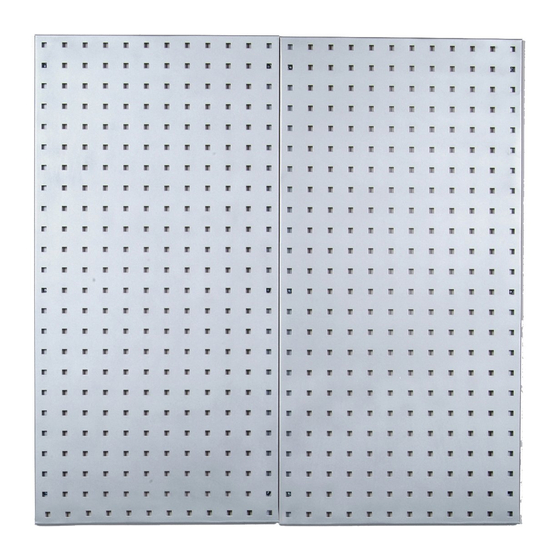

LB18-S - (2) 18" x 36" Stainless Steel LocBoard®(s)
Read all instructions completely before installing. Should you have any questions about your
installation, please call Customer Service at 440-248-5480
•
Boards can be positioned side by side or in separate locations in vertical or horizontal mounting
positions.
•
LocBoards fasten directly to concrete, solid wood and hollow wall structures without the use of
furring strips.
•
LocBoards are designed with internal mounting flanges that keep mounting hardware hidden
from sight and adds to the board's structural integrity and holding power.
•
If installing to bare studs you will need to install wood headers before completing installation.
•
Mounting hardware is included to complete your installation.
12 Each #8- 2" Stainless Steel Screws and #8 plastic wall anchors.
Level, Marker, 7/32" standard or Masonry Drill bit, 7/64" Std. Bit for wood studs, #2 Phillips Head
Screwdriver, and a power drill.
For Drywall, Hollow Concrete Wall installation: Use (12 each) plastic drywall anchors and #8 Phillips head
stainless steel screws (SUPPLIED WITH THIS SYSTEM). If installing to bare studs you will need to install
wood headers before completing installation using wood screws only. NOTE: Always install 1 board at a
time.
1. Select wall location for your LocBoards and the desired vertical or horizontal mounting pattern
you wish to mount in. When selecting a location for mounting always make sure that mounting
locations do not fall in line with, are adjacent to, or interfere with any internal or external
electrical wiring, wall mounted or built-in electrical appliances, heaters, gas lines, ductwork or
plumbing inside of wall, or are located on the opposite side of any wall surface from where you
are mounting.
installation.
2. (Using Images on Back) There are three screw holes in each mounting flange on the back of your
LocBoard that are accessible through the square holes on the front.
3. Place 1 LocBoard with mounting flanges flat against wall surface. While using a level to make
sure your board is straight and squared, looking through the square holes on the front of the
board, mark the centers of all 6 screw holes onto your wall surface. Note: Installation for first
board should be completed before marking mounting holes for the second board.
4. Pre-drill holes for #8 wall anchors marked in Step 3 using 7/32" standard or masonry drill bit
depending on wall surface. If you hit a wood stud stop drilling and using a 7/64" drill bit, create
a pilot hole for the wood screw. Note: Avoid over drilling holes. (Plastic wall anchors should fit
snug.)
5. Insert plastic wall anchors in each hole drilled in Step 4 except where you drilled 7/64" pilot hole
for wood stud.
6. Align mounting holes in wall surface with screw holes in back flanges. Insert wood screws
through the front square opening and into pre-installed plastic wall anchors. Tighten all screws.
30700 D Carter Street ∙ Solon, OH 44139 ∙ (P) 440.248.5480 ∙
Installation & Assembly Instructions
Hardware included for installation:

Tools needed for Installation

LocBoard Installation:

If you are unsure, please consult a professional before proceeding with
Please contact Customer Service with any questions at:
For a full line of products visit
support@tritonproducts.com
www.tritonproducts.com
