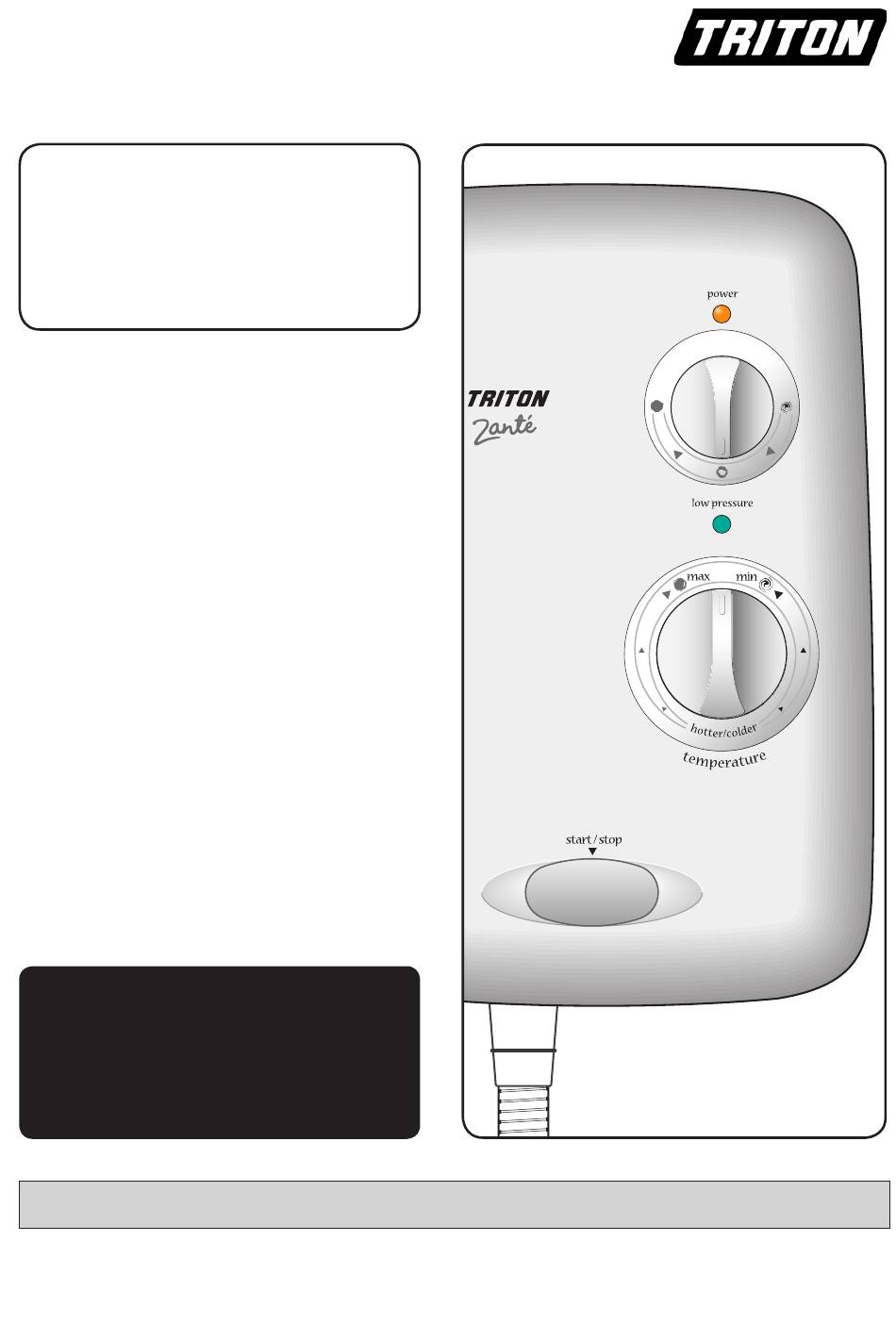

  • Page 1 Zanté electric shower Installation and operating instructions nstallers please note these InstructIons are to be left wIth the user 2180289H January 2006...
  • Page 2: Table Of Contents

    24 – 25 Guarantee, service policy, etc. rear cover To check the product suitability for commercial and multiple installations, please contact Triton’s specification advisory service before installation. Telephone: +44 (0) 24 7632 5491 Facsimile: +44 (0) 24 7632 4564 E mail: technical@triton.plc.uk...
  • Page 3: Important Safety Information

    Products manufactured by Triton are safe and without risk provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations. u WARNING: Do not operate shower if frozen, or suspected of being frozen. It must thaw out before using.
  • Page 4: Introduction

    ADVICE TO USERS This book contains all the necessary fitting and ImpoRtANt: When first installed the operating instructions for your Triton Zanté unit will be empty. It is essential the electric shower. Please read them carefully. unit should contain water before the The shower installation must be carried out by a elements are switched on.
  • Page 5: Key To Main Components

    Z a n t é e lec t r i c s hower KEY TO MAIN COMPONENTS Fig. NOTE: Not all wiring shown for reasons of clarity Inside unit (fig.1) Top cable/pipe entry Wall screw fixings Cover screw fixings Thermal safety cut-out Power selector assembly Can and element assembly Pressure switch/flag assembly...
  • Page 6: Electrical Requirements

    Shepperton Park, take the fuse or miniature circuit breaker Triton Road, Nuneaton, (MCB) necessary for the shower (fig.). Warwickshire, CV11 4NR 4.1 If your consumer unit has a rating below...
  • Page 7 Z a n t é e lec t r i c s hower in the room in which the shower is to to touch the switch body while standing be installed, to conform to current IEE in a bath or shower cubicle. It should be regulations.
  • Page 8: Water Requirements

    Z a n t é ele ct r i c s hower WATER REqUIREMENTS The installation must be in accordance with Mains electric supply Water Regulations/Bylaws. (via double pole switch) To guarantee activation of the heating elements, the shower must be connected to a mains water supply with a minimum running pressure of Double 100kPa (1.0 bar) at a minimum flow rate of eight...
  • Page 9: Siting Of The Shower

    Z a n t é e lec t r i c s hower SITING Of THE SHOWER WARNING! ImpoRtANt: If installing onto a tiled wall the shower must not be positioned always mount the unit on the surface of the where it will be subjected to tiles.
  • Page 10: Fitting The Shower To The Wall

    Z a n t é ele ct r i c s hower fITTING THE SHOWER TO WALL Fig. WARNING! Check there are no hidden cables or pipes before drilling holes for wall plugs. use great care when using power tools near water. the use of a residual current device (RCd) is recommended.
  • Page 11 Z a n t é e lec t r i c s hower After choosing the site for the shower, use the backplate as a template and mark the two fixing Fig.0 holes (fig.). Drill and plug to suit the fixing screws supplied.
  • Page 12: Plumbing Connections

    Z a n t é ele ct r i c s hower PLUMBING CONNECTIONS WARNING! Plumbing to be carried out before wiring the outlet of the shower acts as a DO NOT use jointing compounds on any pipe vent and must not be connected to fittings for the installation.
  • Page 13: Electrical Connections

    Z a n t é e lec t r i c s hower ELECTRICAL CONNECTIONS Fig.a SWItch oFF thE ElEctRIcIty SUPPly At thE MAInS. Fig.a shows a schematic wiring diagram for the 8.5kW and 9.5kW units. Fig.b shows the diagram for the 10.5kW units.
  • Page 14: Replacing The Cover

    Z a n t é ele ct r i c s hower REPLACING THE COVER Fig. The power selector spindle must be aligned as shown (fig.). To check that the temperature control is correctly positioned on the stabilising valve, temporarily place the cover in position so that the splines engage and rotate the temperature control fully anti-clockwise.
  • Page 15: Commissioning

    Z a n t é e lec t r i c s hower COMMISSIONING Fig.9 WARNING! before normal operation of the shower, it is essential the following commissioning procedure is completed correctly. The first operation of the shower should flush out any remaining unit debris and guarantee that the heater unit contains water before the elements are switched on.

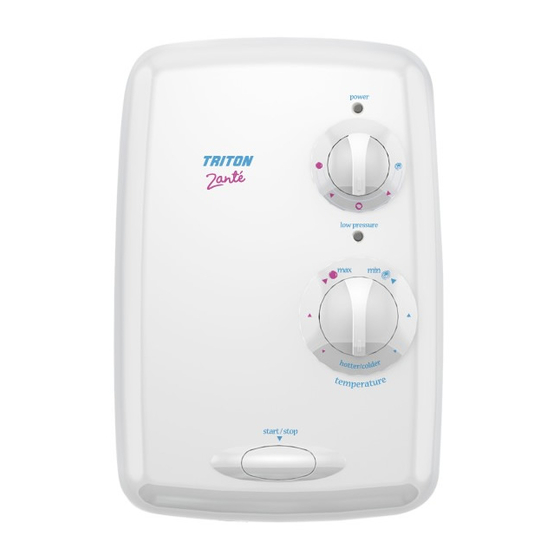

  • Page 16: Operating The Shower

    Z a n t é ele ct r i c s hower OPERATING THE SHOWER Fig. WARNING! before normal operation of the Power shower, it is essential that the selector commissioning procedure has been completed correctly. To start the shower High Press the ‘START/STOP’...
  • Page 17 Z a n t é e lec t r i c s hower performance throughout the year. Temperature WARNING! adjustment at this setting is via the temperature control. After any servicing of the mains water supply, always make sure the unit is To adjust the shower temperature started on Cold in order to purge any The water temperature is altered by increasing...
  • Page 18: Operating Functions

    Z a n t é ele ct r i c s hower OPERATING fUNCTIONS Fig. Power on Power on indicator (fig.24) indicator When the electricity supply to the shower is switched on at the isolating switch, the ‘power’ indicator will light. Low pressure indicator (fig.24) A red indication means the water pressure has...
  • Page 19: Fitting The Riser Rail

    Z a n t é e lec t r i c s hower fITTING THE RISER RAIL Fig. Fig. WARNING! Check there are no hidden cables or pipes before drilling holes for wall plugs. use great care when using power tools near water. the use of a residual current device (RCd) is recommended.
  • Page 20: Fitting The Hose And Showerhead

    Z a n t é ele ct r i c s hower Replace the upper bracket onto the rail and Fig.0 Fig. secure the bracket to the wall with the screws supplied (fig.9). Place a trim cover onto each bracket. Make sure the large tab at the narrow end of the trim cover fits into the slot between the rail and bracket (fig.0) before pushing and clicking the other...
  • Page 21: Adjusting The Showerhead

    Z a n t é e lec t r i c s hower ADJUSTING THE SHOWERHEAD Fig. Five showerhead patterns are available (fig.). Adjust the spray pattern by turning the bezel on the showerhead in either direction until the desired pattern is obtained.
  • Page 22: Cleaning The Showerhead

    Z a n t é ele ct r i c s hower CLEANING THE SHOWERHEAD Fig. WARNING! Sprayplate do Not use ‘powerful’ abrasive or solvent cleaning fluids when cleaning the shower as they may damage the plastic fittings. Before cleaning, turn off the unit at the isolation switch to avoid the shower being accidentally Sprayplate switched on.
  • Page 23: Cleaning The Filter

    Z a n t é e lec t r i c s hower INSTRUCTIONS fOR INSTALLERS AND SERVICE ENGINEERS ONLY CLEANING THE fILTER Fig.9 The inlet filter is situated inside the solenoid inlet (fig.9). To gain access to the filter will require the cover to be removed and disconnection and removal of the compression fitting.
  • Page 24: Spare Parts

    Z a n t é ele ct r i c s hower SPARE PARTS Ref. Description Part No. Terminal block 22009230 Can assembly 8.5kW S07810700 9.5kW S07810701 10.5kW 84500530 Thermal cut-out (main) 22009860 Power neon 82300980 Switching module assy. c/w actuator & m’switches 8.5kW &...
  • Page 25 Z a n t é e lec t r i c s hower SPARE PARTS Ref. Description Part No. 13. 5 mode kwik kleen showerhead 22011270 14. Brackets (pair) 83306160 15. Riser rail 7042409 16. Showerhead holder 83306190 17. Soap dish 22008960 18.
  • Page 26: Fault Finding

    (see rating label). Contact Customer Service for advice. 4.3 Reduction in ambient 4.3.1 Readjust flow rate to give reduced flow. water temperature. 4.3.2 Select ‘high’ power. 4.4 Electrical malfunction 4.4.1 Have unit checked by suitably qualified or safety cut-out operated. electrician or contact Triton Customer Service.
  • Page 27 Z a n t é e lec t r i c s hower fAULT fINDING Problem/Symptom Cause Action/Cure 5 Shower varies 5.1 Water pressure has 5.1.1 Wait until the water pressure resumes to from normal dropped below minimum normal. temperature to cold required.
  • Page 28 Any part found to be defective during this 2 Triton Customer Service will be able to confirm guarantee period we undertake to repair or whether the fault can be rectified by either the...
