FG Modellsport Leopard 4 Competition Mounting Instructions page 9

1. Fix the rear alum. damper plate
to the le/ri alum. rear axle mounts
using M4x18 pan head screws
and disks Ø4,3 ( Mount the cut-
out of the alum. shock mount in
driving direction).
2. Mount the rear assembled lower
shock absorbers to the rear lower
alum. wishbones (medium threa-
ded hole) using M4x20 pan head
screws. Screw M5x25 pan head
screws in the outer threaded holes
of the alum. damper plate rear,
then fix the shock absorbers at the
top using disks Ø5,3 and stop
nuts M5.
3. Mount the rear CFRP damper
protection to the le/ri alum. rear
axle mount using M4x18 pan head
screws and disks Ø4,3 on both
sides of the rear CFRP damper
protection.
4. Fix the spoiler mount at the rear
alum. damper plate using M4x14
cylinder head screws, mount the
plastic brace Ø10x80mm and the
adjusting parts spoiler mount in
between using 4,2x32 pan head
screws as shown in position 15.
Clip the body clips on the adju-
sting parts spoiler mount.
5. Assemble the mount for the pull
start to the rear alum. damper
plate using M5x10 pan head
screws as shown in position 15.
Engine
Engine flan-
ge for engine
quick
fastening
Carrier for
clutch shoes
Screw for carrier
M6x14 with disk
Stop
nut M5
All metric screws need to be secured with thread lock fluid.
Body clip

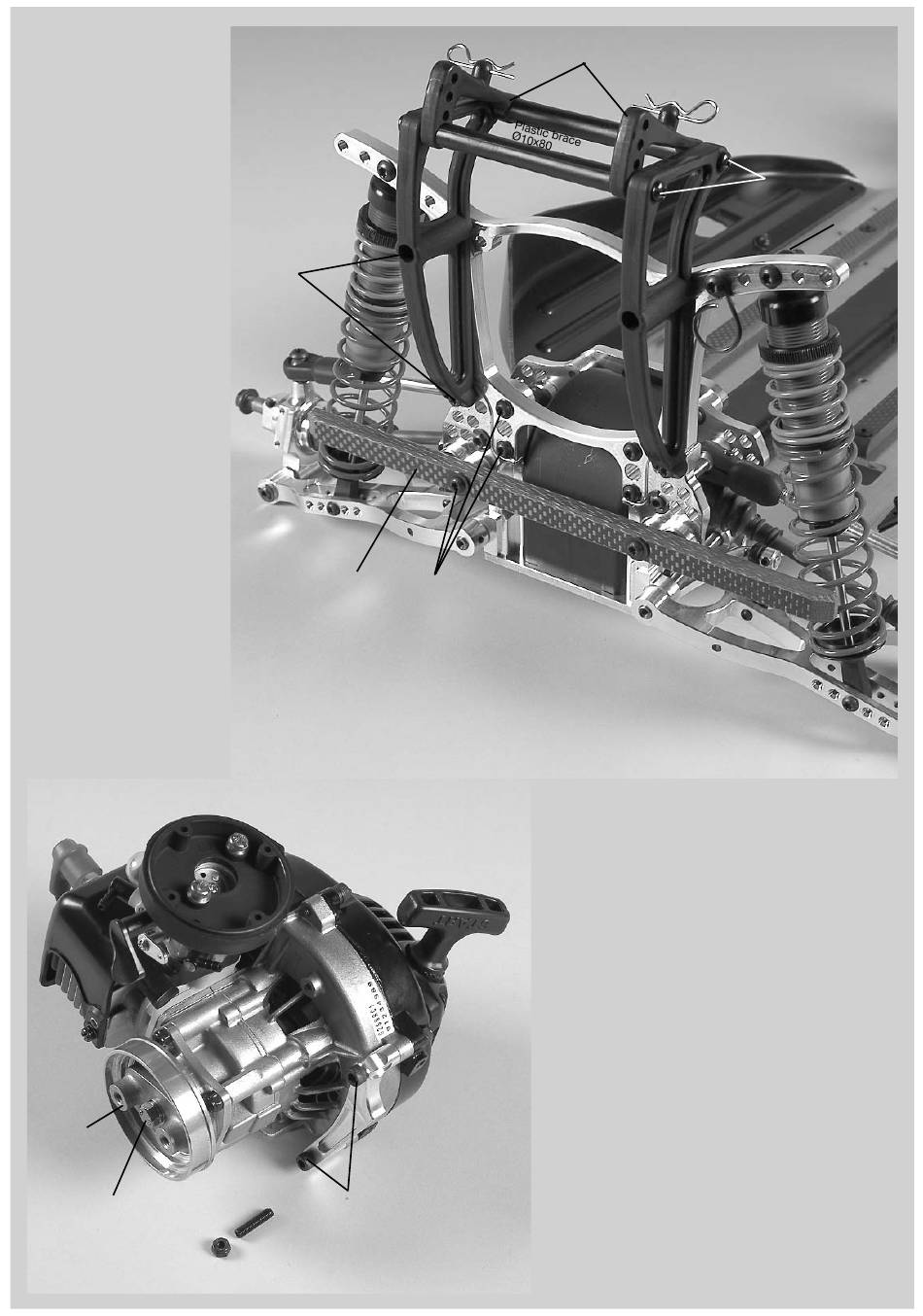

Position 15
Parts are in
bag B,E+M
Rear alum.
damper
plate
Screw
M4x14
Rear shock
absorber
mounted
Screw
M4x20
Rear CFRP
Screw
damper pro-
M4x18
tection
Disk Ø4,3
Alum. engine
mount small
Headless
pin M5x20
Screw
M5x40
Adjusting part
spoiler mount
Spoiler
mount
Position 16
1. Mount the small alum. engine mount to the engine using
Parts are in
M5x40 pan head screws and counter with M5 stop nuts.
bag H
For this purpose the original screws of the engine have to
be removed.
2. Apply screw retention lacquer on the four headless pins
M5x20 and screw them into the engine housing until they
poke out of the housing approx. 9mm.
3. Press the engine flange for the engine quick fastening
(with the cutout facing the cylinder) on the housing or
respectively the headless pins and fix it using M5 stop
nuts.
4. Fix the carrier for the clutch shoes to the engine using
an M6x14 hexagon screw with pressed on disk.
Stop
Hint: If the FG piston stop pin Item N°. 08542 is used, the
nut M5
assembling of the clutch shoe carrier will be considerably
simplified.
Screw
4,2x32
Disk Ø5,3
Stop nut
M5
Screw
M5x10
Screw
M5x25
Mount for
pull start
