FG Modellsport Leopard 4 Competition Mounting Instructions page 13

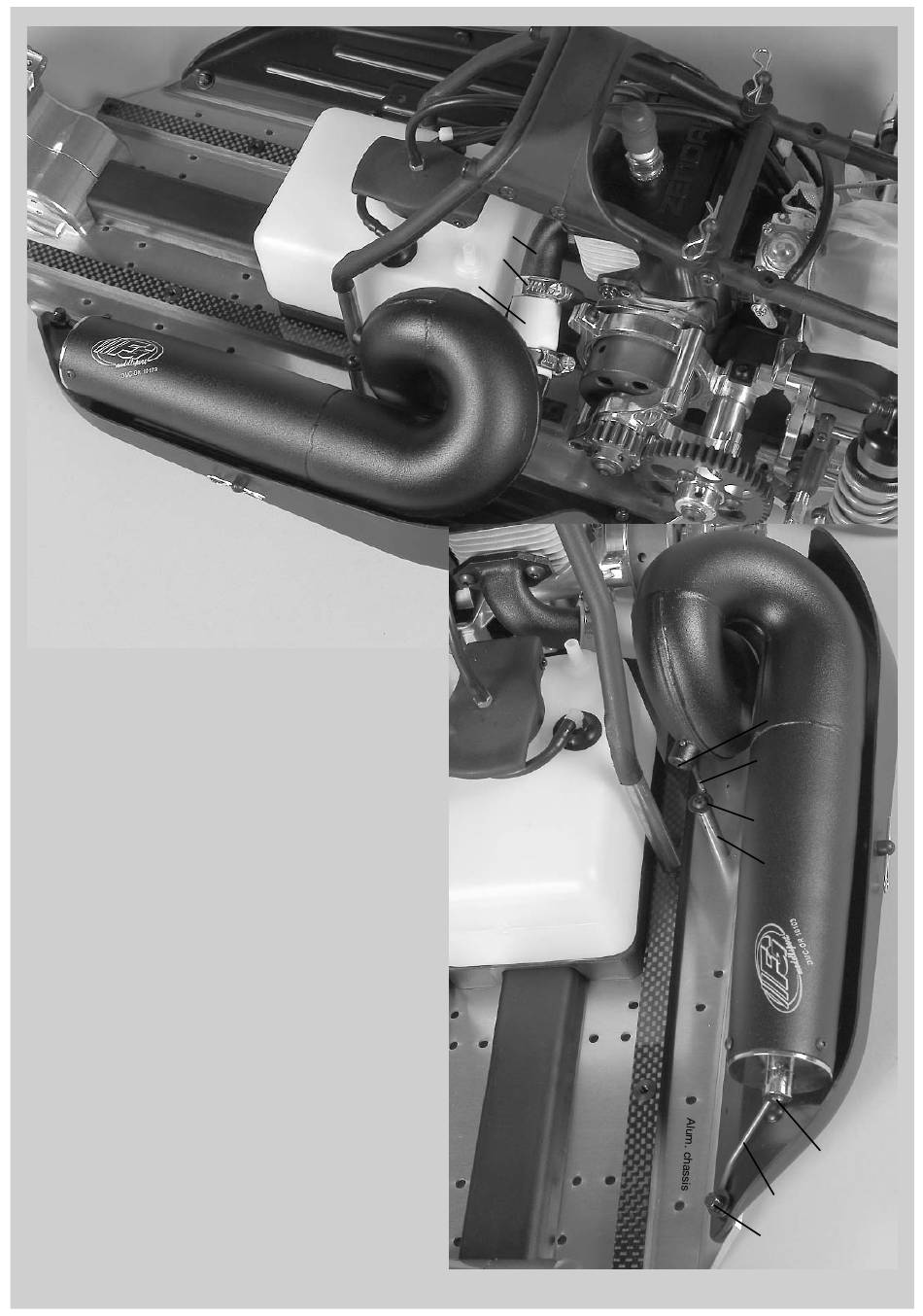

Position 24
Parts are in
bag O
FG Steel-Power
Tuning pipe
Heat one end of the exhaust hose slightly
with a lighter and press it on the FG Steel-
Power Tuning pipe as shown in position 24,
then fix it using a hose clamp.
Heat up the exhaust hose once again and
press it with the second hose clamp on the
manifold, then fasten it.
1. Fix the alum. distance Ø8x37,5 to the alum. chassis using M4x14
countersunk screw. Bend the fixing wire for the FG Steel-Power
Tuning pipe as illustrated in position 25 and fasten it at the alum.
distance Ø8x37,5 using M4x10 pan head screw and disk Ø4,3.
2. Bend the second fixing wire for the FG Steel-Power Tuning pipe as
illustrated in position 25 and fix it at the alum. chassis in the front left
side by using M4x14 pan head screw, disk Ø4,3 and stop nut M4.
Clamp the fixing wire using an M5x5 headless pin. Adjust and fix the
Tuning pipe with both fixing wires in a way that the pipe does not
touch other parts.
All metric screws need to be secured with thread lock fluid.
Manifold
Hose clamp
Exhaust hose
Position 25
Parts are in
bag O
FG Steel-Power
Tuning pipe
Headless
pin M5x5
Fixing wire
for silencer
Screw M4x10
Disk Ø4,3
Alum.
distance
Ø8x37,5
Headless
pin M5x5
Fixing wire
for silencer
Screw M4x14
Disk Ø4,3
Stop nut M4
