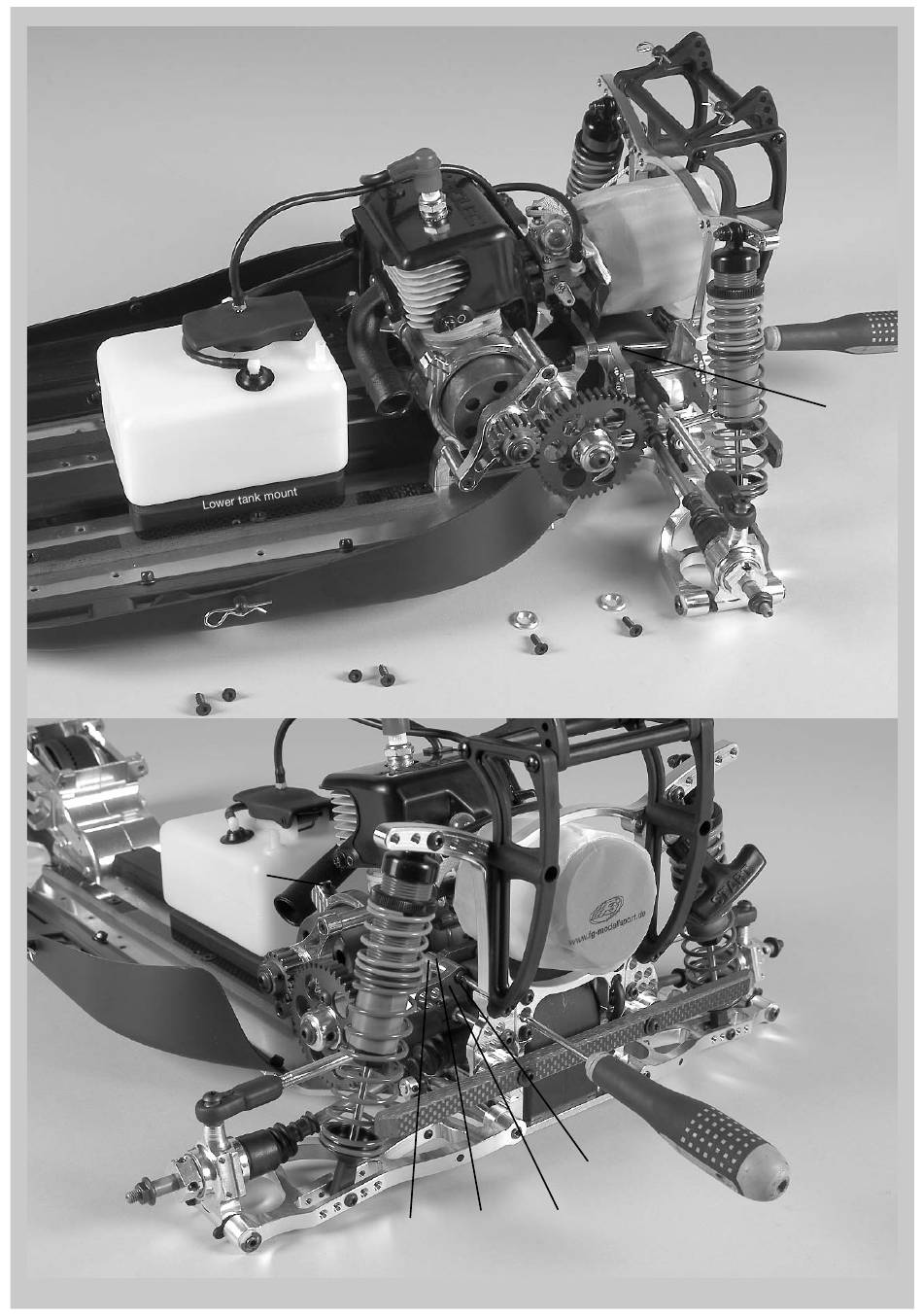

FG Modellsport Leopard 4 Competition Mounting Instructions page 11

1. Insert the premounted engine in the alum. chassis as illustrated in position 13 and fix it
using an M4x25 pan head screw and disk Ø4,3 through the left alum. rear axle mount, also
fix it with the alum. connecting brace at the alum. gear flange-engine mount. Just apply the
M4x25 pan head screw, do not tighten yet (see also position 20).
2. Mount the pre-assembled engine in the alum. chassis using M4x14 countersunk screws
and engine fixing disks.
3. Fix the tank on the lower tank mount using M4x6 countersunk screws as shwon in posi-
tion 19, use medium screw retention.
4. Mount the pre-assembled tank with lower tank mount
on the alum. chassis using 4,2x16 countersunk screws.
Tank complete
Screw
4,2x16
Position 20
Parts are in
bag I
2. Tighten the M5x14 pan
head screw at the alum.
gear flange-engine mount.
All metric screws need to be secured with thread lock fluid.
Screw
M4x6
Screw
M5x14
Alum. gear flan-
ge-engine mount
Engine
fixing disk
Screw
M4x14
Screw
4,2x16
Screw
M4x25
Disk
Ø4,3
Alum. rear
Alum. con-
axle mount
nencting
left
brace
Position 19
Parts are in
bag H+K
Screw
M4x25
Disk
Ø4,3
1. Tighten the M4x25 pan
head screw after tightening
the engine fixing screws.
