FG Modellsport Leopard 4 Competition Mounting Instructions page 12

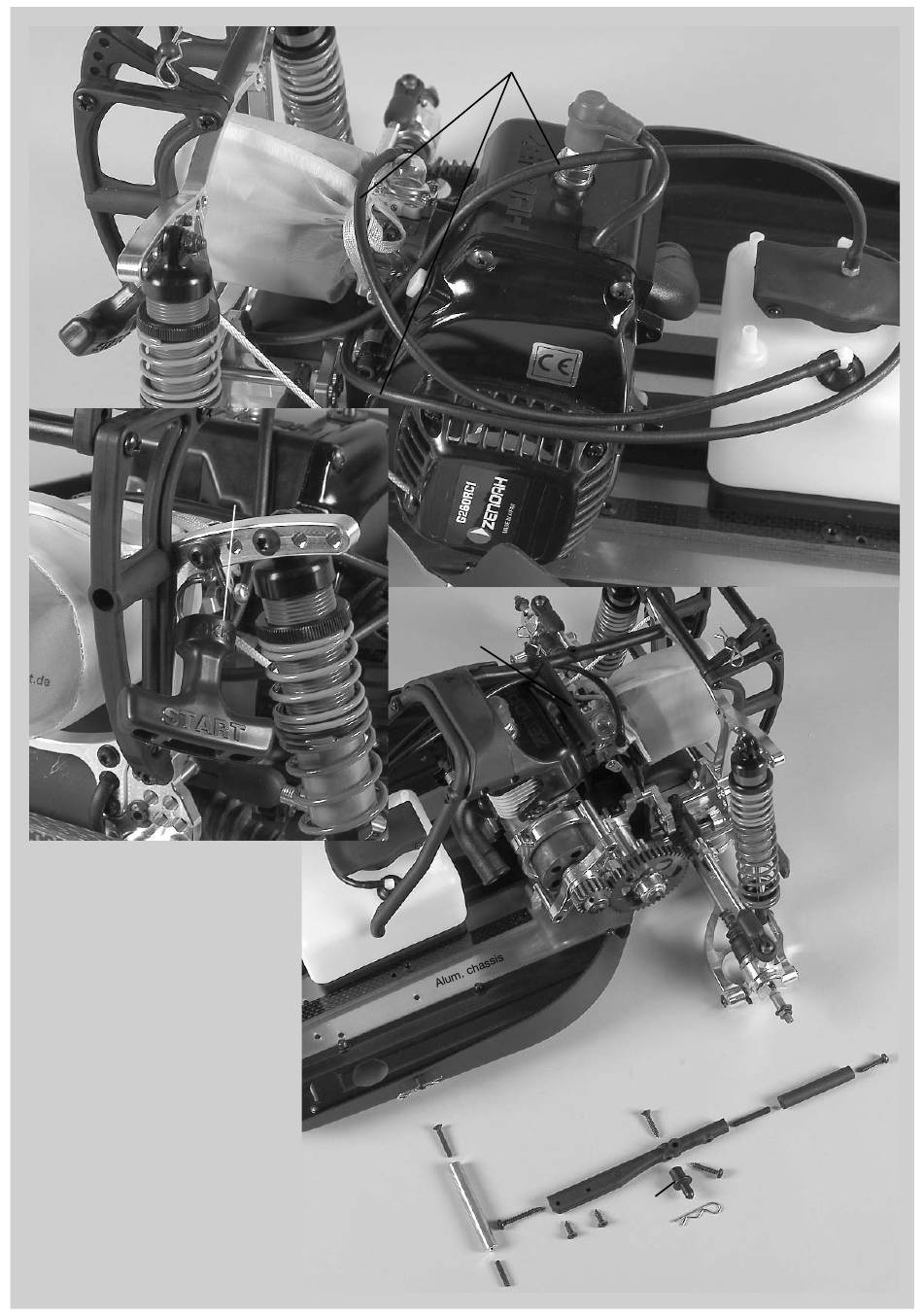

1. Screw M4x20 headless pins centric into
the short roll bar and screw the alum.
distances Ø10x70mm on top, then mount
the complete roll bar through the CFRP
chassis stiffening to the alum. chassis
using M4x25 countersunk screws.
2. Screw M5x30 headless pins centric into
the plastic braces Ø10x60 as shown in
position 23, then screw on the long plastic
braces.
3. Fix the body mounts from the bottom at
the long plastic braces into the front boring
using 4,2x22 countersunk screws and
press the body clips on. Mount the long
pre-assembled plastic braces to the rear
alum. damper plate and to the short front
roll bar using 4,2x22 and 4,2x32 pan head
screws as shown in position 23.
4. Fix the short plastic brace to the long
plastic brace using 4,2x22 pan head
screws as illustrated in position 23.
5. Assemble the plug protection at the long
plastic braces using 4,2x13 countersunk
screws.
Return
hose
Position 22
Parts are in
bag B
Clip the rope star-
ter in the holder
Roll bar
short
Install fuel hoses as illustrated and
shorten if necessary.
Plastic
brace short
Plug pro-
tection
Screw
M4x25
Plastic
brace long
Alum.
Screw
distance 4,2x32
Ø10x70
Screw
4,2x13
Headless pin
M4x20
Venting hose
Intake hose
Headless pin
Screw
M5x30
4,2x22
Screw
4,2x22
Body
mount
Body clip
Position 21
Parts are in
bag K
Position 23
Parts are in
bag M
Alum.
damper
plate rear
Screw
4,2x22
Plastic brace
Ø10x60
