FG Modellsport Leopard 4 Competition Mounting Instructions page 19

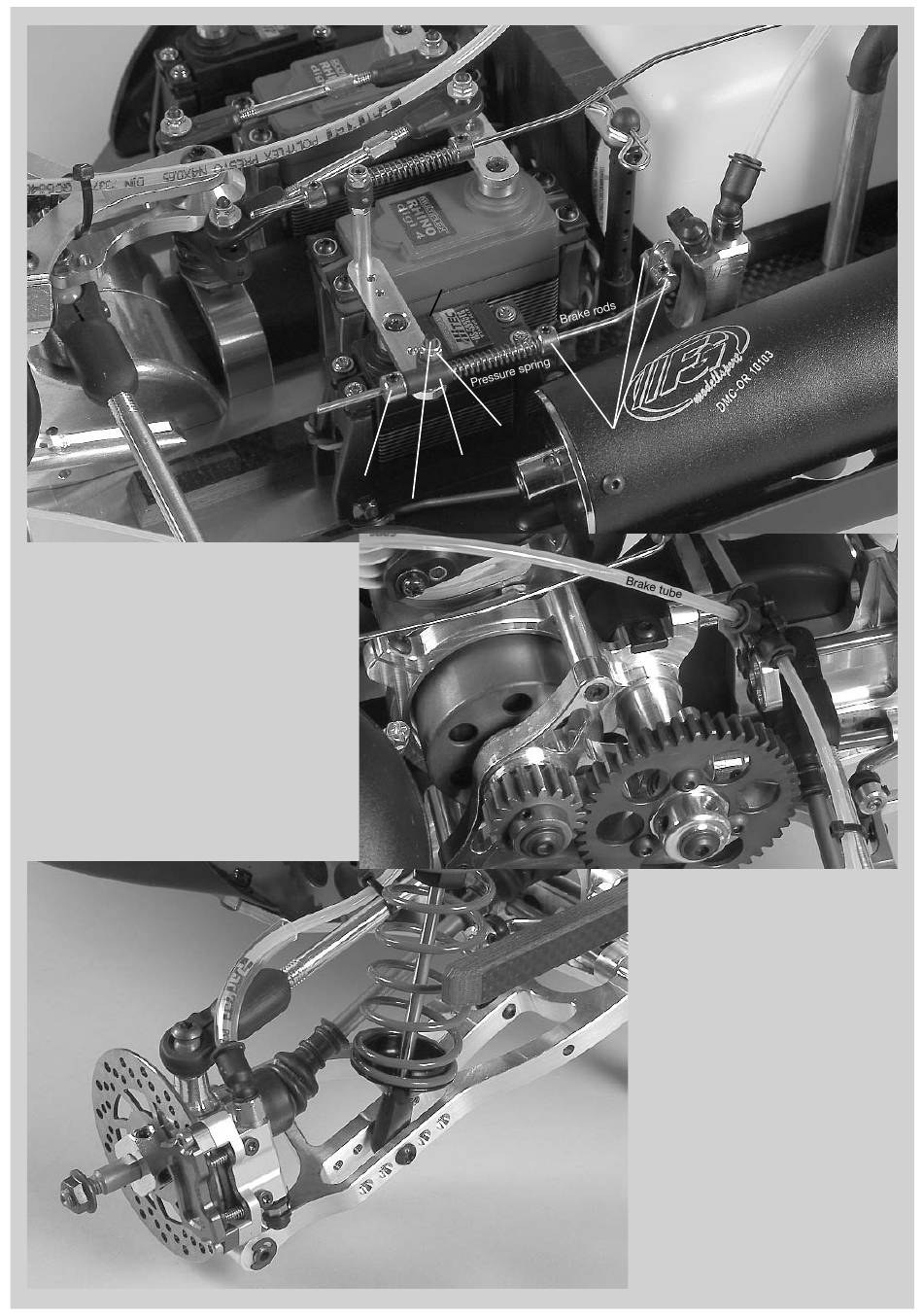

Rear disk brake
Position 43
Parts are in
bag Q
The brake tube at the front respectively the rear ax-
le must not be squeezed or pulled by chassis com-
ponents during deflecting or steering.
Position 45
Parts are in
bag Q
Protective hose
Brake disk
Throttle/Brake servo
Servo
arm
Collet
Screw
M3x18
Cable clamp
Angle con-
nection
Screw
M3x30
Brake caliper
Stop
nut M3
Collet
Push rod
grommet
Rear disk brake
Brake tube to
the rear wheels
Angle con-
nection
Protection
cap
Main brake
cylinder
Position 44
Parts are in
bag Q
Cable clamp
T-piece
Cable clamp
5. Install the brake rods with pressure
spring and collets as described in position
40 and 43. Left side in driving direction for
the rear axle, right side for the front axle.
According to the mounting height and the
size of the servos the brake rods need to
be bent slightly towards the main brake
cylinder. Bend the brake rods according to
the circumstances. Nevertheless it should
run smoothly and should not touch
anywhere.
6. Fill and bleed the brake system. For fil-
ling and bleeding please refer to the enclo-
sed brake manual.
7. Place rubber protective caps on the val-
ves.
8. Impress securing rings into the angle
connections and T-pieces
