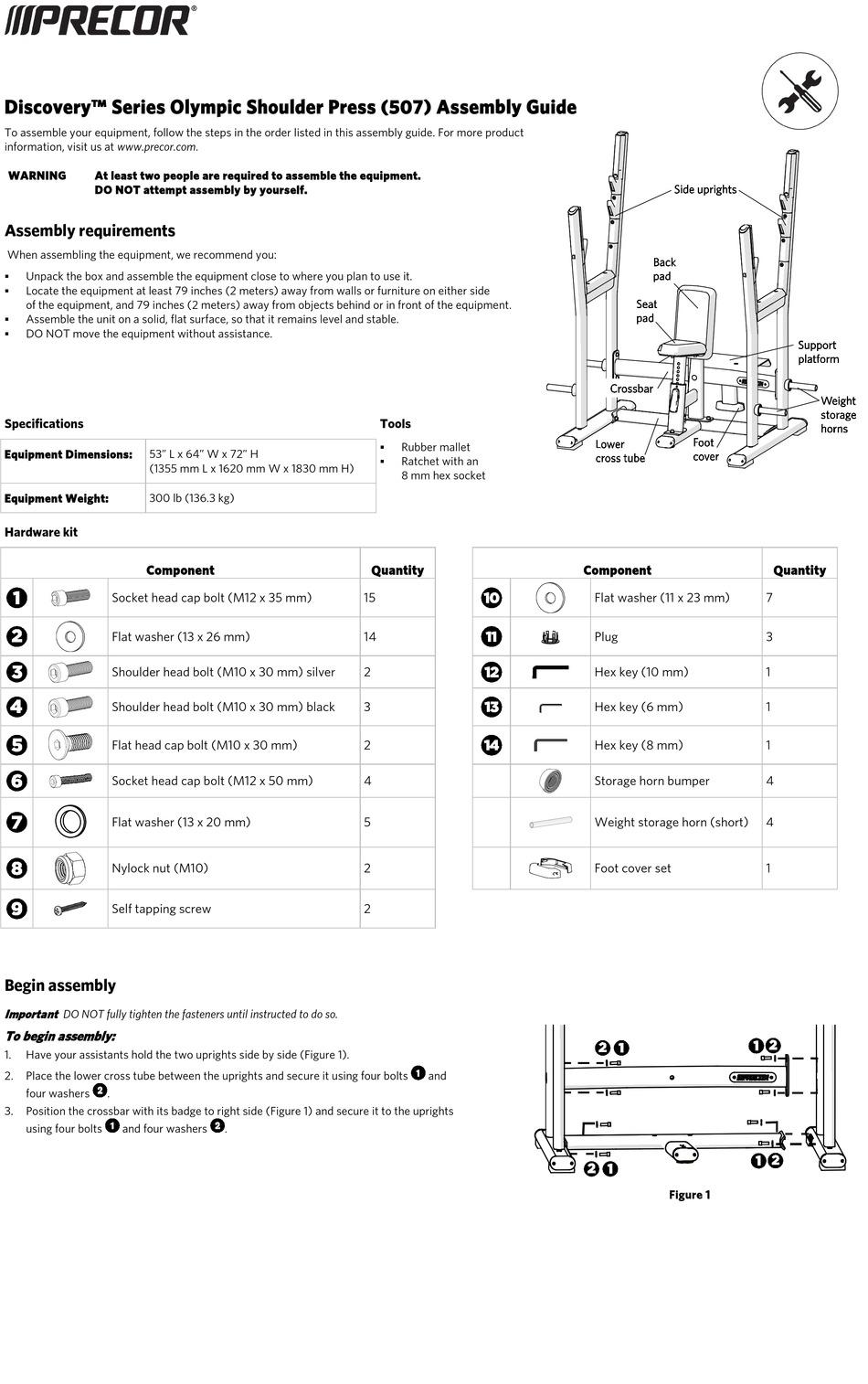

Discovery™ Series Olympic Shoulder Press (507) Assembly Guide
To assemble your equipment, follow the steps in the order listed in this assembly guide. For more product
information, visit us at www.precor.com.
WARNING At least two people are required to assemble the equipment.
DO NOT attempt assembly by yourself.

Assembly requirements

When assembling the equipment, we recommend you:
Unpack the box and assemble the equipment close to where you plan to use it.

Locate the equipment at least 79 inches (2 meters) away from walls or furniture on either side

of the equipment, and 79 inches (2 meters) away from objects behind or in front of the equipment.
Assemble the unit on a solid, flat surface, so that it remains level and stable.

DO NOT move the equipment without assistance.

Specifications
Equipment Dimensions: 53" L x 64" W x 72" H
(1355 mm L x 1620 mm W x 1830 mm H)
Equipment Weight: 300 lb (136.3 kg)
Hardware kit
Component
Socket head cap bolt (M12 x 35 mm)
Flat washer (13 x 26 mm)
Shoulder head bolt (M10 x 30 mm) silver
Shoulder head bolt (M10 x 30 mm) black
Flat head cap bolt (M10 x 30 mm)
Socket head cap bolt (M12 x 50 mm)
Flat washer (13 x 20 mm)
Nylock nut (M10)
Self tapping screw
Begin assembly
Important
DO NOT fully tighten the fasteners until instructed to do so.
To begin assembly:
1. Have your assistants hold the two uprights side by side (Figure 1).
2. Place the lower cross tube between the uprights and secure it using four bolts
four washers .
3. Position the crossbar with its badge to right side (Figure 1) and secure it to the uprights
using four bolts and four washers
Tools


Quantity
15
14
2
3
2
4
5
2
2
.
Rubber mallet
Ratchet with an
8 mm hex socket
and
Component
Flat washer (11 x 23 mm)
Plug
Hex key (10 mm)
Hex key (6 mm)
Hex key (8 mm)
Storage horn bumper
Weight storage horn (short)
Foot cover set
Figure 1
Quantity
7
3
1
1
1
4
4
1
