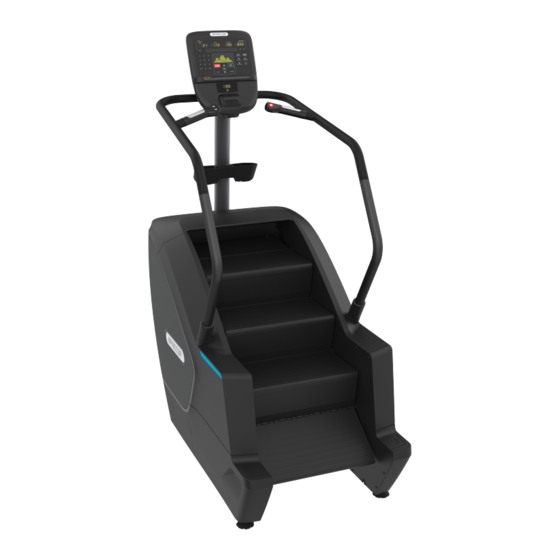

Precor Stairclimber 800 Assembly Manual

Precor Stairclimber 800 Assembly Manual

Advertisement

Quick Links

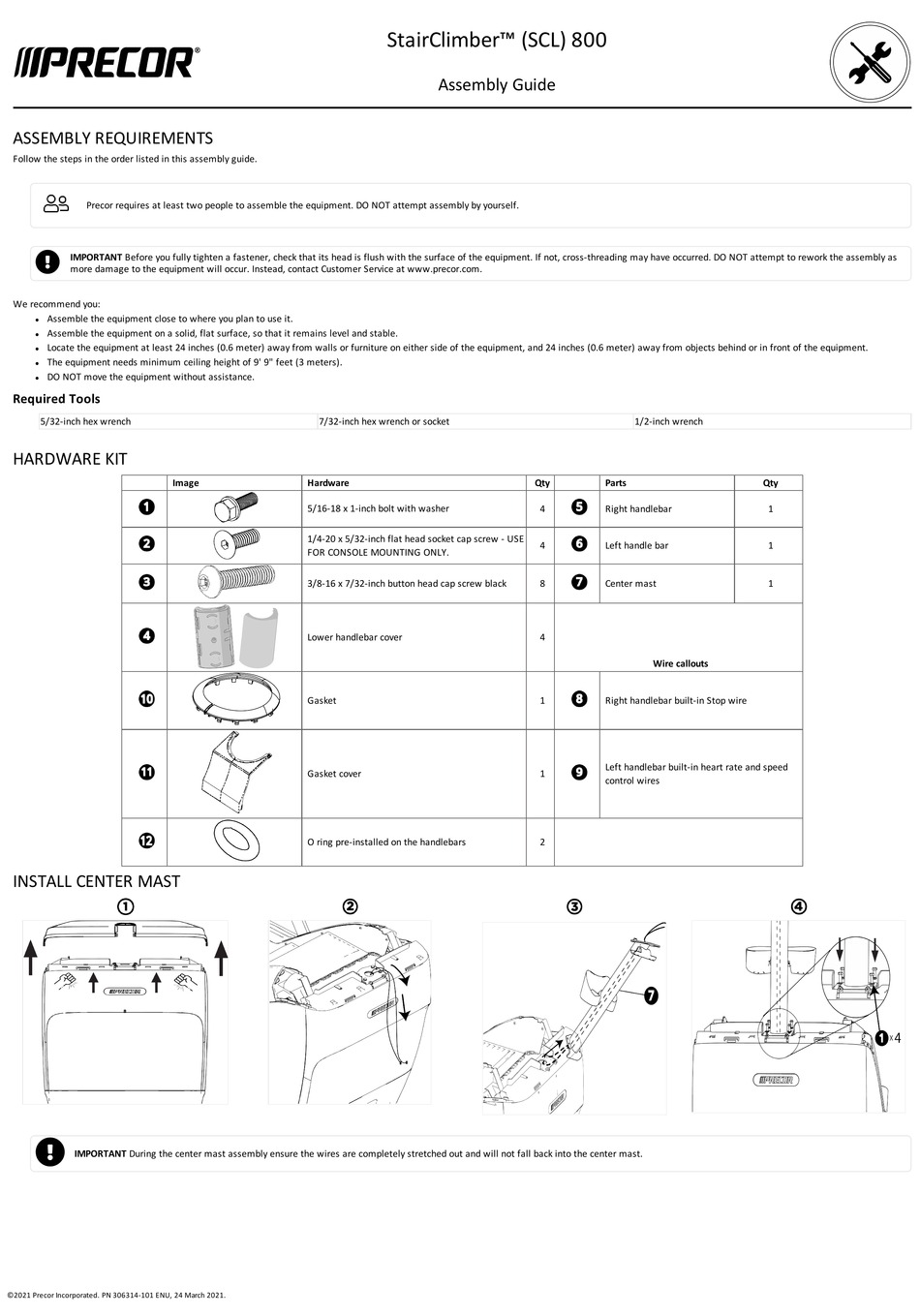

ASSEMBLY REQUIREMENTS
Follow the steps in the order listed in this assembly guide.
Precor requires at least two people to assemble the equipment. DO NOT attempt assembly by yourself.
IMPORTANT Before you fully tighten a fastener, check that its head is flush with the surface of the equipment. If not, cross-threading may have occurred. DO NOT attempt to rework the assembly as
more damage to the equipment will occur. Instead, contact Customer Service at www.precor.com.
We recommend you:
Assemble the equipment close to where you plan to use it.
l
Assemble the equipment on a solid, flat surface, so that it remains level and stable.
l
Locate the equipment at least 24 inches (0.6 meter) away from walls or furniture on either side of the equipment, and 24 inches (0.6 meter) away from objects behind or in front of the equipment.
l
The equipment needs minimum ceiling height of 9' 9" feet (3 meters).
l
DO NOT move the equipment without assistance.
l
Required Tools
5/32-inch hex wrench
HARDWARE KIT
INSTALL CENTER MAST
IMPORTANT During the center mast assembly ensure the wires are completely stretched out and will not fall back into the center mast.
©2021 Precor Incorporated. PN 306314-101 ENU, 24 March 2021.
StairClimber™ (SCL) 800
Assembly Guide
7/32-inch hex wrench or socket
Hardware
5/16-18 x 1-inch bolt with washer
1/4-20 x 5/32-inch flat head socket cap screw - USE
FOR CONSOLE MOUNTING ONLY.
3/8-16 x 7/32-inch button head cap screw black
Lower handlebar cover
Gasket
Gasket cover
O ring pre-installed on the handlebars
1/2-inch wrench
Qty
Parts
4
Right handlebar
4
Left handle bar
8
Center mast
4
Wire callouts
1
Right handlebar built-in Stop wire
Left handlebar built-in heart rate and speed
1
control wires
2
Qty
1
1
1
