OPERATION INSTRUCTIONS
AIRPAD MACHINE
AP250
50.3025.01
IMPORTANT!
Read these instructions carefully before installation and
before using this machine for the first time.
This will reduce your risk of injuring yourself or damaging
your machine.
Copying all or part of this manual in any way or form is prohibited without prior written consent from its author. © 2012
website: www.fromm-pack.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fromm AP250
Summary of Contents for Fromm AP250

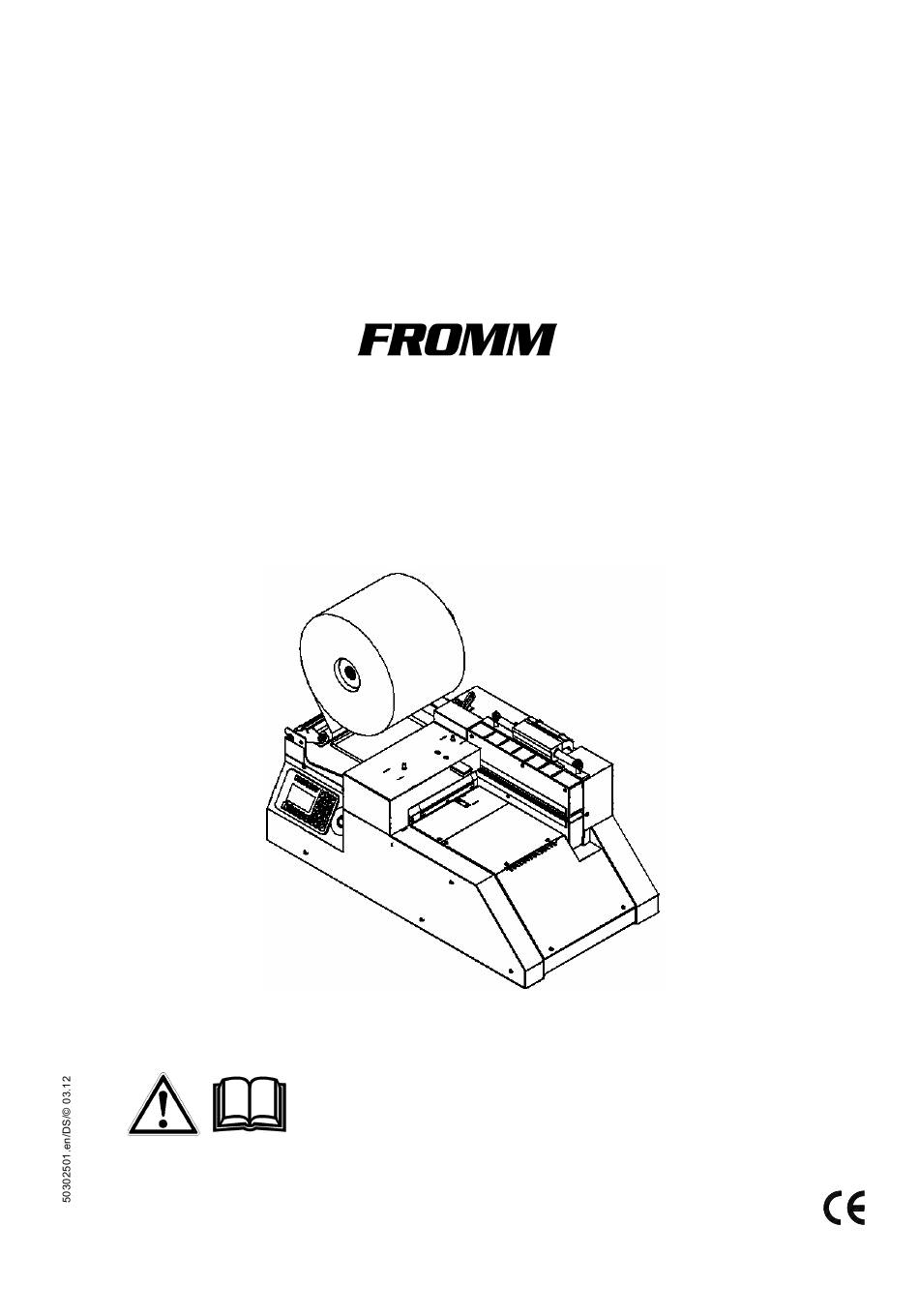

- Page 1 OPERATION INSTRUCTIONS AIRPAD MACHINE AP250 50.3025.01 IMPORTANT! Read these instructions carefully before installation and before using this machine for the first time. This will reduce your risk of injuring yourself or damaging your machine. Copying all or part of this manual in any way or form is prohibited without prior written consent from its author. © 2012...
-
Page 2: Table Of Contents
Activate/deactivate the container function ......... . 18 RECOMMENDATIONS FOR PREVENTIVE MEASURES FOR THE USER SHUTDOWN MODES ALARM DISPLAYS Copying all or part of this manual in any way or form is prohibited without prior written consent from its author. © 2012 website: www.fromm-pack.com... - Page 3 MAINTENANCE OPERATIONS THAT MUST BE PERFORMED EXCLUSIVELY BY QUALIFIED PERSONNEL DECOMMISSIONING INSTRUCTIONS FOR EMERGENCY SITUATIONS Copying all or part of this manual in any way or form is prohibited without prior written consent from its author. © 2012 website: www.fromm-pack.com...
-
Page 4: General
50 micron PE/PE and PE/PA folded film from FROMM. The use of this machine is reserved for professional operators who have received appropriate instructions and training. • This manual is to be used exclusively with the AP250 machine, designed to produce air pillows (Airpad), as mentioned on this first page and by FROMM Airpad. •... -
Page 5: Introduction
Spare parts must be ordered directly from an authorized supplier. FROMM is always available to provide you with assistance and reminds you that failure to comply with the information provided in this document shall immediately void your machine warranty. -
Page 6: Unauthorized Use

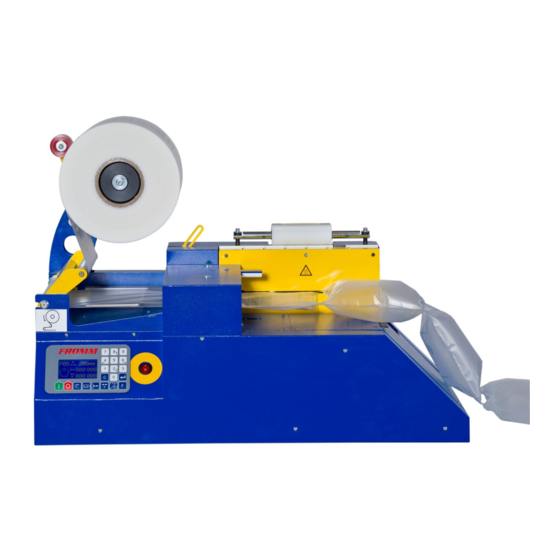

DESCRIPTION AND OPERATION The AP250 is a machine designed to produce air pillows for product protection and void-filling. The machine uses film supplied by FROMM or manufactured to its specifications. Heat seals are created using variable-heat jaws. -
Page 7: Explanation Of Machine Identification Label
Øint. 76mm Øest. 280mm max. CAUTION: do not use film that has not been supplied by FROMM, or that is of a different thickness than specified without contacting the manufacturer prior. Copying all or part of this manual in any way or form is prohibited without prior written consent from its author. © 2012... -
Page 8: Packaging
Remove any mounts used to secure the machine to the platform, and remove the machine as described below. Copying all or part of this manual in any way or form is prohibited without prior written consent from its author. © 2012 website: www.fromm-pack.com... -
Page 9: Moving The Unpacked Machine
Do not stand near the lifting or moving areas under any circumstances. MACHINE INSTALLATION The machine features adjustable feet, and may be wheeled using the trolley provided by FROMM, otherwise, it must be positioned on a flat surface and leveled using the appropriate resistance. The machine must have a suitable container to collect the air pillows produced, or the dispenser or other equipment supplied by FROMM. -
Page 10: Information Regarding The Electrical System
The new program flashes after being entered until it has been confirmed. ENTER - Confirms and stores the flashing value. Copying all or part of this manual in any way or form is prohibited without prior written consent from its author. © 2012 website: www.fromm-pack.com... -
Page 11: Starting The Machine
The machine will stop immediately, and all parts will be disconnected from the power source. Copying all or part of this manual in any way or form is prohibited without prior written consent from its author. © 2012 website: www.fromm-pack.com... -
Page 12: Film Roll Loading
Guide the film around the metal roller on the arm and then between the frame and the lower roller. 18.4.2 Turn around the lower roller. Copying all or part of this manual in any way or form is prohibited without prior written consent from its author. © 2012 website: www.fromm-pack.com... -
Page 13: Inserting In The Guide
(transport rollers open). 18.5.3 Turn lever A as in the photo (transport rollers closed). Copying all or part of this manual in any way or form is prohibited without prior written consent from its author. © 2012 website: www.fromm-pack.com... -
Page 14: Film Feed
18.6.3 Press key C to return to the main menu. Copying all or part of this manual in any way or form is prohibited without prior written consent from its author. © 2012 website: www.fromm-pack.com... -
Page 15: Selecting A Program
Film thickness 42µm Program 18 Air pillow length 400mm / 15.748" Film type PE/PA Film thickness 42µm Copying all or part of this manual in any way or form is prohibited without prior written consent from its author. © 2012 website: www.fromm-pack.com... -
Page 16: Setting The Number Of Air Pillows Per Mat
Press the button to confirm The new value has been saved. Copying all or part of this manual in any way or form is prohibited without prior written consent from its author. © 2012 website: www.fromm-pack.com... -
Page 17: Possible Machine Settings
After approximately 30 seconds without changing the value, the display will automatically return to the main menu. Copying all or part of this manual in any way or form is prohibited without prior written consent from its author. © 2012 website: www.fromm-pack.com... -
Page 18: Setting The Heat-Sealing Temperature
After approx. 30 seconds without changing the value, the display will automatically return to the main menu. Copying all or part of this manual in any way or form is prohibited without prior written consent from its author. © 2012 website: www.fromm-pack.com... -
Page 19: Recommendations For Preventive Measures For The User
Maintenance operations for the electrical system must be performed exclusively by qualified and authorized personnel. Copying all or part of this manual in any way or form is prohibited without prior written consent from its author. © 2012 website: www.fromm-pack.com... - Page 20 Rear transversal heat-sealing. number. Check transversal lifting unit. Call Technical Assistance and indicate the error number. Copying all or part of this manual in any way or form is prohibited without prior written consent from its author. © 2012 website: www.fromm-pack.com...
-
Page 21: Information Regarding Noise
Caution, danger: presence of components that may crush or cut. Caution, danger: hot surfaces. Do not perform any operations before disconnecting machine voltage. Copying all or part of this manual in any way or form is prohibited without prior written consent from its author. © 2012 website: www.fromm-pack.com... -
Page 22: Safety Guards
The following conditions must always be met, unless otherwise indicated elsewhere in this manual. • This machine was delivered by FROMM AIRPAD AG and may be used to create air pillows for packaging, as indicated in the machine description and the technical data. -
Page 23: Maintenance
Fixed and mobile protection The AP250 features fixed guards to prevent the upper limbs from accessing hazardous areas. In particular, fixed guards have been fitted to protect the heat-seal bars, which move vertically and may reach a surface temperature of 160°C. -
Page 24: Maintenance Operations That Must Be Performed Exclusively By Qualified Personnel
MAINTENANCE OPERATIONS THAT MUST BE PERFORMED EXCLUSIVELY BY QUALIFIED PERSONNEL Any operation performed to correct an anomaly must be performed by FROMM AIRPAD AG Technical Service. All preventive maintenance or breakdown repair operations not described in this manual must be performed by employees of FROMM AIRPAD AG or by previously authorized personnel.
