Fromm P328 M Service Manual

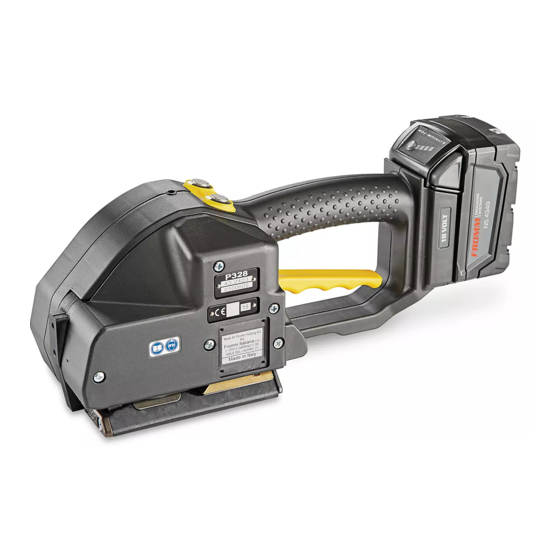

Battery - powered plastic strapping tool
Hide thumbs
Table of Contents

Advertisement

Quick Links

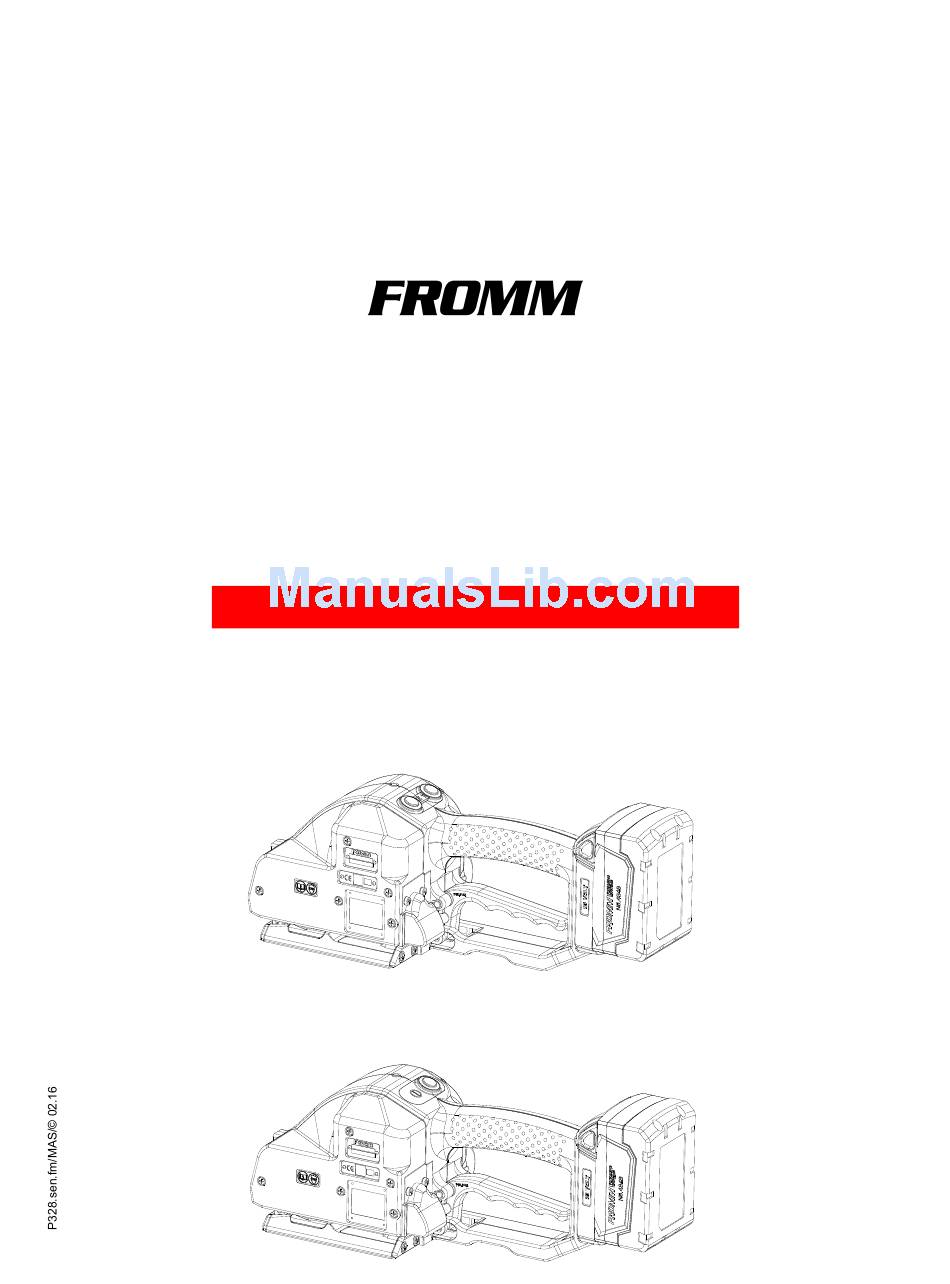

SERVICE MANUAL
BATTERY - POWERED
PLASTIC STRAPPING TOOL
MODEL
P328 M/HA / P328 A/A
Purchase at Allstrap (866) 779-2673
Manual for authorized dealers and service points

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P328 M and is the answer not in the manual?

Questions and answers

Miguel
April 1, 2025

The FROMM P328 will not operate more than once, after operating there is a red light that comes on, then after resetting (removing and replacing the battery) it works again but the same thing happens

0
1 comments:
Mr. Anderson
April 1, 2025

A red light on the Fromm P328 M after one operation could indicate a battery issue, such as an empty or defective battery. It may also point to contact problems, a defective circuit board, or internal wiring issues. Check the battery charge, ensure proper contact, and inspect for damaged or defective parts.

This answer is automatically generated

1
Art Burnside
January 22, 2025

We are at -8 deg and the tool doen't want to operate what can I do

0
1 comments:
Mr. Anderson
February 10, 2025

The Fromm P328 M tool is not operating at -8 degrees because its recommended ambient working temperature range is between -10°C and 45°C (14°F to 113°F), with optimal performance between 15°C and 20°C (59°F to 68°F). Although -8 degrees is technically within the operational range, the tool may not perform properly as it is near the lower limit of the specified range, where performance could be affected.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Fromm P328 M

Summary of Contents for Fromm P328 M

  • Page 1 SERVICE MANUAL BATTERY - POWERED PLASTIC STRAPPING TOOL MODEL P328 M/HA / P328 A/A Purchase at Allstrap (866) 779-2673 Manual for authorized dealers and service points...
  • Page 2 SERVICE MANUAL P328 M/HA / P328 A/A DRAWINGS P328 M/HA / P328 A/A SPARE PARTS LISTS P328 M/HA / P328 A/A Type independent spare parts Type dependent spare parts MANUAL P328 M/HA Technical Data Chart of Types Exchange of wearing parts...

  • Page 3: Table Of Contents

    Chart of types P328 M / HA ........

  • Page 4: Accessories

    AUS, NZ (..) = an adaptor N52.2102 is required. 1.1.3 Battery tester Information to the Battery tester you will get by FROMM System GmbH. (see 1.10 SERVICE ADDRESS) 1.1.4 Memory reader for circuit board To read the memory information of the tools circuit board the reader N7.5154 can be ordered.

  • Page 5: Fan

    Purchase at Allstrap (866) 779-2673 For working in alternating positions a turnable suspension bracket with screws and washers can be ordered under item number P32.0223. P32.0223 P32.8302 P32.8301 N1.2163 N1.5105 Mobilux EP2 P35.2069 N2.5623 P35.2073 1.1.6 Fan In order to avoid overheating of the motor we recommend at environmental temperatures above 40°C / 104°F using the optional fan P32.0228.

  • Page 6: Electric Schematic Semi Automatic Els.1082

    Purchase at Allstrap (866) 779-2673 1.2.2 Electric schematic Semi Automatic ELS.1082 black black black 18VDC yellow violett brown Hall3 Hall2 Hall1 blue optional Fan black Manual / 1/2 Auto 1.2.3 Connecting plan Semi Automatic P32.8150 N51.1127 N51.2194 black blue black blue P32.8148 P33.2155...

  • Page 7: Electric Schematic Automatic Els.1083

    Purchase at Allstrap (866) 779-2673 1.2.4 Electric schematic Automatic ELS.1083 black black black 18VDC yellow violett 1(C) brown Hall3 4(N0) Hall2 Hall1 blue optional Fan black Auto / Auto 1.2.5 Connecting plan Automatic P32.8154 N51.1127 N51.2194 black blue black blue P32.8151 N5.2382 P33.2155...

  • Page 8: Conversion Parts P328

    Purchase at Allstrap (866) 779-2673 1.3 CONVERSION PARTS P328 Conversion parts for changing of strap width and strap thickness 43.2422 43.2423 43.2424 43.2432 43.2453 43.2454 43.2461 43.2462 Semi automatic Automatic 43.2622 43.2623 43.2624 43.2632 43.2653 43.2654 43.2661 43.2662 12 x 12.7 x 12.7 x 13 x...

  • Page 9: Periodic Maintenance And Control

    Purchase at Allstrap (866) 779-2673 1.4 PERIODIC MAINTENANCE AND CONTROL (Carry out 12- months cycles doing one shift work. Doing more shift work respectively more often.) To avoid damages on the motor shaft the two needle free wheelings N3.4509 and N3.4520 have to be replaced after 80 000 strapping cycles.

  • Page 10: Troubleshooting

    Purchase at Allstrap (866) 779-2673 1.4.2 Troubleshooting Ensure before each tool repair that the battery is charged and the tool’s specific strap is used SYMPTOM CAUSE REMEDY Tool doesn’t work at all Battery is empty or defective Charge or replace battery Contact problems caused by a broken Replace battery battery housing...
  • Page 11 Purchase at Allstrap (866) 779-2673 SYMPTOM CAUSE REMEDY Tool doesn’t weld Welding gripper P32.1511 is dirty or Replace or clean welding gripper, worn don’t use any hard objects for this (see operation manual P328) Welding stop gripper P32.8107 is dirty Replace or clean welding stop gripper, or worn don’t use any hard objects for this...

  • Page 12: Battery Test

    Purchase at Allstrap (866) 779-2673 1.4.3 Battery test The battery should be checked while each maintenance with a battery tester. Information to the Battery tester you will get by FROMM System GmbH. (see 1.10 SERVICE ADDRESS) • Li-Ion-Batteries 18V / (4,0Ah) must be replaced at a capacity less than approx. 60% (2,4 Ah) 1.4.4 Checklist...

  • Page 13: Glueing Rules

    Purchase at Allstrap (866) 779-2673 Eccentric shaft P32.8121, Spring slide P32.8116, Spring bolt P32.8117 and the Pressure spring N21.5138 have to be greased as follows: P32.8116 N21.5138 P32.8121 P32.8117 Mobilux EP2 Lubrication interval: While each maintenance or after 12 months at the latest. 1.4.6 Glueing rules P32.8131 P32.2016...

  • Page 14: Assembly Information

    Purchase at Allstrap (866) 779-2673 P32.8101 P32.8137 The bolt P32.8137 has to be glued into the body P32.8101 using Loctite 603. The screws N1.1305 have to be glued with Loctite 222. N1.6504 N1.1305 P32.8159 The parallel pin N2.2119 has to be glued into the end cover P32.8159 with Loctite 603.
  • Page 15 Purchase at Allstrap (866) 779-2673 Pay attention to the mounting position of the needle free wheelings N3.4509 and N3.4520. The rolling direction is stamped in at the front side of the free wheelings. P32.8138 P32.8139 N3.4520 N3.4509 P32.8134 N3.4509 Position of the joint from slide bearings Pay attention to the position of the joint from the slide bearing N31.3115 (see drawing).
  • Page 16 Purchase at Allstrap (866) 779-2673 Pay attention to the position of the joint from the slide bearings N3.3172 and N3.3150. (see drawing) N3.3150 P32.8159 position joint press in measure parallel pin N2.2119 into end cover P32.8159 N2.2119 N3.3172 P32.8131 3 X N21.2145 position joint P32.8131 press in pins...
  • Page 17 Purchase at Allstrap (866) 779-2673 Mounting of the optional fan P32.0228: Unscrew the motor housing and remove it. Disconnect the plugs of the motor P32.0213 from the circuit board. Remove the motor. Insert the fan N51.5464 at the prepared place. The cable shows up to the right. Attach the corresponding hole of the fan to the protruding pin of the motor housing P32.8103.
  • Page 18 Laying of the cables Wrong laid cables can be damaged during assembly of the device. To avoid this the cables have to be laid in the appropriate cable guides like shown in the pictures. P328 M/HA Purchase at Allstrap (866) 779-2673 1-17...
  • Page 19 P328 A/A View without motor Purchase at Allstrap (866) 779-2673 1-18...
  • Page 20 Purchase at Allstrap (866) 779-2673 Sockets for the motor on the circuit board Not fully plugged in plugs lead to burns at plugs and sockets and finally causing disturbances. In order to avoid this, the plugs must always be fully inserted into the sockets and have to be greased with Nyogel 760G.

  • Page 21: Recommended Spare Parts

    Purchase at Allstrap (866) 779-2673 1.5 RECOMMENDED SPARE PARTS Following spare parts are recommended for stock keeping: Item-No. Description Pieces per tool N1.1196 Screw N1.1305 Screw N1.1928 Screw N1.1934 Flat head screw N1.1943 Screw N1.1973 Screw N1.6504 Safety washer N1.7211 PT-screw N2.1118 Security ring...

  • Page 22: Maintenance Plan P328

    Purchase at Allstrap (866) 779-2673 1.6 MAINTENANCE PLAN P328 1-21...

  • Page 23: Accessory Tools

    Purchase at Allstrap (866) 779-2673 1.7 ACCESSORY TOOLS Item number Field Description Application N71.3239 Press in arbor N3.2347/P32.1024 N71.3240 Press out arbor N3.2347/P32.1024 N71.3241 F1, F3 Pressure pad N3.2347/P32.1024; N3.4509/P32.8134 N72.3227 Arbor N3.1178/P32.8126 N72.3228 Pressure pad N3.1178/P32.8126 N72.3229 Pressure pad N3.4509/P32.8134 N72.3230 Arbor...

  • Page 24: Use Of Accessory Tools

    Purchase at Allstrap (866) 779-2673 1.8 USE OF ACCESSORY TOOLS N7.5108 Accessory tools should only be used with the suitable arbor press N7.5108 to prevent a jam of the parts have to be pressed in. Additional a retainer (N7.3215) is necessary. N7.3215 Part Disassembly...
  • Page 25 Purchase at Allstrap (866) 779-2673 Part Disassembly Assembly P32.8134/ N3.4509 N72.3230 *Pay attention to the assembling direction see assembly information. N3.4509* P32.8134 N71.3241 N72.3229 P32.8159/ N3.3150 N71.3250 N71.3248 *Pay attention to the direction of the joint see assembly information N3.3150 P32.8159 P32.2016/ N3.1159...
  • Page 26 Purchase at Allstrap (866) 779-2673 Part Disassembly Assembly P32.8131/ N2.2126 Arbor N2.2126 P32.8131 N72.3225 press-in measure 20 mm P32.8131/ N3.3172 N71.3250 N7.3244 *Pay attention to the direction of the joint see assembly information N3.3172 P32.8131 P32.8138/ N71.3235 N3.4520 N72.3222 *Pay attention to the assembling direction see assembly information.
  • Page 27 Purchase at Allstrap (866) 779-2673 Part Disassembly Assembly P32.8138/ N31.1151 N72.3214 P32.8138 N72.3224 N31.1151 P32.8139/ N3.4509 *Pay attention to the assembling direction N71.3235 see assembly information. N3.4509 P32.8139 N72.3220 P32.8139/ N31.1163 N71.3286 N72.3214 N72.3231 P32.8139 N31.1163 1-26...
  • Page 28 Purchase at Allstrap (866) 779-2673 Part Disassembly Assembly P32.8101/ P32.8137 N72.3222 N72.3232 P32.8137 *See also glueing rules and Assembly information P32.8101 P32.8101/ N31.3115 N72.3222 N71.3237 *Pay attention to the direction of the joint N31.3115 see assembly information N72.3233 P32.8101 1-27...
  • Page 29 Purchase at Allstrap (866) 779-2673 Part Disassembly Assembly P32.1022/ N3.1134/ N71.3244 P32.8115 N71.3243 P32.1022 N3.1134 P32.8115 N72.3234 Part Assembly P32.8128/ N2.2145 N72.3235 *See also glueing rules P32.8128 N2.2145 *Attention! Different hole spacings 1-28...

  • Page 30: Ordering Spare Parts

    "de" (see table). Portuguese Swedish Finnish Spanish 1.9.2 Ordering address Russian Spare parts and manuals can be ordered at: Czech Fromm Holding AG Phone: +41(0) 41 741 57 41 Hungarian Hinterbergstrasse 26 Fax: +41(0) 41 741 57 60 CH-6330 Cham e-mail: orders@fromm-pack.com...

  • Page 31: Finding Out Of The Tool Type (Item Number), The Serial Number And The Version Number

    Technical customer support Neulandstr. 10 D-77855 Achern Germany Phone:+49(0)7841 / 62 94-22 Fax: +49(0)7841 / 62 94-11 e-mail: de@fromm-pack.com 1.11 CHART OF TYPES 1.11.1Chart of types P328 M / HA Item no. Model Strap width Strap thickness 43.2422 P328/12/0.65-1.05 12 mm 0.65-1.05 mm / .026 - .041"...
  • Page 32 Purchase at Allstrap (866) 779-2673 *see Ordering spare parts P328.0001_2.01_en.
  • Page 33 Purchase at Allstrap (866) 779-2673 *see Ordering spare parts P328.0001_2.01_e...
  • Page 34 Purchase at Allstrap (866) 779-2673 *see Ordering spare parts P328.0001_2.01_en.
  • Page 35 Purchase at Allstrap (866) 779-2673 *see Ordering spare parts P328.0001_2.01_e...
  • Page 36 Purchase at Allstrap (866) 779-2673 SPARE PARTS LIST P328 3.1 Type independent spare parts P328.0001.01 / P328.0002.01 Item-No. in group Pcs. Description Dimension Field N1.1196 3 SCREW M4 X 16 N1.1305 6 SCREW M4 X 7.8 N1.1553 P35.0146 1 HEXAGON SCREW M4 X 8 N1.1910 2 FLAT HEAD SCREW...
  • Page 37 WEEE N43.9192 P32.8103 1 ADHESIVE LABEL 18 Volt N43.9192 P32.8105/96 1 ADHESIVE LABEL 18 Volt N44.9104 P32.8105/96 1 ADHESIVE LABEL <<FROMM>> N44.9122 1 TYPE PLATE <<P328>> N5.2702 1 COVER N51.1127 P32.0201/17 1 GEAR MOTOR N51.2194 P32.0215/16 1 INSERTATION PART N51.2199 N51.1111...
  • Page 38 Purchase at Allstrap (866) 779-2673 Item-No. in group Pcs. Description Dimension Field [P32.0205] P32.0208 1 IDLER STEP [P32.0206] P32.0208 1 LEVER [P32.0207] P32.0208 1 GEAR BODY [P32.0208] P32.0201/17 1 GEAR [P32.0209] P32.0201/17 1 GEAR WHEEL [P32.0210] P32.0201/17 1 GEAR WHEEL [P32.0211] P32.0201/17 1 CONICAL GEAR WHEEL...
  • Page 39 Purchase at Allstrap (866) 779-2673 Item-No. in group Pcs. Description Dimension Field P32.8158 P32.0221 1 COVER P32.8159 P32.0222 1 END COVER P32.8195 1 COVER [P33.0204] P32.0201/17 1 GEAR WHEEL P33.2115 P32.8148/51 1 TURNING BUTTON P33.2127 N51.1111 3 SHRINKABLE HOSE P33.2145 P32.0201/17 1 DISK P33.2155...
  • Page 40 Purchase at Allstrap (866) 779-2673 3.2 Type dependent spare parts P328.0001.01 / P328.0002.01 Type 43.2422.01 43.2422.01 P328/12/0.65-1.05 P328.0001.01 18.02.16 Item-No. in group Pcs. Description Dimension Field N44.9160 P32.8105 1 ADHESIVE LABEL [P32.0201] 1 BASE MODEL [P32.0215] P32.0201 1 CIRCUIT BOARD [P32.8105] P32.0201 1 MOTOR HOUSING...
  • Page 41 Purchase at Allstrap (866) 779-2673 Type 43.2424.01 43.2424.01 P328/12.7/0.65-1.05 P328.0001.01 18.02.16 Item-No. in group Pcs. Description Dimension Field N44.9160 P32.8105 1 ADHESIVE LABEL [P32.0201] 1 BASE MODEL [P32.0215] P32.0201 1 CIRCUIT BOARD [P32.8105] P32.0201 1 MOTOR HOUSING P32.8109 1 GRIPPER P32.8110 1 GRIPPER P32.8111...
  • Page 42 Purchase at Allstrap (866) 779-2673 Type 43.2453.01 43.2453.01 P328/15.5/0.40-0.64 P328.0001.01 18.02.16 Item-No. in group Pcs. Description Dimension Field N44.9160 P32.8105 1 ADHESIVE LABEL [P32.0201] 1 BASE MODEL [P32.0215] P32.0201 1 CIRCUIT BOARD [P32.8105] P32.0201 1 MOTOR HOUSING P32.8112 1 GRIPPER P32.8113 1 GRIPPER P32.8114...
  • Page 43 Purchase at Allstrap (866) 779-2673 Type 43.2461.01 43.2461.01 P328/16/0.40-0.64 P328.0001.01 18.02.16 Item-No. in group Pcs. Description Dimension Field N44.9160 P32.8105 1 ADHESIVE LABEL [P32.0201] 1 BASE MODEL [P32.0215] P32.0201 1 CIRCUIT BOARD [P32.8105] P32.0201 1 MOTOR HOUSING P32.8112 1 GRIPPER P32.8113 1 GRIPPER P32.8114...
  • Page 44 Purchase at Allstrap (866) 779-2673 Type 43.2622.01 43.2622.01 P328/12/0.65-1.05/A P328.0002.01 18.02.16 Item-No. in group Pcs. Description Dimension Field N44.9170 P32.8196 1 ADHESIVE LABEL [P32.0216] P32.0217 1 CIRCUIT BOARD [P32.0217] 1 BASE MODEL P32.8109 1 GRIPPER P32.8110 1 GRIPPER P32.8111 1 GRIPPER P32.8133 P32.0217 1 PUSHER...
  • Page 45 Purchase at Allstrap (866) 779-2673 Type 43.2624.01 43.2624.01 P328/12.7/0.65-1.05/A P328.0002.01 18.02.16 Item-No. in group Pcs. Description Dimension Field N44.9170 P32.8196 1 ADHESIVE LABEL [P32.0216] P32.0217 1 CIRCUIT BOARD [P32.0217] 1 BASE MODEL P32.8109 1 GRIPPER P32.8110 1 GRIPPER P32.8111 1 GRIPPER P32.8133 P32.0217 1 PUSHER...
  • Page 46 Purchase at Allstrap (866) 779-2673 Type 43.2653.01 43.2653.01 P328/15.5/0.40-0.64/A P328.0002.01 18.02.16 Item-No. in group Pcs. Description Dimension Field N44.9170 P32.8196 1 ADHESIVE LABEL [P32.0216] P32.0217 1 CIRCUIT BOARD [P32.0217] 1 BASE MODEL P32.8112 1 GRIPPER P32.8113 1 GRIPPER P32.8114 1 GRIPPER P32.8133 P32.0217 1 PUSHER...
  • Page 47 Purchase at Allstrap (866) 779-2673 Type 43.2661.01 43.2661.01 P328/16/0.40-0.64/A P328.0002.01 18.02.16 Item-No. in group Pcs. Description Dimension Field N44.9170 P32.8196 1 ADHESIVE LABEL [P32.0216] P32.0217 1 CIRCUIT BOARD [P32.0217] 1 BASE MODEL P32.8112 1 GRIPPER P32.8113 1 GRIPPER P32.8114 1 GRIPPER P32.8133 P32.0217 1 PUSHER...

This manual is also suitable for:

P328P328 haP328 aP329 m/haP329 a/a
