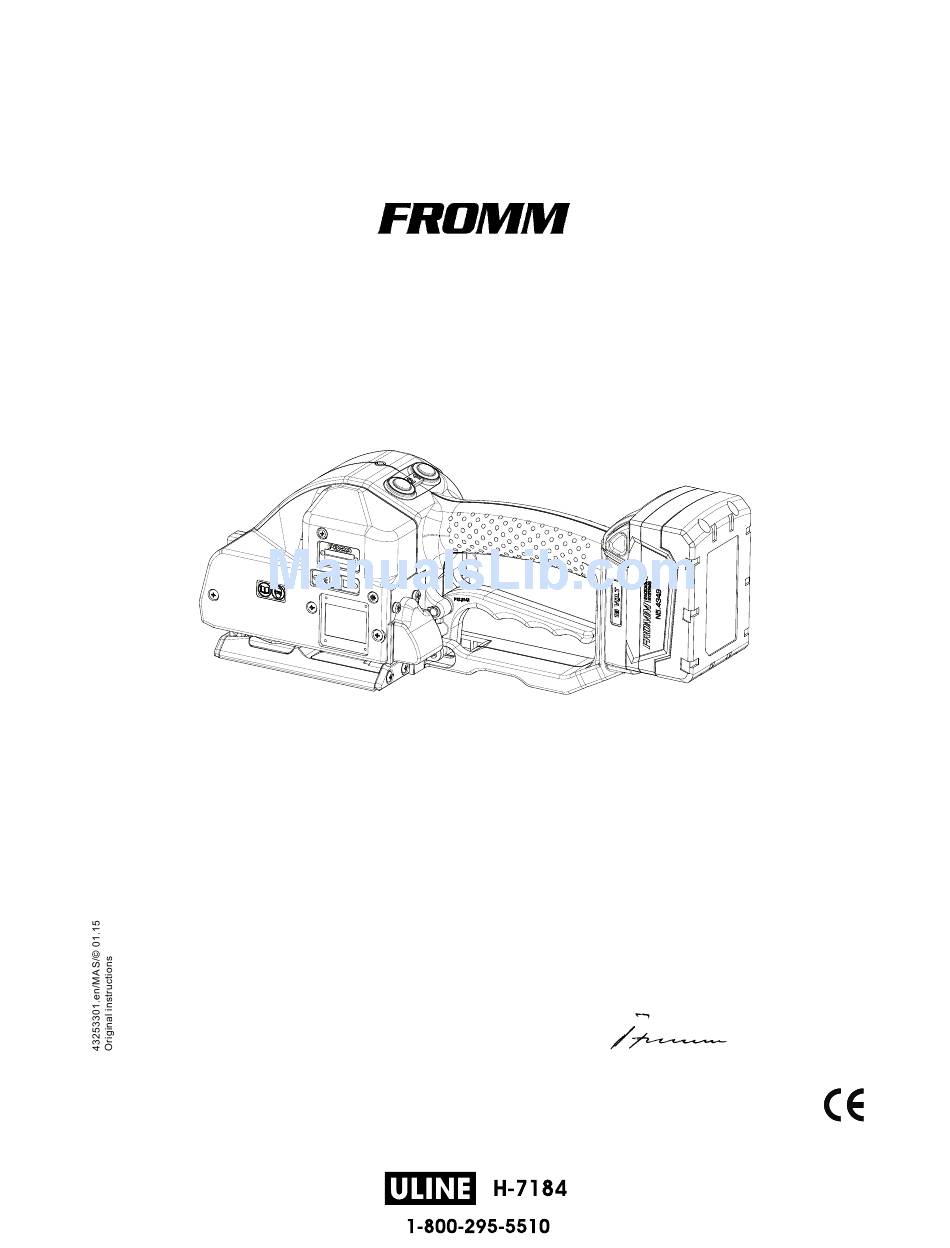

OPERATION MANUAL / SPARE PARTS LIST
BATTERY - POWERED
PLASTIC STRAPPING TOOL
MODEL P329 M/HA
43.2533.01
CE Declaration of conformity
We declare that the machine P329
is in conformity with the following standard or
standardised documents:
2006/42/EC,
2004/108/EC
Technical file at:
M.Rauch
FROMM System GmbH
Neulandstrasse 10
D-77855 Achern
06.03.2014
R.Fromm
Director
FROMM Holding AG
Hinterbergstrasse 26
CH - 6330 Cham
PAGE 1 OF 26
0118 IH-7184

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P329 M and is the answer not in the manual?

Questions and answers

carol
May 16, 2025

The yellow handle will not life the guide plate

Summary of Contents for Fromm P329 M

  • Page 1 OPERATION MANUAL / SPARE PARTS LIST BATTERY - POWERED PLASTIC STRAPPING TOOL MODEL P329 M/HA 43.2533.01 CE Declaration of conformity We declare that the machine P329 is in conformity with the following standard or standardised documents: 2006/42/EC, 2004/108/EC Technical file at: M.Rauch...
  • Page 2: Table Of Contents

    Seal - Control ............. . 13 CHART OF TYPES P329 M/HA ELECTRIC SCHEMATIC ELS.1082...
  • Page 3: General Power Tool Safety Warnings

    GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mainsoperated (corded) power tool or battery-operated (cordless) power tool.
  • Page 4 f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
  • Page 5: Safety Rules For Strapping Tools

    SAFETY RULES FOR STRAPPING TOOLS 2.1 Joints You are fully responsible to review the joints made by your tool. Become familiar with the seal control and seal adjustment described in this operation manual. Misformed joints may not secure the load and could cause serious injury. Never handle or ship any load with improperly formed joints.
  • Page 6: Technical Data

    TECHNICAL DATA Description of the tool The tool model P329 has been designed to strap packages with plastic strapping. The plastic strapping is fed around the package manually or in combination with a strap feeder. The straps are inserted in the tool, tensioned, sealed by friction welding and separated from the strap coil.
  • Page 7: Accessories

    ACCESSORIES Use only parts and accessories mentioned in the operating instruction. Using other parts or accessories can cause injuries to you and other persons. Battery The battery is not automatically supplied with the tool. The battery has to be ordered separately under the following item number. Item-No.
  • Page 8: Suspension

    Suspension When working stationary the P329 can be suspended at a spring loaded balancer by using a suspension bracket. With the swivel mounted suspension bracket the package can be strapped in various working positions. The complete suspension bracket can be ordered under item number P32.0223. P32.0223 P32.8302 ...
  • Page 9: Wearing Plate

    Wearing plate As an option, the tool can be equipped with a wearing plate to protect the base from excessive wear on abrasive package surfaces. The complete wearing plate can be ordered together with the fastening screws under item number P32.0226.
  • Page 10: Operation

    OPERATION Installation Do not expose power tools to rain or wet conditions! The batteries are supplied partially charged. Before the first use, the battery must be completely charged. See separate operating instruction of the battery charger. Never charge a damaged battery. Replace by a new one immediately. Do not open batteries and store them only in dry and frost-proof rooms.
  • Page 11: Adjustments

    Adjustments 6.2.1 Preselecting of strap tension and tensioning speed Do not adjust the tensioning force too high. If the tensioning force is higher than the tensioning strength of the strap, the strap will tear while the tensioning. Tensioning force and tensioning speed can be preselected Adjusting knob tensioning force / with the upper adjusting knob.
  • Page 12: Feeding The Strap Around The Package

    Feeding the strap around the package • The strapping is fed around the package as illustrated. Warning! The plastic strap which will be welded must be free from oil, grease and other dirt. Dirty plastic straps can't be welded correct! Inserting the strap •...
  • Page 13: Tensioning And Sealing The Strap Operation Mode Semi-Automatic

    Tensioning and sealing the strap Operation mode Semi-Automatic • Push tension button until the adjusted tension force is reached. During tensioning the LED lights green. The tensioning operation can be interrupted and restarted at any time. After reaching the adjusted strap tension the sealing cycle is initiated automatically (LED lights blue).
  • Page 14: Chart Of Types P329 M/Ha

    CHART OF TYPES P329 M/HA Item No. Model Strap width Strap thickness 43.2522 P329/16/0.65-1.05 16 mm / 5/8" 0.65-1.05 mm / .026 - .041" 43.2532 P329/19/0.65-1.05 19 mm / 3/4" 0.65-1.05 mm / .026 - .041" 43.2533 P329/19/1.06-1.35 19 mm / 3/4"...
  • Page 15: Exchange Of Wearing Parts

    EXCHANGE OF WEARING PARTS Remove always the battery from the tool before starting maintenance works. Exchange of tensioning wheel and grippers Disassembling • Unscrew cover P32.0221 and remove it; • Unscrew end cover P32.0222 and remove it; • Raise tension wheel P35.3203 by lifting the handle lever P32.8142; •...
  • Page 16: Exchange Of Cutter, Welding Stop Gripper And Welding Gripper

    Exchange of cutter, welding stop gripper and welding gripper Disassembling • Unscrew cover P32.0221 and remove it; • Unscrew end cover P32.0222 and remove it; • Raise tensioning wheel P35.3203 by lifting the handle lever P32.8142; • Pull off tensioning wheel together with bearing N3.1172 from the body. •...
  • Page 17: Adjustment Of The Coupler

    Assembly advise • During assembling move the strap guide plate P32.8118 downwards against the holding gripper. • Pay attention to the fitting position of the cutter (see drawing). • Safe the screws N1.1305 with Loctite 222. • Lubricate the rocker and the bolt P32.1028 in the area of the welding gripper with Klüber Isoflex NBU 15. •...
  • Page 18: Transport

    14 WARRANTY CONDITIONS AND LIABILITY FROMM Holding AG warrants all its strapping tools and machine heads during a period of 24 months from the date of installation at the end-user's sight by the distributor, however, not later than 30 months from the date of shipment to the distributor of FROMM Holding AG.
  • Page 19 PAGE 19 OF 26 0118 IH-7184 43253301.z...
  • Page 20 PAGE 20 OF 26 0118 IH-7184 43253301.z...
  • Page 21 PAGE 21 OF 26 0118 IH-7184 43253301.z...
  • Page 22 PAGE 22 OF 26 0118 IH-7184 43253301.z...
  • Page 23: Spare Parts List 43.2533.01

    16 SPARE PARTS LIST 43.2533.01 43.2533.01 P329/19/1.06-1.35 P329.0001.01 13.05.14 Item-No. in group Pcs. Description Dimension Field N1.1196 3 SCREW M4 X 16 N1.1305 6 SCREW M4 X 7.8 N1.1553 P35.0146 1 HEXAGON SCREW M4 X 8 N1.1910 2 FLAT HEAD SCREW M4 X 12 N1.1911 2 FLAT HEAD SCREW...
  • Page 24 WEEE N43.9192 P32.8103 1 ADHESIVE LABEL 18 Volt N43.9192 P32.8105 1 ADHESIVE LABEL 18 Volt N44.9104 P32.8105 1 ADHESIVE LABEL <<FROMM>> N44.9148 1 TYPE PLATE <<P329>> N44.9160 P32.8105 1 ADHESIVE LABEL N5.2702 1 COVER N51.1127 P32.0219 1 GEAR MOTOR N51.2194 P32.0229...
  • Page 25 43.2533.01 P329/19/1.06-1.35 P329.0001.01 13.05.14 Item-No. in group Pcs. Description Dimension Field [P32.0206] P32.0208 1 LEVER [P32.0207] P32.0208 1 GEAR BODY C17+ [P32.0208] P32.0219 1 GEAR [P32.0209] P32.0219 1 GEAR WHEEL [P32.0211] P32.0219 1 CONICAL GEAR WHEEL [P32.0212] P32.0219 1 GEAR WHEEL P32.0213 P32.0219 1 MOTOR...
  • Page 26 43.2533.01 P329/19/1.06-1.35 P329.0001.01 13.05.14 Item-No. in group Pcs. Description Dimension Field P32.8138 P32.0211 1 CONICAL GEAR WHEEL P32.8139 P32.0212 1 GEAR WHEEL P32.8140 P32.0219 1 RETAINER P32.8141 P32.0219 1 COVERING P32.8142 P32.0219 1 HANDLE LEVER P32.8150 P32.0219 1 TOUCH CONTACT-SWITCH P32.8153 P32.0214 1 GEAR WHEEL...
