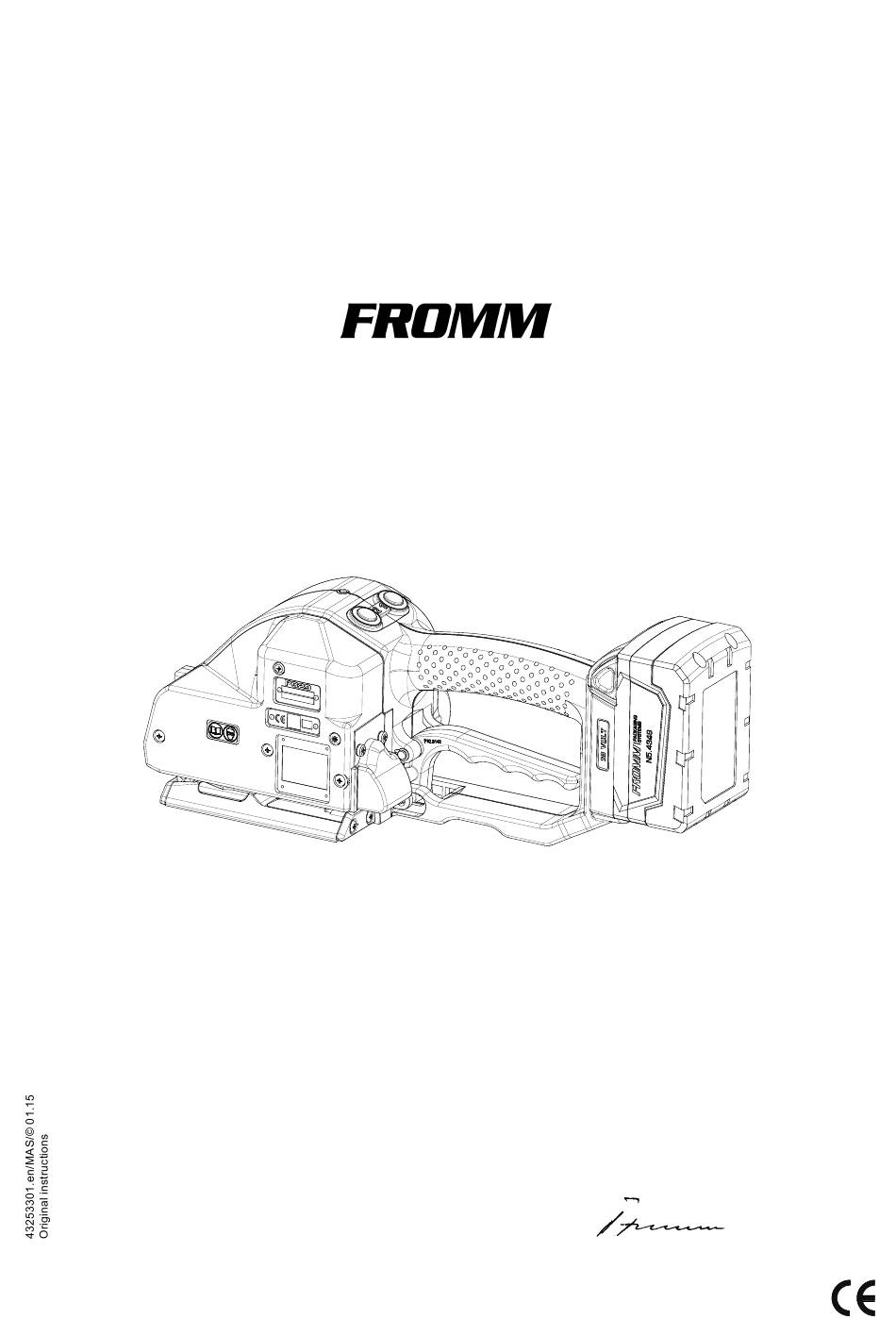

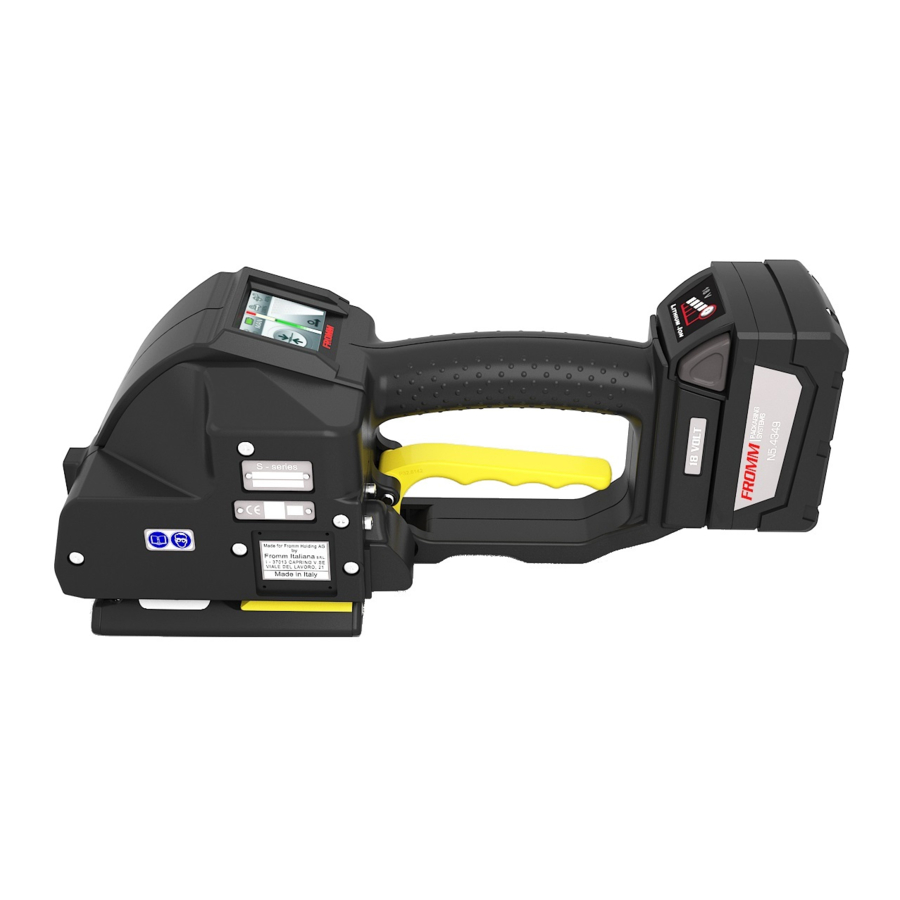

OPERATION MANUAL / SPARE PARTS LIST
BATTERY - POWERED
PLASTIC STRAPPING TOOL
MODEL P329 M/HA
43.2533.01
CE Declaration of conformity
We declare that the machine P329
is in conformity with the following standard or
standardised documents:
2006/42/EC,
2004/108/EC
Technical file at:
M.Rauch
FROMM System GmbH
Neulandstrasse 10
D-77855 Achern
06.03.2014
R.Fromm
Director
FROMM Holding AG
Hinterbergstrasse 26
CH - 6330 Cham

Advertisement

loading
Need help?

Need help?

Do you have a question about the P329 M/HA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fromm P329 M/HA

Summary of Contents for Fromm P329 M/HA

  • Page 1 OPERATION MANUAL / SPARE PARTS LIST BATTERY - POWERED PLASTIC STRAPPING TOOL MODEL P329 M/HA 43.2533.01 CE Declaration of conformity We declare that the machine P329 is in conformity with the following standard or standardised documents: 2006/42/EC, 2004/108/EC Technical file at: M.Rauch...

  • Page 2: Wearing Plate

    Wearing plate As an option, the tool can be equipped with a wearing plate to protect the base from excessive wear on abrasive package surfaces. The complete wearing plate can be ordered together with the fastening screws under item number P32.0226.

  • Page 3: Exchange Of Wearing Parts

    EXCHANGE OF WEARING PARTS Remove always the battery from the tool before starting maintenance works. Exchange of tensioning wheel and grippers Disassembling • Unscrew cover P32.0221 and remove it; • Unscrew end cover P32.0222 and remove it; • Raise tension wheel P35.3203 by lifting the handle lever P32.8142; •...
  • Page 4 Exchange of cutter, welding stop gripper and welding gripper Disassembling • Unscrew cover P32.0221 and remove it; • Unscrew end cover P32.0222 and remove it; • Raise tensioning wheel P35.3203 by lifting the handle lever P32.8142; • Pull off tensioning wheel together with bearing N3.1172 from the body. •...

  • Page 5: Adjustment Of The Coupler

    Assembly advise • During assembling move the strap guide plate P32.8118 downwards against the holding gripper. • Pay attention to the fitting position of the cutter (see drawing). • Safe the screws N1.1305 with Loctite 222. • Lubricate the rocker and the bolt P32.1028 in the area of the welding gripper with Klüber Isoflex NBU 15. •...
  • Page 6 P32.0221 P32.0218 P32.8118 N44.9148 P32.8158 N1.1911 N2.4902 N4.9159 N2.4902 N1.6504 N1.1973 N1.1928 P32.0207 N21.2145 N41.9127 P32.8169 N3.1172 N1.1934 N1.6504 N3.2107 N1.1943 P35.3201 N2.2124 N2.2147 P35.3203 N1.2222 N1.6504 N3.1172 P32.8108 N3.1185 P32.8159 N1.1305 P32.8178 1 Mobilux EP2 2 Molykote BR 2 plus N1.1196 3 Loctite 603 N2.2119...
  • Page 7 1 Mobilux EP2 2 Molykote BR 2 plus 3 Loctite 603 4 Loctite 222 5 Klüber Isoflex Alltime SL2 N2.2443 P32.8116 6 Klüber Isoflex NBU 15 1 Nm P32.0203 Orientation 1 N21.5138 9 NyoGel 760G 1 P32.8117 N31.3115 N1.6331 P32.1251 P32.8122 N2.1121 P35.3223...
  • Page 8 P32.0218 2 P32.8115 P32.1024 N3.1134 3 P32.8137 P32.1022 P32.0202 N3.2347 N3.2347 P32.0144 N3.1134 1 N21.5219 1 N21.5139 P32.2012 1 P32.8125 N21.2144 P33.0204 P31.1124 P32.0208 N2.2126 N3.3172 P32.0204 N3.1178 2 N1.6331 3 N3.1159 2 P32.8126 2 P32.2016 P32.8131 2 N1.6331 N2.2180 N2.1610 N2.2190 N31.1120...
  • Page 9 P32.8150 P32.8140 (N43.9192) P32.8103 N6.6232 N4.3236 9 N51.2194 (N51.5477) N51.1127 N2.1118 P32.0214 N21.5124 N1.7222 P32.8141 P32.8142 P33.2145 P32.8136 P32.8153 P32.0229 N3.2362 P32.8105 N1.6305 N31.1118 (N43.9192) P32.8199 (P30.1210) N31.1120 (P33.2115) (P32.2009) P32.0159 N1.7207 1 N6.6224 P33.2155 N1.7211 N43.9164 P32.1215 N2.1606 N1.7211 7 N1.1966 N1.6504 N5.2702...
  • Page 10 16 SPARE PARTS LIST 43.2533.01 43.2533.01 P329/19/1.06-1.35 P329.0001.01 13.05.14 Item-No. in group Pcs. Description Dimension Field N1.1196 3 SCREW M4 X 16 N1.1305 6 SCREW M4 X 7.8 N1.1553 P35.0146 1 HEXAGON SCREW M4 X 8 N1.1910 2 FLAT HEAD SCREW M4 X 12 N1.1911 2 FLAT HEAD SCREW...
  • Page 11 WEEE N43.9192 P32.8103 1 ADHESIVE LABEL 18 Volt N43.9192 P32.8105 1 ADHESIVE LABEL 18 Volt N44.9104 P32.8105 1 ADHESIVE LABEL <<FROMM>> N44.9148 1 TYPE PLATE <<P329>> N44.9160 P32.8105 1 ADHESIVE LABEL N5.2702 1 COVER N51.1127 P32.0219 1 GEAR MOTOR N51.2194 P32.0229...
  • Page 12 43.2533.01 P329/19/1.06-1.35 P329.0001.01 13.05.14 Item-No. in group Pcs. Description Dimension Field [P32.0206] P32.0208 1 LEVER [P32.0207] P32.0208 1 GEAR BODY C17+ [P32.0208] P32.0219 1 GEAR [P32.0209] P32.0219 1 GEAR WHEEL [P32.0211] P32.0219 1 CONICAL GEAR WHEEL [P32.0212] P32.0219 1 GEAR WHEEL P32.0213 P32.0219 1 MOTOR...
  • Page 13 43.2533.01 P329/19/1.06-1.35 P329.0001.01 13.05.14 Item-No. in group Pcs. Description Dimension Field P32.8138 P32.0211 1 CONICAL GEAR WHEEL P32.8139 P32.0212 1 GEAR WHEEL P32.8140 P32.0219 1 RETAINER P32.8141 P32.0219 1 COVERING P32.8142 P32.0219 1 HANDLE LEVER P32.8150 P32.0219 1 TOUCH CONTACT-SWITCH P32.8153 P32.0214 1 GEAR WHEEL...
