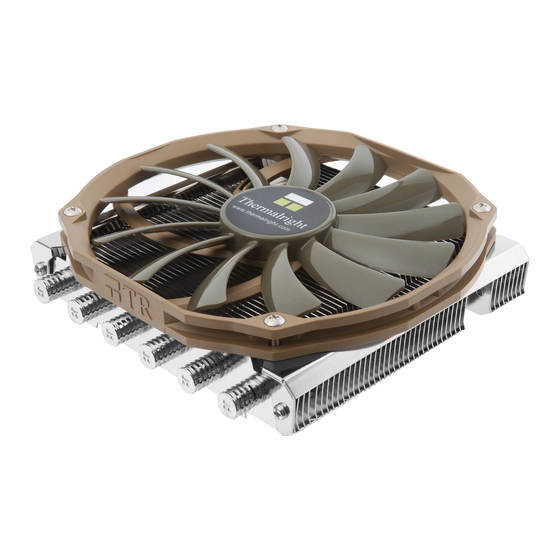

Summary of Contents for Thermalright AXP-200

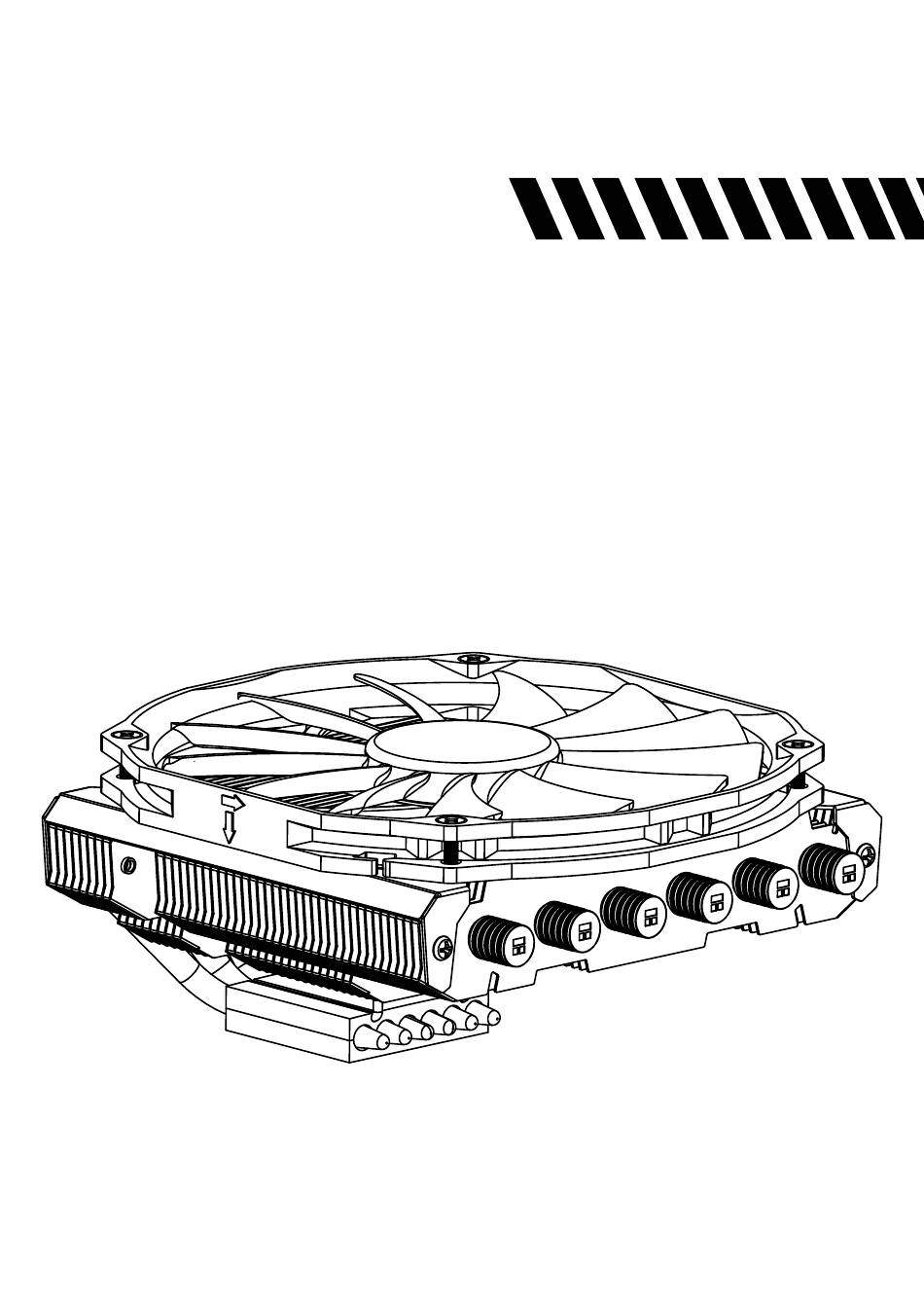

  • Page 1 Thermalright AXP-200...
  • Page 3 Assembly Package AXP-200 × 4 × 1 × 4 × 1 × 7 × 4 × 5 × 4 × 5 × 5 × 5 × 1 × 1 × 1 × 1...
  • Page 4: Exploded View

    Intel 775/115x/1366 AXP-200 Exploded View Important! Before proceeding with installation, please check for the most up-to-date instructions at www.thermalright.com M3 L17 Screw TY-14013 Fan Heatsink Body M3 L6 Screw Anchoring Mount Mounting Plate Screw Nut Intel Washer (small) Metal Back Plate...
  • Page 5 M3 L6 Screw ×7 Screw Pillars x4 Intel Washer (small) ×4 AMD Washer (big) ×4 Back Plate Cap ×1 Chill Factor III ×1 TY-14013 Fan×1 M3 L4 Screw ×5 M3 L17 Screw ×5 M3 L30 Screw ×5 The Ultimate Cooling Solutions! www.thermalright.com...
  • Page 6: Installation Instructions

    Installation Instructions: Step 1: 1366 1156 1155 Step 1 : Backplate Installation Choose the platform (775/115x/1366)you are in use. Make four M3L10 Screws go through the Metal Back Plate from bottom towards top.And then place the Metal Back Plate on the table. Put the four Washers (for Intel) around the Screw Cylinders.
  • Page 7 Place the included TY-14013 Fan onto the Heatsink Body. And then secure it by scewing on the four M3L17 Screws, though the fan’s mounting hole. Step 8: Step 8 : Installation Completed Plug in the fan connector to the CPU PWM Fan socket on the motherboard. Installation complete. The Ultimate Cooling Solutions! www.thermalright.com...
  • Page 8 Intel 2011 AXP-200 Exploded View Important! Before proceeding with installation, please check for the most up-to-date instructions at www.thermalright.com M3 L17 Screw TY-14013 Fan Heatsink Body M3 L6 Screw Anchoring Mount Mounting Plate LGA 2011 Type B Screw Pillars...
  • Page 9 M3 L6 Screw ×7 Screw Pillars x4 Intel Washer (small) ×4 AMD Washer (big) ×4 Back Plate Cap ×1 Chill Factor III ×1 TY-14013 Fan×1 M3 L4 Screw ×5 M3 L17 Screw ×5 M3 L30 Screw ×5 The Ultimate Cooling Solutions! www.thermalright.com...
  • Page 10 Installation Instructions: Step 1: Step 1 : Screw Pillar Installation Screw on the four LGA2011 Type B Screw Pillars into the Heatsink studs on the ILM Assembly Frame around the processor socket. Step 2: Step 2 : Anchoring Mount Installation Place the Anchoring Mount onto the four LGA2011 Type B Screw Pillars, secure it by tightening it with 4 M3L6 Screws.
  • Page 11 AXP-200 Step 4: Step 4 : Mounting Plate Installation. Place the Heatsink Body on top of the CPU. Make the Mounting Plate go through the Heatsink Body. Then use the two M3L6 screws to secure the Mounting Plate. (Screwdrive goes through holes on...
  • Page 12 AXP-200 AM2/AM2+/AM3/AM3+/FM1/FM2 Exploded View Important! Before proceeding with installation, please check for the most up-to-date instructions at www.thermalright.com M3 L17 Screw TY-14013 Fan Heatsink Body M3 L6 Screw Anchoring Mount Mounting Plate Screw Nut AMD Washer (big) Metal Back Plate...
  • Page 13 M3 L6 Screw ×7 Screw Pillars x4 Intel Washer (small) ×4 AMD Washer (big) ×4 Back Plate Cap ×1 Chill Factor III ×1 TY-14013 Fan×1 M3 L4 Screw ×5 M3 L17 Screw ×5 M3 L30 Screw ×5 The Ultimate Cooling Solutions! www.thermalright.com...
  • Page 14 Installation Instructions: Step 1: Step 1 : Back Plate Installation Choose the platform (AMD) you are in use. Make four M3L10 Screws go through the Metal Back Plate from bottom towards top. And then place the Metal Back Plate on the table. Put the four Washers (for AMD) around the Screw Cylinders.
  • Page 15 Place the included TY-14013 Fan onto the Heatsink Body. And then secure it by scewing on the four M3L17 Screws, though the fan’s mounting hole. Step 8: Step 8 : Installation Completed Plug in the fan connector to the CPU PWM Fan socket on the motherboard. Installation complete. The Ultimate Cooling Solutions! www.thermalright.com...
  • Page 16 Intel 775/115x/1366 AXP-200 Explosionszeichnung Wichtig! Bitte prüfen Sie vor der Montage ob für Ihren Kühler aktualisierte Montagehinweise auf der Webseite www.thermalright.com verfügbar sind. M3 L17 Schraube TY-14013 Lüfter Kühlkörper M3 L6 Schraube Montagerahmen Rändelschraube Intel Unterlegscheibe (klein) Multi Plattform Backplate...
  • Page 17 M3 L6 Schraube ×7 Adapterschraube x4 Intel Unterlegscheibe AMD Unterlegscheibe Backplateeinsatz ×1 (klein) ×4 (groß) ×4 Chill Factro III TY-14013 Lüfter ×1 M3 L4 Schraube ×5 Wärmeleitpaste ×1 M3 L17 Schraube ×5 M3 L30 Schraube×5 The Ultimate Cooling Solutions! www.thermalright.com...
  • Page 18 Installationsanleitung: Step 1: 1366 1156 1155 Achten Sie auf die für die entsprechenden Intel Sockel (775/115x/1366) vorgesehene Bohrungen in der Multi Plattform Backplate. Führen Sie die vier M3L10 Schrauben jeweils von unten durch diese Bohrungen und legen dann die Backplate auf den Tisch. Legen Sie die vier Unterlegscheiben (für Intel) über die hervorstehenden Gewinde Step 3: Step 2:...
  • Page 19 Legen Sie den mitgelieferten TY-14013 Lüfter auf den Kühlkörper. Führen Sie die vier M3L17 Schrauben durch die Montagelöcher des Lüfters und drehen diese dann vorsichtig fest. Step 8: Verbinden Sie den Lüfterstecker mit dem CPU PWM Lüfteranschluss auf dem Mainboard. Die Installation ist nun abgeschlossen. The Ultimate Cooling Solutions! www.thermalright.com...
  • Page 20 Intel 2011 AXP-200 Explosionszeichnung Wichtig! Bitte prüfen Sie vor der Montage, ob für Ihren Kühler aktualisierte Montagehinweise auf der Webseite www.thermalright.com verfügbar sind. M3 L17 Schraube TY-14013 Lüfter Kühlkörper M3 L6 Schraube Montagerahmen Befestigungsplatte LGA2011 Type B Adapterschraube...
  • Page 21 M3 L6 Schraube ×7 Adapterschraube x4 Intel Unterlegscheibe AMD Unterlegscheibe Backplateeinsatz ×1 (klein) ×4 (groß) ×4 Chill Factro III TY-14013 Lüfter ×1 M3 L4 Schraube ×5 Wärmeleitpaste ×1 M3 L17 Schraube ×5 M3 L30 Schraube×5 The Ultimate Cooling Solutions! www.thermalright.com...
  • Page 22 Installationsanleitung:: Step 1: Schrauben Sie die vier LGA2011 Type B Adapterschrauben in die Gewinde des Montagerahmens, der sich um den Prozessorsockel befindet. Step 2: Platzieren Sie den Befestigungsrahmen auf die LGA2011 Type B Adapterschrauben und fixieren ihn mit vier M3L6 Schrauben. Step 3: Tragen Sie eine hauchdünne Schicht Chill Factro III Wärmeleitpaste auf der Oberfläche der CPU und auf der Unterseite des Kühlers auf.
  • Page 23 AXP-200 Step 4: Platzieren Sie den Kühlkörper auf der CPU. Führen Sie die Befestigungsplatte durch den Kühlkörper. Dann verwenden Sie die zwei M3L6 Schrauben, um die Befestigungsplatte zu fixieren. Step 5: Legen Sie den mitgelieferten TY-14013 Lüfter auf den Kühlkörper. Führen Sie die vier M3L17 Schrauben durch die Montagelöcher des Lüfters und drehen diese dann vorsichtig fest.
  • Page 24 AXP-200 AM2/AM2+/AM3/AM3+/FM1/FM2 Explosionszeichnung Wichtig! Bitte prüfen Sie vor der Montage ob für Ihren Kühler aktualisierte Montagehinweise auf der Webseite www.thermalright.com vorhanden sind. M3 L17 Schraube TY-14013 Lüfter Kühlkörper M3 L6 Schraube Montagerahmen Befestigungsplatte Rändelschraube AMD Unterlegscheibe (groß) Multi Plattform Backplate...
  • Page 25 M3 L6 Schraube ×7 Adapterschraube x4 Intel Unterlegscheibe AMD Unterlegscheibe Backplateeinsatz ×1 (klein) ×4 (groß) ×4 Chill Factro III TY-14013 Lüfter ×1 M3 L4 Schraube ×5 Wärmeleitpaste ×1 M3 L17 Schraube ×5 M3 L30 Schraube×5 The Ultimate Cooling Solutions! www.thermalright.com...
  • Page 26 Installationsanleitung: Step 1: Achten Sie auf die für die entsprechenden AMD Prozessoren vorgesehene Bohrungen in der Multi Plattform Backplate. Führen Sie die vier M3L10 Schrauben jeweils von unten durch diese Bohrungen und legen dann die Backplate auf den Tisch. Legen Sie die vier Unterlegscheiben (für AMD) über die hervorstehenden Gewinde.
  • Page 27 Legen Sie den mitgelieferten TY-14013 Lüfter auf den Kühlkörper. Führen Sie die vier M3L17 Schrauben durch die Montagelöcher des Lüfters und drehen diese dann vorsichtig fest. Step 8: Verbinden Sie den Lüfterstecker mit dem CPU PWM Lüfteranschluss auf dem Mainboard. Die Installation ist nun abgeschlossen. The Ultimate Cooling Solutions! www.thermalright.com...
  • Page 28 Intel 775/115x/1366 AXP-200 安裝爆炸圖 注意 ! 在您安裝前請先至官網首頁是否有最新更新安裝指南 M3 L17 螺絲 TY-14013 風扇 AXP-200 本體 壓板 M3 L6 螺絲 多孔扣具 手轉螺絲 Intel 墊圈 ( 小 ) 背板 M3 L10 螺絲...
  • Page 29 零件 AXP-200 本體 ×1 ×1 ×1 擴充風扇架 背板 ×1 ×1 ×4 壓板 多孔扣具 手轉螺絲 2011 用 螺絲 M3 L10 ×5 M3 L6 ×7 螺絲 螺絲 Intel 墊圈 ( 小 ) 775 用背蓋 ×4 墊圈 ( 大 ) ×4 ×1 TY-14013 風扇...
  • Page 30 安裝方式 : Step 1: 1366 1156 1155 Step1: 背蓋安裝 依照您的處理器類型 (1366/115x/775) 選擇對應於背板的孔位, 將四根 M3 L10 螺絲穿過背板後套上 Intel 用墊圈 ( 小 )。 Step 3: Step 2: Step 2 : 背蓋安裝 ( 僅適用於 Socket 775) Step 3 : 將背板安裝於主機板上,穿過主機板的四 注意 : 當您安裝於 775 主機板時,請先將 775 用 個螺絲孔位後,將四個手轉螺絲套上螺絲。...
  • Page 31 Step 6: Step 6 : 散熱器本體安裝 將壓板放上散熱器鋁蓋上方,並將本體固定於 CPU 上方,之後將 M3 L6 螺絲鎖上壓板兩端。 Step 7: Step 7 : 風扇安裝 (TY-14013 風扇安裝 ) 將風扇放置於散熱器上方,並使用四根 M3 L17 螺絲將風扇固定。 Step 8: Step 8 : 風扇固定後,請將 PWM 4Pin 風扇接頭固定於主機板 CPU 風扇接頭即完成安裝。 The Ultimate Cooling Solutions! www.thermalright.com...
  • Page 32 Intel 2011 AXP-200 安裝爆炸圖 注意 ! 在您安裝前請先至官網首頁是否有最新更新安裝指南 M3 L17 螺絲 TY-14013 風扇 AXP-200 本體 M3 L6 螺絲 多孔扣具 壓板 2011 用螺絲...
  • Page 33 零件 AXP-200 本體 ×1 ×1 ×1 擴充風扇架 背板 ×1 ×1 ×4 壓板 多孔扣具 手轉螺絲 2011 用 螺絲 M3 L10 ×5 M3 L6 ×7 螺絲 螺絲 Intel 墊圈 ( 小 ) 775 用背蓋 ×4 墊圈 ( 大 ) ×4 ×1 TY-14013 風扇...
  • Page 34 安裝方式 : Step 1: Step 1 : 將四個 2011 螺絲固定於主機板扣具上。 Step 2: Step 2 : 將多孔扣具放置於 2011 固定螺絲上,並鎖固上 4 顆 M3 L6 螺絲。 Step 3: Step 3 : 將散熱器銅底以及 CPU 鐵蓋上均勻塗抹上導熱膏。...
  • Page 35 AXP-200 Step 4: Step 4 : 散熱器本體安裝 將壓板放上散熱器鋁蓋上方,並將本體固定於 CPU 上方,之後將 M3 L6 螺絲鎖上壓板兩端。 Step 5: Step 5 : 風扇安裝 (TY-14013 風扇安裝 ) 將風扇放置於散熱器上方,並使用四根 M3 L17 螺絲將風扇固定。 Step 6: Step 6 : 風扇固定後,請將 PWM 4Pin 風扇接頭固定於主機板 CPU 風扇接頭即完成安裝。 The Ultimate Cooling Solutions!
  • Page 36 AXP-200 AM2/AM2+/AM3/AM3+/FM1/FM2 安裝爆炸圖 注意 ! 在您安裝前請先至官網首頁是否有最新更新安裝指南 M3 L17 螺絲 TY-14013 風扇 AXP-200 本體 M3 L6 螺絲 多孔扣具 壓板 手轉螺絲 AMD 墊圈 ( 大 ) 背板 M3 L10 螺絲 775 用背蓋...
  • Page 37 零件 AXP-200 本體 ×1 ×1 ×1 擴充風扇架 背板 ×1 ×1 ×4 壓板 多孔扣具 手轉螺絲 2011 用 螺絲 M3 L10 ×5 M3 L6 ×7 螺絲 螺絲 Intel 墊圈 ( 小 ) 775 用背蓋 ×4 墊圈 ( 大 ) ×4 ×1 TY-14013 風扇...
  • Page 38 安装方式 : Step 1: Step 1 : 背蓋安裝 將四根 M3 L10 螺絲穿過背板 AMD 專用孔位後套上 AMD 用墊圈 ( 大 )。 Step 2: Step 3: Step3 : 將背板安裝於主機板上,穿過主機板的四 個螺絲孔位後,將四個手轉螺絲套上螺絲。 Step 4: Step 5: Step 4 : 將多孔扣具放上手轉螺絲上,將四個 Step 5 : 塗抹導熱膏於散熱器銅底處以及 CPU 鐵蓋 M3 L6 螺絲轉上孔具對應孔位。...
  • Page 39 Step 6: Step 6 : 散熱器本體安裝 將壓板放上散熱器鋁蓋上方,並將本體固定於 CPU 上方,之後將 M3 L6 螺絲鎖上壓板兩端。 Step 7: Step 7 : 風扇安裝 (TY-14013 風扇安裝 ) 將風扇放置於散熱器上方,並使用四根 M3 L17 螺絲將風扇固定。 Step 8: Step 8 : 風扇固定後,請將 PWM 4Pin 風扇接頭固定於主機板 CPU 風扇接頭即完成安裝。 The Ultimate Cooling Solutions! www.thermalright.com...
  • Page 40 Intel 775/115x/1366 AXP-200 安裝爆炸圖 注意 ! 在您安裝前請先至官網首頁是否有最新更新安裝指南 M3 L17 螺丝 TY-14013 风扇 AXP-200 本体 压板 M3 L6 螺丝 多孔扣具 手转螺丝 Intel 垫圈 ( 小 ) 背板 M3 L10 螺丝...
  • Page 41 零件 AXP-200 本体 ×1 ×1 ×1 扩充风扇架 背板 ×1 ×1 ×4 压板 多孔扣具 手转螺丝 2011 用螺丝 x4 M3 L10 ×5 M3 L6 ×7 螺丝 螺丝 Intel 垫圈 ( 小 ) 775 用背盖 ×4 垫圈 ( 大 ) ×4 ×1 TY-14013 風扇...
  • Page 42 安装方式 : Step 1: 1366 1156 1155 Step1: 背盖安装 依照您的处理器类型 (1366/115x/775) 选择对应于背板的孔位,将四根 M3 L10 螺丝穿过背板后套上 Intel 用垫圈 ( 小 )。 Step 3: Step 2: Step 2 : 背盖安装 ( 仅适用于 Socket 775) Step 3 : 将背板安装于主板上,穿过主板的四个螺 注意 : 当您安装于 775 主板时,请先将 775 用背 丝孔位后...
  • Page 43 Step 6: Step 6 : 散热器本体安装 将压板放上散热器铝盖上方,并将本体固定于 CPU 上方,之后将 M3 L6 螺丝锁上压板两端。 Step 7: Step 7 : 风扇安装 (TY-14013 风扇安装 ) 将风扇放置于散热器上方,并使用四根 M3 L17 螺丝将风扇固定。 Step 8: Step 8 : 风扇固定后,请将 PWM 4Pin 风扇接头固定于主板 CPU 风扇接头即完成安装。 The Ultimate Cooling Solutions! www.thermalright.com...
  • Page 44 Intel 2011 AXP-200 安裝爆炸圖 注意 ! 在您安裝前請先至官網首頁是否有最新更新安裝指南 M3 L17 螺丝 TY-14013 风扇 AXP-200 本体 M3 L6 螺丝 多孔扣具 压板 2011 用螺丝...
  • Page 45 零件 AXP-200 本体 ×1 ×1 ×1 扩充风扇架 背板 ×1 ×1 ×4 压板 多孔扣具 手转螺丝 2011 用螺丝 x4 M3 L10 ×5 M3 L6 ×7 螺丝 螺丝 Intel 垫圈 ( 小 ) 775 用背盖 ×4 垫圈 ( 大 ) ×4 ×1 TY-14013 風扇...
  • Page 46 安装方式 : Step 1: Step 1 : 将四个 2011 螺丝固定于主板扣具上。 Step 2: Step 2 : 将多孔扣具放置于 2011 固定螺丝上,并锁固上 4 颗 M3 L6 螺丝。 Step 3: Step 3 : 将散热器铜底以及 CPU 铁盖上均匀涂抹上导热膏。...
  • Page 47 AXP-200 Step 4: Step 4 : 散热器本体安装 将压板放上散热器铝盖上方,并将本体固定于 CPU 上方,之后将 M3 L6 螺丝锁上压板两端。 Step 5: Step 5 : 风扇安装 (TY-14013 风扇安装 ) 将风扇放置于散热器上方,并使用四根 M3 L17 螺丝将风扇固定。 Step 6: Step 6 : 风扇固定后,请将 PWM 4Pin 风扇接头固定于主板 CPU 风扇接头即完成安装。 The Ultimate Cooling Solutions!
  • Page 48 AXP-200 AM2/AM2+/AM3/AM3+/FM1/FM2 安裝爆炸圖 注意 ! 在您安裝前請先至官網首頁是否有最新更新安裝指南 M3 L17 螺丝 TY-14013 风扇 AXP-200 本体 M3 L6 螺丝 多孔扣具 压板 手转螺丝 AMD 垫圈 ( 大 ) 背板 M3 L10 螺丝 775 用背盖...
  • Page 49 零件 AXP-200 本体 ×1 ×1 ×1 扩充风扇架 背板 ×1 ×1 ×4 压板 多孔扣具 手转螺丝 2011 用螺丝 x4 M3 L10 ×5 M3 L6 ×7 螺丝 螺丝 Intel 垫圈 ( 小 ) 775 用背盖 ×4 垫圈 ( 大 ) ×4 ×1 TY-14013 風扇...
  • Page 50 安装方式 : Step 1: Step 1 : 背盖安装 将四根 M3 L10 螺丝穿过背板 AMD 专用孔位后套上 AMD 用垫圈 ( 大 )。 Step 2: Step 3: Step3 : 将背板安装于主板上,穿过主板的四个螺 丝孔位后,将四个手转螺丝套上螺丝。 Step 4: Step 5: Step 4 : 将多孔扣具放上手转螺丝上,将四个 Step 5 : 涂抹导热膏于散热器铜底处以及 CPU 铁 M3 L6 螺丝转上孔具对应孔位。...
  • Page 51 Step 6 : 散热器本体安装 将压板放上散热器铝盖上方,并将本体固定于 CPU 上方 . 之后将 M3 L6 螺丝锁上压板两端。 Step 7: Step 7 : 风扇安装 (TY-14013 风扇安装 ) 将风扇放置于散热器上方,并使用四根 M3 L17 螺丝将风扇固定。 Step 8: Step 8 : 风扇固定后,请将 PWM 4Pin 风扇接头固定于主板 CPU 风扇接头即完成安装。 The Ultimate Cooling Solutions! www.thermalright.com...
  • Page 52 Upgrading Your Fan to TY-150 series fans M3 L30 Screw M3 L4 Screw Enhanced Fan Mount Step 1: Step 1: Place the Enhanced Fan Mount on top of the Heatsink Body, pass four M3L4 Screws through the rectangle holes. Slide the frame to adjust your fan mounting position, then tighten the Enhanced Fan Mount.
  • Page 53 Montieren Sie den Lüfter, indem Sie die Verbinden Sie den Lüfterstecker mit dem CPU PWM Lüfteranschluss auf dem Mainboard. vier M3L30 Schrauben von oben durch die Die Installation ist nun abgeschlossen. Montagelöcher des Lüfters mit dem Rahmen verschrauben. The Ultimate Cooling Solutions! www.thermalright.com...
  • Page 54 風扇安裝圖 M3 L30 螺絲 M3 L4 螺絲 擴充風扇架 Step 1: Step 1: 將擴充風扇架放置於 AXP-200 本體上, 將 M3 L4 螺絲鎖固於框架四端, 在螺絲尚未轉緊前, 你可以微調風扇架的移動範圍。 Step 2: Step 3: Step 2: 將風扇放置於風扇框架上,並鎖上四根 Step 3: 你可以選擇安裝 140*25mm 風扇,或者 M3 L30 螺絲。 是我們的 TY150 風扇做為升級。...
  • Page 55 风扇安装图 M3 L30 螺丝 M3 L4 螺丝 扩充风扇架 Step 1: Step 1: 将扩充风扇架放置于 AXP-200 本体上, 将 W3 L4 螺丝锁固于框架四端, 在螺丝尚未转紧前, 你可以微调风扇架的移动范围。 Step 2: Step 3: Step 2: 将风扇放置于风扇框架上,并锁上四根 Step 3: 你可以选择安装 140*25mm 风扇,或者 M3 L30 螺丝。 是我们的 TY150 风扇做为升级。 The Ultimate Cooling Solutions!
  • Page 56: Technical Spec

    Technical Spec Heatsink Specifications: Dimension: Length 153mm x Width 140mm x Height 60mm Weight: 320g (Heatsink only) Heatpipe: 6mm heatpipe*6 units Copper Base: C1100 Pure copper nickel plated Fan Specification: Dimension: L108mm x H101mm x W14mm Weight: 40g Fan speed: 900~2500RPM (PWM controlled) Fan noise: 22~30 dBA MAX (Test distance 1.0M) Airflow: 16.0~44.5CFM MAX Connector: 4 Pin (PWM Fan connector)
  • Page 57: Technische Spezifikationen

    Maße (in mm): L108 x H101 x B14 Gewicht: 40g Drehzahl: 900 ~ 2500 U/min (PWM geregelt) Geräuschentwicklung: 22 ~ 30 dBA MAX (Messabstand 1,0 m) Fördermenge: 27,27 ~ 75,72 m³/h MAX Anschluss: 4 Pin (PWM Lüfteranschluss) The Ultimate Cooling Solutions! www.thermalright.com...
  • Page 58 散熱器規格 散熱器規格書 : 尺寸 : 長 Length 153mm x 寬 140mm x 高 60mm 重量 : 320 克 ( 本體重量 ) 熱導管 : 6mm 熱導管 * 6 支 銅底 : C1100 純銅底座鍍鎳處理 風扇規格書 : 尺寸 : 長 108mm x 寬 101mm x 高 14mm 重量...
  • Page 59 尺寸 : 长 108mm x 宽 101mm x 高 14mm 重量 : 40 克 风扇转速 : 900~2500RPM ( 可透过 PWM 控制 ) 风扇噪音 : 22~30dBA ( 一米测试距离 ) 风量 : 16.0~44.5CFM 接头类型 : 4Pin PWM 接头 The Ultimate Cooling Solutions! www.thermalright.com...
  • Page 60 28.5 73.5 85.5...
  • Page 61 Thermalright -- Endorsed by Critics, Chosen by Experts...
  • Page 64 The Ultimate Cooling Solutions! www.thermalright.com TEL: +886-2-8663-6630 FAX: +886-2-8663-6645 EMAIL: sales@thermalright.com...
