Summary of Contents for Thermalright Silver Arrow SB-E

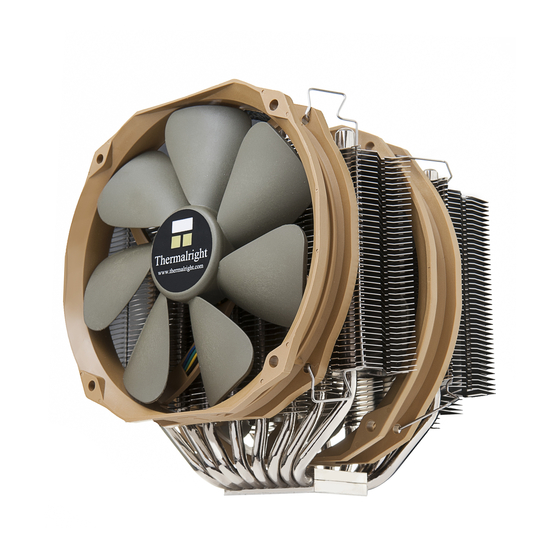

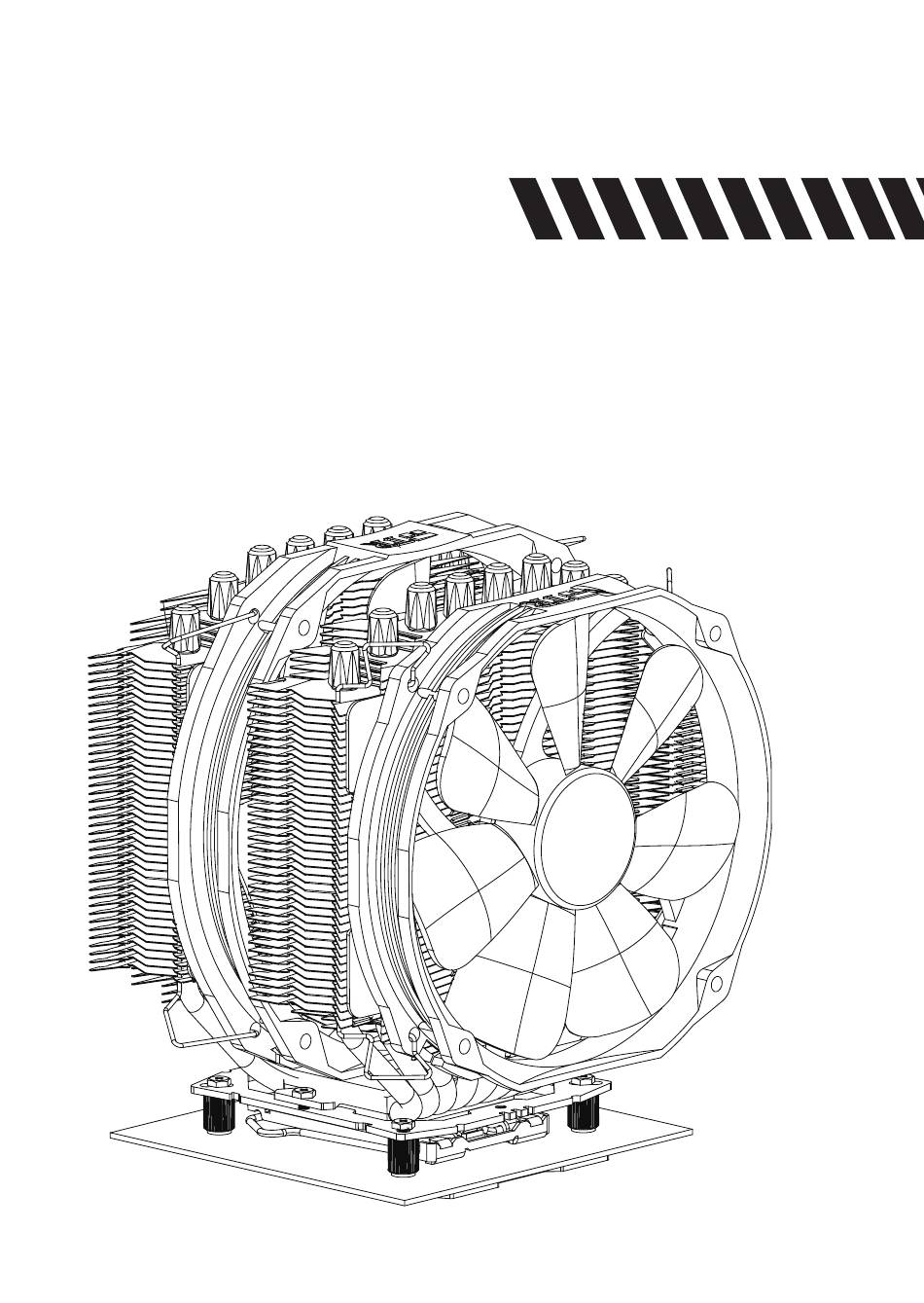

- Page 1 Thermalright Silver Arrow SB-E...
- Page 3 Assembly package Silver Arrow SB-E × 4 × 1 × 4 × 8 × 4 × 6 × 4 × 4 × 1 × 1 × 1 × 4 × 1 × 2 × 1 × 1...
-
Page 4: Exploded View
Silver Arrow SB-E Intel 775/1155/1156/1366 Exploded View Important! Before proceeding with installation, please check for the most up-to-date instructions at www.themalright.com TY150 Fan TY150 Fanclip Anti Vibration Pads TY141 Fanclip Heatsink Body TY141 Fan M3 L6 Screw Anchoring Mount Wrench... - Page 5 Component Heatsink Body ×1 Anchoring Mount ×1 Metal Back Plate ×1 Mounting Plate ×1 Screw Nut ×4 LGA2011 Type B Screw Pillars x4 TY-141 Fanclip x4 M3 L10 Screw ×4 M3 L6 Screw ×6 TY-150 Fanclip x2 Intel Washer (small) ×4 AMD Washer (big) ×4 Anti Vibration Pad ×8 Backplate cap ×1...
-
Page 6: Installation Instructions
Installation Instructions: Step 1: 1366 1156 1155 Step 1 : Back Plate Installation Choose the platform (775/1155/1156/1366) you are in use. Make four M3L10 Screws go through the Metal Back Plate from bottom towards top. And then place the Metal Back Plate on the table. Put the four Washers (for Intel) around the Screw Cylinders. - Page 7 Repeat the procedure with the TY141 Fan Clip on the TY-141 Fan. Step 8: Step 8 : Installation completed Plug in the fan connector to the CPU PWM Fan socket on the motherboard. Installation complete The Ultimate Cooling Solutions! www.thermalright.com...
- Page 8 Silver Arrow SB-E Intel 775/1155/1156/1366/(2011) *with separate LGA2011 Retention Kit. Exploded View Important! Before proceeding with installation, please check for the most up-to-date instructions at www.themalright.com TY150 Fan TY150 Fanclip Anti Vibration Pads TY141 Fanclip Heatsink Body M3 L6 Screw...
- Page 9 M3 L6 Screw ×6 TY-150 Fanclip x2 Intel Washer (small) ×4 AMD Washer (big) ×4 Anti Vibration Pad ×8 Backplate cap ×1 Wrench ×1 PWM Y-Cable ×1 Thermal paste ×1 TY 141 Fan ×1 TY 150 Fan ×1 The Ultimate Cooling Solutions! www.thermalright.com...
- Page 10 Installation Instructions: Step 1: Step 1 : Screw Pillar Installation Screw on the four LGA2011 Type B Screw Pillars into the Heatsink studs on the ILM Assembly Frame around the processor socket. Step 2: Step 2 : Anchoring Mount Installation Place the Anchoring Mount onto the four LGA2011 Type B Screw Pillars, secure it by tightening it with 4 M3L6 Screws.
- Page 11 Repeat the procedure with the TY141 Fan Clip on the TY-141 Fan. Step 6: Step 6 : Installation completed Plug in the fan connector to the CPU PWM Fan socket on the motherboard. Installation complete. The Ultimate Cooling Solutions! www.thermalright.com...
- Page 12 Silver Arrow SB-E AM2/AM2+/AM3 Exploded View Important! Before proceeding with installation, please check for the most up-to-date instructions at www.themalright.com TY150 Fan TY150 Fanclip Anti Vibration Pads TY141 Fanclip Heatsink Body M3 L6 Screw TY141 Fan Anchoring Mount Wrench Mounting Plate...
- Page 13 M3 L6 Screw ×6 TY-150 Fanclip x2 Intel Washer (small) ×4 AMD Washer (big) ×4 Anti Vibration Pad ×8 Backplate cap ×1 Wrench ×1 PWM Y-Cable ×1 Thermal paste ×1 TY 141 Fan ×1 TY 150 Fan ×1 The Ultimate Cooling Solutions! www.thermalright.com...
- Page 14 Installation Instructions: Step 1: Step 1 : Back Plate Installation Choose the platform (AMD) you are in use. Make four M3L10 Screws go through the Metal Back Plate from bottom towards top. And then place the Metal Back Plate on the table. Put the four Washers (for AMD) around the Screw Cylinders.
- Page 15 Fan Clip Slot. Pass the end of the Fan Clips through the mounting hole of the TY-150 Fan. Repeat the procedure with the TY141 Fan Clip on the TY-141 Fan. Step 8: Step 8 : nstallation completed Plug in the fan connector to the CPU PWM Fan socket on the motherboard. The Ultimate Cooling Solutions! www.thermalright.com...
