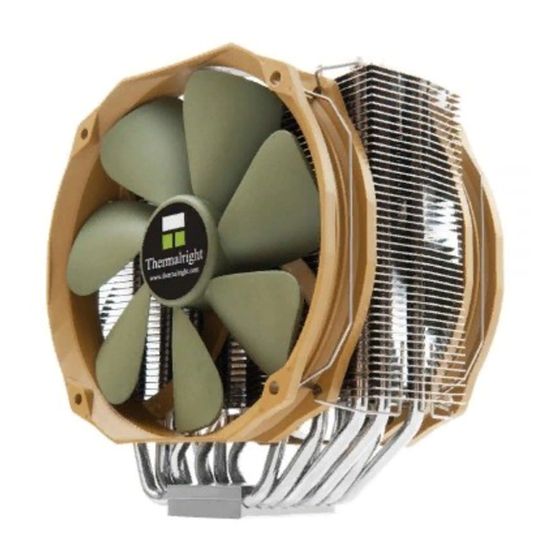

Archon IB-E X2 Intel 775/1150/1151/1155/1156/1366 Exploded View Important! Before proceeding with installation, please check for the most up-to-date instructions at www.themalright.com 14cm Fan Clip Anti Vibration Pad TY-141SV FAN Heatsink Body Mounting Plate M3 L6 Screw Anchoring Mount Screw Nut...
Page 5
M3 L6 Screw ×7 14cm Fan Clip ×4 Intel Washer (small) ×4 AMD Washer (big) ×4 Anti Vibration Pad ×8 TY-141SV Fan ×2 Back Plate Cap ×1 Chill Factor III ×1 Mylar Film×1 PWM Y-cable ×1 The Ultimate Cooling Solutions! www.thermalright.com...
Installation Instructions: Step 1: Step 1 : Part Installation Take out Archon IBE X2 heat-sink body from the brown box. Apply Anti-Vibration Paddings to 4 corners on both sides of the Heatsink Body. Pull both ends of the Fan clip and make them go through holes on the corners of the heat-sink.
Page 7
Step 5: Step 6: Step 5 : Anchoring Mount Installation Step 6 :Applying Thermal Paste Place the Anchoring Mount on the Screw Apply the included Thermal Paste, Chill Factor Nuts. Use the four M3L6 Screws to fix the III to the base of the Heatsink and the surface Anchoring Mount on to the Screw Nuts.
Page 8
Archon IB-E X2 Intel 2011/2011-3/2066 Exploded view Important! Before proceeding with installation, please check for the most up-to-date instructions at www.themalright.com 14cm Fan Clip Anti Vibration Pad TY-141SV FAN Heatsink Body Mounting Plate Anchoring Mount M3 L6 Screw LGA2011 Type B...
Page 9
M3 L6 Screw ×7 14cm Fan Clip ×4 Intel Washer (small) ×4 AMD Washer (big) ×4 Anti Vibration Pad ×8 TY-141SV Fan ×2 Back Plate Cap ×1 Chill Factor III ×1 Mylar Film×1 PWM Y-cable ×1 The Ultimate Cooling Solutions! www.thermalright.com...
Page 10
Installation Instructions: Step 1: Step 1 : Part Installation Take out Archon IBE X2 heat-sink body from the brown box. Apply Anti-Vibration Paddings to 4 corners on both sides of the Heatsink Body. Pull both ends of the Fan clip and make them go through holes on the corners of the heat-sink.
Page 11
Archon IB-E X2 Step 4: Step 5: Step 5 : Mounting Plate Installation Step 4 : Applying Thermal Paste Place the Heatsink Body on top of the CPU. Make Apply the Thermal Paste to the base of the Mounting Plate go through the Heatsink Body.
Page 12
Archon IB-E X2 AM2/AM2+/AM3/AM3+/AM4/FM1/FM2/FM2+ Exploded View Important! Before proceeding with installation, please check for the most up-to-date instructions at www.themalright.com Anti Vibration Pad 14cm Fan Clip TY-141SV FAN Heatsink Body Mounting Plate M3 L6 Screw Anchoring Mount Screw Nut AMD Washer (Big)
Page 13
M3 L6 Screw ×7 14cm Fan Clip ×4 Intel Washer (small) ×4 AMD Washer (big) ×4 Anti Vibration Pad ×8 TY-141SV Fan ×2 Back Plate Cap ×1 Chill Factor III ×1 Mylar Film×1 PWM Y-cable ×1 The Ultimate Cooling Solutions! www.thermalright.com...
Page 14
Installation Instructions: Step 1: Step 1 : Part Installation Take out Archon IBE X2 heat-sink body from the brown box. Apply Anti-Vibration Paddings to 4 corners on both sides of the Heatsink Body. Pull both ends of the Fan clip and make them go through holes on the corners of the heat-sink.
Page 15
Clips, by pulling the Fan Clips to place the four Fan socket on the motherboard. Installation ends at the four holes on the TY-141SV fan, Now complete. repeat the same for the second fan on the other side of the heat-sink. The Ultimate Cooling Solutions! www.thermalright.com...
Page 16
Archon IB-E X2 Intel 775/1150/1151/1155/1156/1366 Explosionszeichnung Wichtig! Bitte prüfen Sie vor der Montage, ob für Ihren Kühler aktualisierte Montagehinweise auf der Webseite www.themalright.com verfügbar sind. 14 cm Lüfterklammer Anti-Vibrationspad TY-141SV Lüfter Kühlkörper Befestigunsplatte M3 L6 Schraube Montagerahmen Rändelschraube Backplateeinsatz Intel Unterlegscheibe (für LGA775)
Page 18
Installationsanleitung: Schritt 1: Nehmen Sie den Archon IB-E X2 Kühlkörper aus der braunen Verpackung. Bringen Sie die vier selbstklebenden Anti-Vibrationspads an den Ecken beider Seiten des Kühlkörpers an. Anschließend führen Sie die Enden der Lüfterklammern in die dafür vorgesehenen Löcher (siehe Abbildung) auf beiden Seiten.
Page 19
Schritt 5: Schritt 6: Setzen Sie den Montagerahmen auf die Tragen Sie mit Hilfe einer alten Kreditkarte Rändelschrauben. Verwenden Sie die vier (oder etwas Vergleichbarem) eine hauchdünne M3L6 Schrauben, um den Montagerahmen Schicht der Chill Factor III Wärmeleitpaste auf auf den Rändelschrauben zu befestigen. die Oberfläche der CPU und die Unterseite des Kühlers auf.
Page 20
Archon IB-E X2 Intel 2011/2011-3/2066 Explosionszeichnung Wichtig! Bitte prüfen Sie vor der Montage, ob für Ihren Kühler aktualisierte Montagehinweise auf der Webseite www.themalright.com verfügbar sind. 14 cm Lüfterklammer Anti-Vibrationspad TY-141SV Lüfter Kühlkörper Befestigungsplatte Montagerahmen M3 L6 Schraube LGA2011 Type B...
Page 22
Installationsanleitung: Schritt 1: Nehmen Sie den Archon IB-E X2 Kühlkörper aus der braunen Verpackung. Bringen Sie die vier selbstklebenden Anti-Vibrationspads an den Ecken beider Seiten des Kühlkörpers an. Anschließend führen Sie die Enden der Lüfterklammern in die dafür vorgesehenen Löcher (siehe Abbildung) auf beiden Seiten.
Page 23
Archon IB-E X2 Schritt 4: Schritt 5: Platzieren Sie nun den Kühlkörper auf die CPU. Tragen Sie mit Hilfe einer alten Kreditkarte (oder Führen Sie anschließend die Befestigungsplatte etwas Vergleichbarem) eine hauchdünne Schicht durch den Kühlkörper und befestigen Sie diese der Chill Factor III Wärmeleitpaste auf die...
Page 24
Archon IB-E X2 AM2/AM2+/AM3/AM3+/AM4/FM1/FM2/FM2+ Explosionszeichnung Wichtig! Bitte prüfen Sie vor der Montage, ob für Ihren Kühler aktualisierte Montagehinweise auf der Webseite www.themalright.com verfügbar sind. Anti-Vibrationspad 14 cm Lüfterklammer TY-141SV Lüfter Kühlkörper Befestigungsplatte M3 L6 Schraube Montagerahmen Rändelschraube AMD Unterlegscheibe (groß)
Page 26
Installationsanleitung: Schritt 1: Nehmen Sie den Archon IB-E X2 Kühlkörper aus der braunen Verpackung. Bringen Sie die vier selbstklebenden Anti-Vibrationspads an den Ecken beider Seiten des Kühlkörpers an. Anschließend führen Sie die Enden der Lüfterklammern in die dafür vorgesehenen Löcher (siehe Abbildung) auf beiden Seiten.
Page 27
PWM Y-Kabel und schließen Sie das Kabel jeweiligen Lüfterklammern, indem Sie die Ecken nun an den CPU PWM Lüfteranschluss des paarweise über die vier Montagelöcher ziehen Mainboards an. Die Installation ist abgeschlossen. und dort einrasten lassen. The Ultimate Cooling Solutions! www.thermalright.com...
Page 29
風扇線扣 x 4 Intel 墊片 ( 小 ) x 4 AMD 墊片 ( 大 ) x 4 風扇避震墊 x4 TY-141SV 風扇 x 2 孔蓋 x 1 CF3 導熱膏 x 1 塑膠薄膜片 x 1 PWM 分歧線 x 1 The Ultimate Cooling Solutions! www.thermalright.com...
Page 33
風扇線扣 x 4 Intel 墊片 ( 小 ) x 4 AMD 墊片 ( 大 ) x 4 風扇避震墊 x4 TY-141SV 風扇 x 2 孔蓋 x 1 CF3 導熱膏 x 1 塑膠薄膜片 x 1 PWM 分歧線 x 1 The Ultimate Cooling Solutions! www.thermalright.com...
Page 37
風扇線扣 x 4 Intel 墊片 ( 小 ) x 4 AMD 墊片 ( 大 ) x 4 風扇避震墊 x4 TY-141SV 風扇 x 2 孔蓋 x 1 CF3 導熱膏 x 1 塑膠薄膜片 x 1 PWM 分歧線 x 1 The Ultimate Cooling Solutions! www.thermalright.com...
Archon IB-E X2 Technische Spezifikationen Kühlkörper Spezifikationen: Maße (in mm): Länge 155 x Breite 53.66 x Höhe 165.2 Gewicht: 750 g (nur Kühlkörper) Heatpipe: 6 mm Heatpipe * 8 Stück Copper Base: C1100 reines Kupfer, vernickelt Lüfter Spezifikationen: Maße (in mm): L152 x H140 x B26,5...
Page 45
The Ultimate Cooling Solutions! www.thermalright.com Thermalright Produkte werden in Europa importiert und vertrieben TEL: +886-2-2915-5005 durch die: FAX: +886-2-2915-5123 PC-Cooling GmbH Eichenallee 3 EMAIL: sales@thermalright.com 24589 Nortorf...
