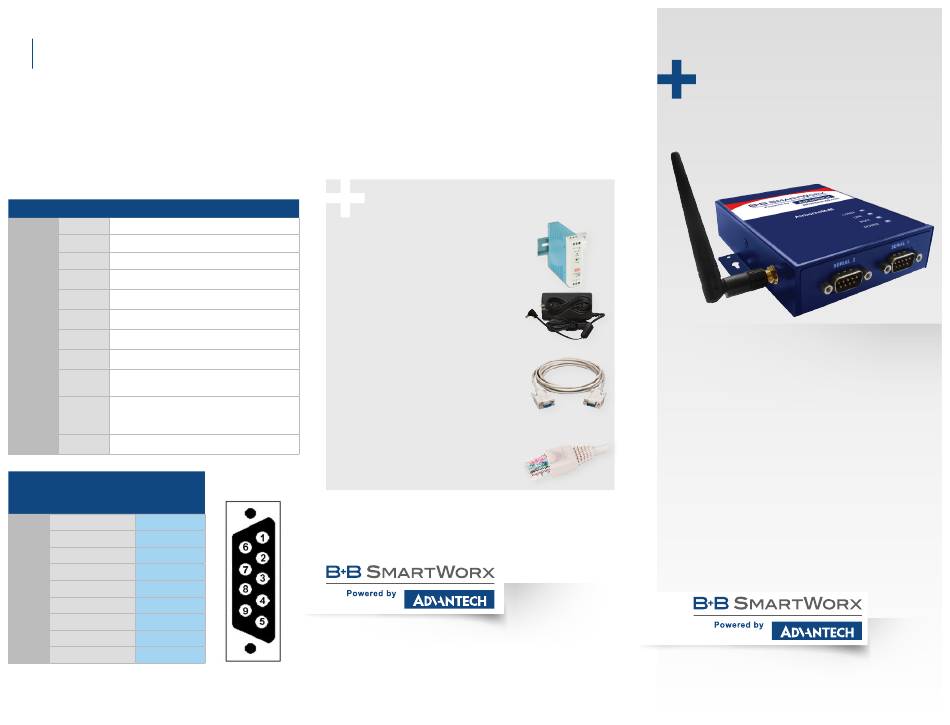

Check Your Setup
Connect the Antenna to the antenna connector located on
the side of the device.
If your device is connected and configured correctly, you
will see the following LED Status:
COMM: Green (ON when port is open)
LINK: Green
POST: Green
POWER: Blue
LED COLOR AIRBORNE DEVICE STATE
Off
Adapter is not powered.
POWER
Blue
Adapter is powered.
Off
Adapter is not powered.
Adapter failed Power On Self Test ("POST") and is not config-
Red
ured for wireless communication.
POST
Adapter passed POST but is not configured for wireless network
Amber
communication.
Adapter passed POST and is configured for wireless com-
Green
munication.
Adapter is not powered.
Off
(Periodic Blinking) Adapter is searching for a valid network
Red / Off
LINK (Access Point) that matches device's configuration.
Green
Adapter has successfully associated with an Access Point.
If Power LED is also Off, then Adapter is not powered.
Off
If Power LED is On then, No TCP session from WLAN or
COMM
Ethernet interface has been established.
A TCP connection to the adapter has been established from the
Green
Wireless or Ethernet interfaces but no traffic has been detected.
RS-232 (DTE)
PIN Port 1 & 2 RS-422/485
(Default)
1 No Connect No Connect
2 RxD RxD +
3
TxD TxD +
4 No Connect No Connect
5
GND GND
6 No Connect RxD -
7 RTS No Connect
8 CTS No Connect
9 No Connect TxD -
Document Number: 710-11430-00_R0_ABDN-SE-IN54x0_0817qsg
Recommended Accessories
Model MDR-20-24
120VAC/5VDC Power Supply
or
Model PS-WDS
Power Supply with Appropriate
Cord (North America, EU, UK)
Serial Cables
Model C5UMB10FBG
Ethernet Cable
1-888-948-2248 | Europe: +353 91 792444
advantech-bb.com
707 Dayton Road | PO Box 1040 | Ottawa, IL 61350
Phone: 815-433-5100 | Fax: 815-433-5109
www.advantech-bb.com | E-mail: support@advantech-bb.com

QUICK START

GUIDE
ABDN-SE-IN5410 &
ABDN-SE-IN5420

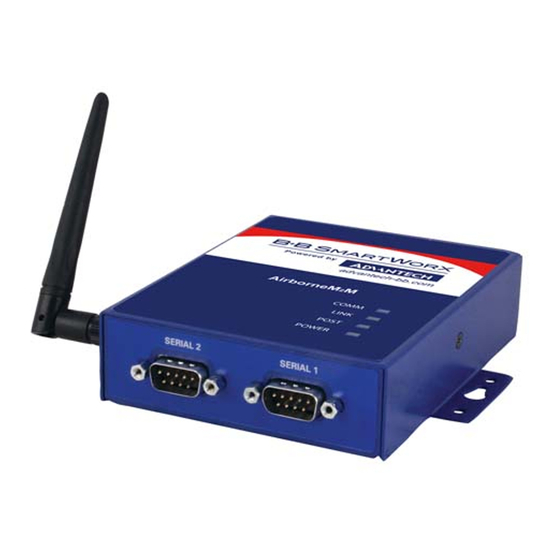

Industrial Serial Device Server
Before you begin, be
sure you have the following:
+ Industrial Serial Device Server (included)
+ CD with Airborne Management Center
Software (included)
+ Antenna (included)
+ Power Supply (not included)
+ Ethernet Cable (not included)
www.advantech-bb.com
Fast and easy on the web:
