Advantech ASMB-781 Startup Manual

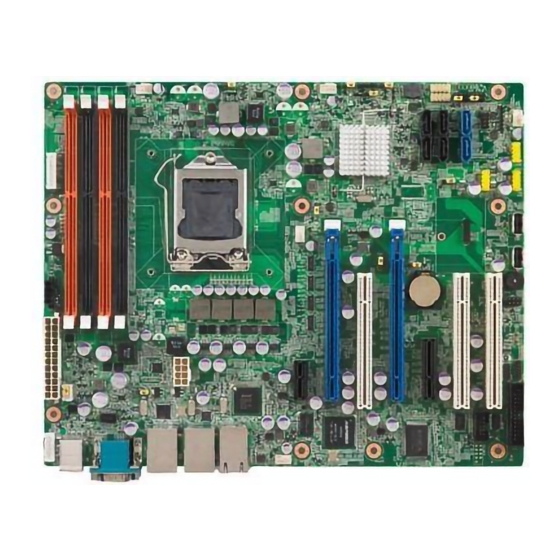

ASMB-781 Intel
ATX Server Board with 2 PCIe x16 Expansion Slots
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 ASMB-781 Startup Manual
• 1 Driver CD (user's manual is included)
• 2 Serial ATA HDD data cables
• 2 Serial ATA HDD power cables
• 1 I/O port bracket
• 1 Warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note:
Acrobat Reader is required to view any PDF
file. Acrobat Reader can be downloaded at:
www.adobe.com/Products/acrobat/readstep2.
html (Acrobat is a trademark of Adobe)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the ASMB-781 series Rev. A1
Part No. 2006S78110
Printed in China
Xeon E3/ Core™i3 Single 1155 Socket
® ®
1st Edition,
Jan 2012
Specifications
Standard SBC Functions
• CPU: LGA1155 Intel® Xeon® E3/ Core™ i3
• BIOS: AMI 64 Mb SPI BIOS
• Chipset: Intel® C206
• System memory: Dual Channel DDR3 ECC/Non-ECC
1066/1333 MHz unbuffered DIMM, Max. 32 GB
Note: Due to the inherent limitations of PC architecture,
the system may not fully detect 32 GB RAM
when 32 GB RAM is installed.
• SATA2/SATA3 Interface: 4 SATA2 3 Gb/s ports, 2 SATA3
6Gb/s Intel® Matrix Storage (for Windows® only) (Sup-
ports software RAID 0, 1, 10, & 5)
• Serial ports: Two serial ports, only support RS-232
• Parallel port: One parallel port, supports SPP/EPP/ECP
modes.
• Keyboard/mouse connector: Supports standard PS/2
keyboard and mouse
• Watchdog timer: 255 level timer intervals
• USB 2.0: Supports up to twelve USB 2.0 ports (2* Type-A)
VGA Interface
• Chipset: Aspeed AST2300/1300
• Display Memory: 64 MB
• Resolution: Supports VGA up to resolution 1920 x 1200
@ 60 Hz refresh rate

Ethernet interface

• Interface: 10/100/1000 Mbps
• Controller: LAN1:Intel
®
LAN3/4: Intel 82580DB (optional)
®
Mechanical and Environmental
• Dimensions (L x W): 304.8 x 244 mm (12" x 9.6")
• Power supply voltage: +3.3 V, +5 V, ±12 V, 5 Vsb
• Power consumption: Max. load: +3.3 V @ 2.74 A, +5 V
@ 1.12A, +12 V @ 0.08 A, +12 V(8P) @ 4.86 A, +5 Vsb
@ 1.81A, -12 V @ 0.01 A
• Operating temperature: 0 ~ 60° C (depending on CPU)
• Weight: 0.5 kg (weight of board)
ASMB-781 Startup Manual 1
82579LM; LAN2: Intel 82574L;
®
