Advantech ASMB-830 Series Startup Manual

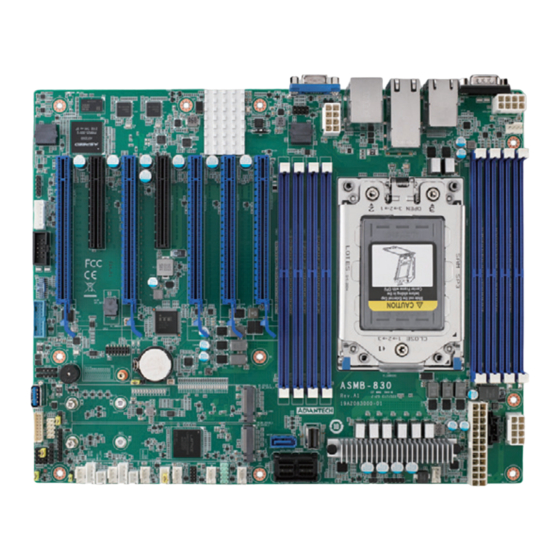

ASMB-830 Series LGA 4094 AMD EPYC™ 7003 ATX Server
Board with 8 x DDR4, 5 x PCIe x16, 9 x SATA3, 5 x USB3.2
Gen1, Dual 10GbE, IPMI
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 x ASMB-830 Startup Manual
• 1 x SATA data cables
• 1 x SATA power cables
• 2 x CPU power cables (8P)
• 1 x I/O port bracket
If any of these items are missing or damaged, please
contact your distributor or sales representative immediately.
Note 1: Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at:
https://www.adobe.com/downloads.html
(Acrobat is a trademark of Adobe)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://support.advantech.com
Register your products on our website and get 2
months extra warranty for Free at:
http://www.register.advantech.com
This manual is for the ASMB-830 series Rev. A1
Part No. 2042083000
Printed in China
Specifications
Standard M/B Functions
• CPU: SP3 LGA4094 AMD EPYC™ 7003 Series proces-
• BIOS: AMI 256 Mbit SPI BIOS
• System Memory: 8* DDR4-2666/2933/3200
• SATA Interface: 8 via SFF-8643 ports and 1 SATA 6Gb/s
• Serial Ports: 1 at rear IO, 1 onboard header, only sup-
• Keyboard/Mouse Header (KBMS2): Supports the stan-
• Watchdog Timer: 255 level timer intervals
• USB Port: Supports up to 5 x USB 3.2 Gen1 ports (2 rear
VGA Interface
• Chipset: ASPEED AST2500
• Display Memory: 64 MB
• Resolution: Supports VGA up to resolution 1920 x 1200
Ethernet Interface
• Interface: 10/100/1000 Mbps & 10 GbE Base-T
• Controller: LAN1/2: Intel I210; LAN3/4: Intel X550
Mechanical and Environment
• Dimensions (L x W): 244 x 304 mm (9.6" x 12")
• Power Supply Voltage: +3.3 V, +5 V, ±12 V, +5 Vs
• Power Consumption (mainboard only, excluding IO
• Weight: 1.05 kg (weight of board)
• Operating Temperature: 0 ~ 60°C (depending on CPU)
1st Edition
Febuary 2022
sors
Registered ECC DIMM, Max. Capacity 512 GB
Note 2: Due to the inherent limitations of the PC archi-
tecture, the system may not fully detect 512 GB
RAM when 512 GB RAM is installed.
port
ports RS-232
dard PS/2 keyboard and mouse via PS/2 cable
ports, 2 ports from onboard 20-pin header and 1*Type-A
on board)
@ 60 Hz refresh rate
device): Max. load: +3.3 V @ 12.646 A, +5 V@ 3.004 A,
+12 V @ 24.731 A,+5 Vsb @ 0.18 A, -12 V@ 0.082 A,
12V_8P @ 24.88 A
ASMB-830 Startup Manual 1
