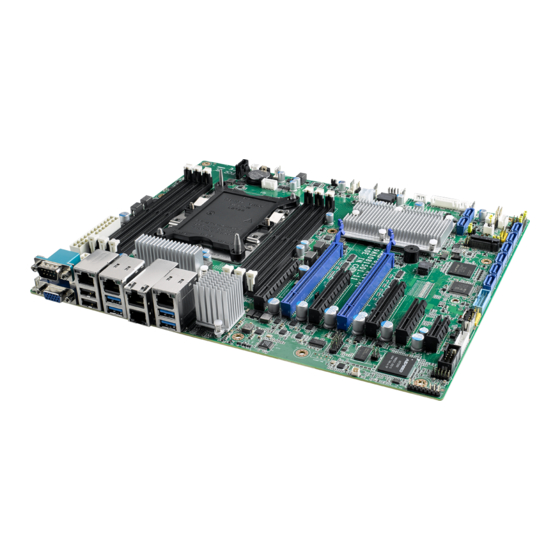

Lga 3647 intel xeon processor scalable family server board with 6 ddr4, 5 pcie x8 or 2 pcie x16 and 1 pcie x8, 8 sata3, 6 usb3.0, dual 10gbe, ipmi
Hide thumbs Also See for ASMB-815 Series:

Advertisement

Quick Links

ASMB-815 Series LGA 3647 Intel Xeon® Processor Scalable
Family Server Board with 6 DDR4, 5 PCIe x8 or 2 PCIe x16
and 1 PCIe x8, 8 SATA3, 6 USB3.0, Dual 10GbE, IPMI
Startup Manual
Packing List
Before you begin installing your card, please make sure
that the following items have been shipped:
• 1 ASMB-815 Startup Manual
• 1 Driver CD
• 2 Serial ATA HDD data cables
• 2 Serial ATA HDD power cables
• 2 CPU power cables (8P)
• 1 I/O port bracket
• 1 Warranty card
If any of these items are missing or damaged, please
contact your distributor or sales representative immediately.
Acrobat Reader is required to view any PDF file.
Note 1:
Acrobat Reader can be downloaded at:
https://www.adobe.com/downloads.html
(Acrobat is a trademark of Adobe)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://support.advantech.com
This manual is for the ASMB-815 series Rev. A1
Part No. 2001815I10
Print in China
Specifications
Standard M/B Functions
• CPU: LGA3647-P0 Intel Xeon® Processor scalable family
series
• BIOS: AMI 256 Mb SPI BIOS
• Chipset: Intel® C622 PCH
• System Memory: 6* DDR4-1866/2133/2400/2666
Registered ECC DIMM, Max. Capacity 192 GB
Note 2:
• SATA Interface: 8 SATA3 6 Gb/s ports Intel Rapid
Storage (for Windows only) (SATA0-SATA7 supports
software RAID 0, 1, 10 & 5)
• Serial Ports: One onboard header, only supports RS-232
• Keyboard/Mouse Header (KBMS2): Supports the stan-
dard PS/2 keyboard and mouse via PS/2 cable
• Watchdog Timer: 255 level timer intervals
• USB Port: Supports up to 6 USB 3.0 ports (2 ports from
onboard 20-pin header) and 7 USB 2.0 ports (1*Type-A,
4 ports from onboard 10-pin header)
VGA Interface
• Chipset: ASPEED AST2500/2510
• Display Memory: 64 MB
• Resolution: Supports VGA up to resolution 1920 x 1200
@ 60 Hz refresh rate

Ethernet Interface

• Interface: 10/100/1000 Mbps & 10 GbE Base-T
• Controller: LAN1/2: Intel I210; LAN3/4: Intel X557
Mechanical and Environment
• Dimensions (L x W): 244 x 304 mm (9.6" x 12")
• Power Supply Voltage: +3.3 V, +5 V, ±12 V, +5 Vs
• Power Consumption (mainboard only, excluding IO
device): Max. load: +3.3 V @ 2.77 A, +5 V@ 7.01 A,
+12 V @ 0.58 A,+5 Vsb @ 013 A, -12 V@ 0.06 A,
12V_8P @ 17.58A
• Operating Temperature: 0 ~ 60° C (depending on CPU)
• Weight: 0.91 kg (weight of board)
1st Edition
July 2017
Due to the inherent limitations of the PC architec-
ture, the system may not fully detect 192 GB
RAM when 192 GB RAM is installed.
ASMB-815 Startup Manual 1
