MIXING AMPLIFIER
2
POWER
ON
OFF
BASS
MIN
O W N E R ' S M AN U AL
Before operating, please read this manual carefully.
FEATURES
l Three Mic inputs, two Aux inputs, and one Aux output for link
l Transformer with 100V, 70V rated power and 4 ohms rated resistance output
(balanced, no ground)
l Mic 1 with muting function, for making a broadcast with the highest level of
priority
l Individual volume control for each channel
l Bass and treble tone control
l A five-element LED level meter, easy for monitoring sound level
l Output short circuit protection and alarm
4
6
8
10
OUTPUT
TONE
MIC1
5
TREBLE
4
6
3
2
1
MAX
MIN
MAX
0
10
MP-200P Ⅱ
MIC2
MIC3
5
5
4
6
4
6
7
3
7
3
7
8
2
8
2
8
2
9
1
9
1
9
1
0
10
0
10
1
P.A. SERIES
MP 200PⅡ
MP 300PⅡ
MP 600PⅡ
MP1000PⅡ
MIX AMPLIFIER
AUX1
AUX2
5
5
MIC1
4
6
4
6
3
7
3
7
8
2
8
9
1
9
0
10
0
10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DSPPA MP 200P II
Summary of Contents for DSPPA MP 200P II
- Page 1 P.A. SERIES MP 200PⅡ MIXING AMPLIFIER MP 300PⅡ MP 600PⅡ MP1000PⅡ MP-200P Ⅱ MIX AMPLIFIER OUTPUT POWER TONE MIC1 MIC2 MIC3 AUX1 AUX2 MIC1 BASS TREBLE O W N E R ’ S M AN U AL Before operating, please read this manual carefully. FEATURES l Three Mic inputs, two Aux inputs, and one Aux output for link l Transformer with 100V, 70V rated power and 4 ohms rated resistance output...
-
Page 2: Front Panel

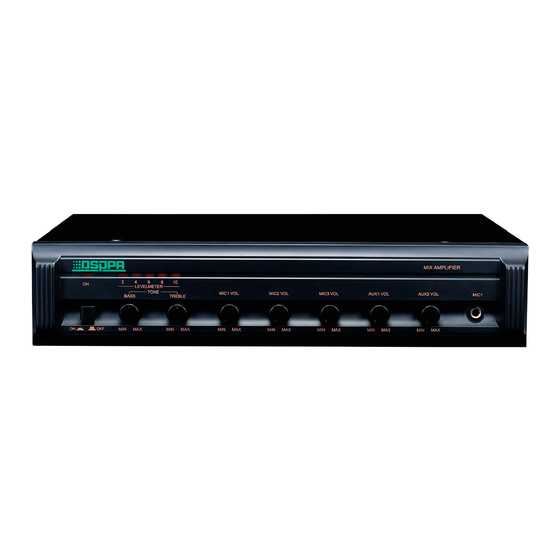

FRONT PANEL AMPLIFIER MP-200PII OUTPUT POWER TONE MIC1 MIC2 MIC3 AUX1 AUX2 MIC1 BASS TREBLE LED power indicator (for main power) LED level meter Indicating output level. Power switch (for main power) Bass control Adjusting bass response. Treble control Adjusting treble response. Mic volume control Adjusting microphone volume. - Page 3 Connecting to auxiliary sound source equipment 5. AUX output Connecting to amplifier 6. Output terminals Connecting to speakers 7. Mute control Adjusting muting grade. Note: It is better to only use one pair of output terminals when connecting this unit to speakers.
- Page 4 CONNECTIONS DECK TUNER 100V AUX OUT AUX2 AUX1 MIC3 MIC2 MIX AMPLIFIER MP-200PⅡ OUTPUT POWER TONE MIC1 MIC2 MIC3 AUX1 AUX2 MIC1 BASS TREBLE PRIORITY MIC EXPLANATIONS OF MUTING FUNCTION Mic 1 input has the highest level of priority as the signal inputting to Mic 1 can override other input signals.
- Page 5 PRECAUTION OF INSTALLATION Do not block ventilation holes. 2. The amplifier should not be placed in any of the areas: 1) with poor ventilation; 2) exposed to direct sunlight; 3) with high ambient temperature or adjacent to heat-generating equipment; 4) with high humidity or heavy dust; 5) susceptible to vibration.
-
Page 6: Specifications
● When the “Power switcher” is off, please pull out the power cord from the socket. ● Please keep the equipment out of water. ● To reduce the risk of electric shock, do not remove the cover. ● Please contact us or authorized dealers for servicing. DSPPA AUDIO CO., LTD.
