SC&T HE04M User Manual

Hide thumbs Also See for HE04M:
Table of Contents

Advertisement

Quick Links

Download this manual

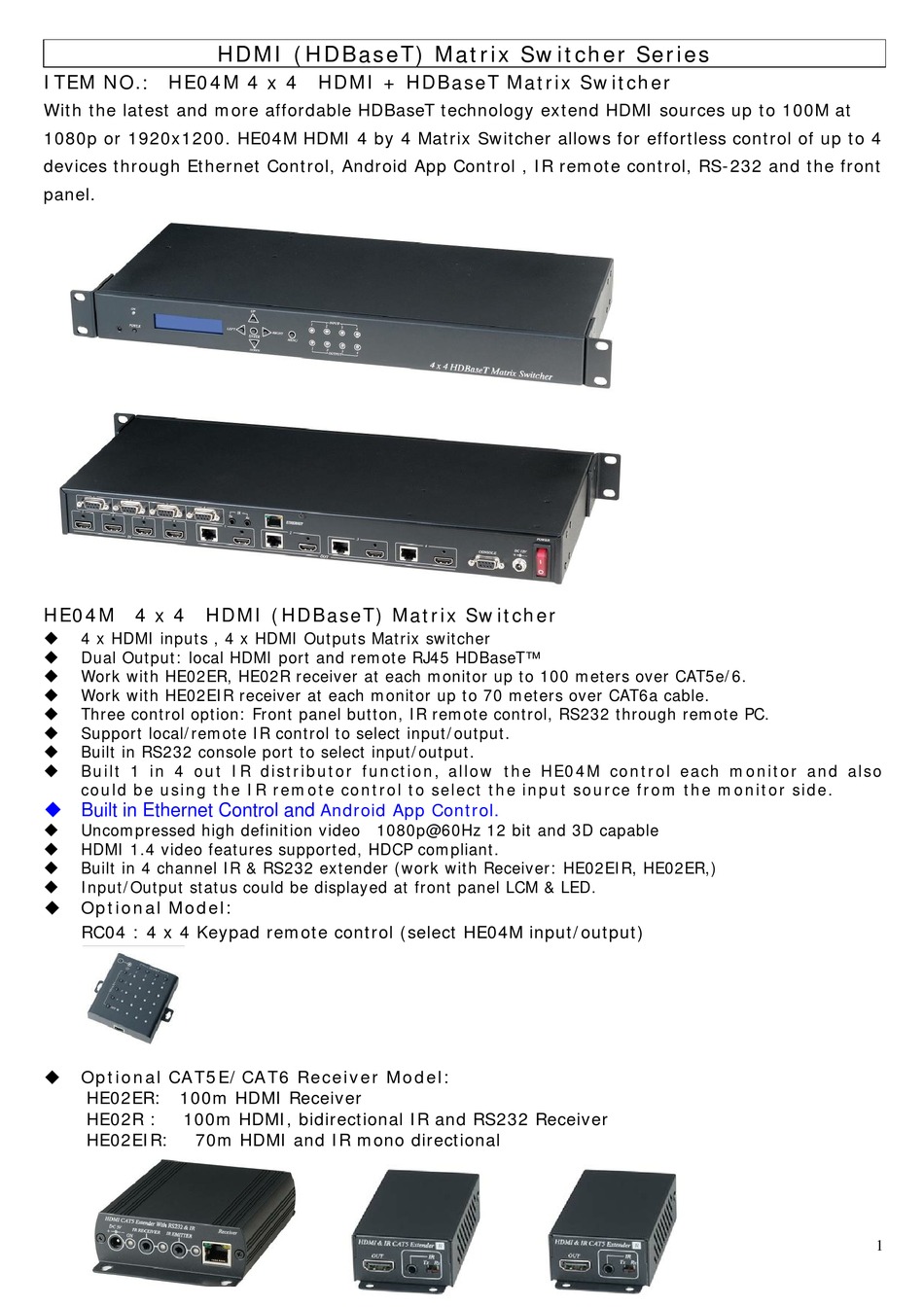

HDMI (HDBaseT) Matrix Switcher Series
ITEM NO.: HE04M 4 x 4 HDMI + HDBaseT Matrix Switcher
With the latest and more affordable HDBaseT technology extend HDMI sources up to 100M at
1080p or 1920x1200. HE04M HDMI 4 by 4 Matrix Switcher allows for effortless control of up to 4
devices through Ethernet Control, Android App Control , IR remote control, RS-232 and the front
panel.
HE04M 4 x 4 HDMI (HDBaseT) Matrix Switcher
4 x HDMI inputs , 4 x HDMI Outputs Matrix switcher
Dual Output: local HDMI port and remote RJ45 HDBaseT™
Work with HE02ER, HE02R receiver at each monitor up to 100 meters over CAT5e/6.
Work with HE02EIR receiver at each monitor up to 70 meters over CAT6a cable.
Three control option: Front panel button, IR remote control, RS232 through remote PC.
Support local/remote IR control to select input/output.
Built in RS232 console port to select input/output.
Built 1 in 4 out IR distributor function, allow the HE04M control each monitor and also
could be using the IR remote control to select the input source from the monitor side.
 Built in Ethernet Control and
Uncompressed high definition video 1080p@60Hz 12 bit and 3D capable
HDMI 1.4 video features supported, HDCP compliant.
Built in 4 channel IR & RS232 extender (work with Receiver: HE02EIR, HE02ER,)
Input/Output status could be displayed at front panel LCM & LED.
Optional Model:
RC04 : 4 x 4 Keypad remote control (select HE04M input/output)
Optional CAT5E/CAT6 Receiver Model:
HE02ER: 100m HDMI Receiver
HE02R :
100m HDMI, bidirectional IR and RS232 Receiver
HE02EIR:
70m HDMI and IR mono directional
Android App Control.
1

Advertisement

Table of Contents
loading

Related Manuals for SC&T HE04M

Summary of Contents for SC&T HE04M

  • Page 1 With the latest and more affordable HDBaseT technology extend HDMI sources up to 100M at 1080p or 1920x1200. HE04M HDMI 4 by 4 Matrix Switcher allows for effortless control of up to 4 devices through Ethernet Control, Android App Control , IR remote control, RS-232 and the front panel.
  • Page 2 1.0 HE04M Panel View: 2.0 HE04M Connection View: IR01 IR Remote Control BD PLAYER RS232 Control IR Receiver Cable IR Emitter Cable ETHERNET (IR-CR01) (IR-CT01) RS232 *4 IR TX IR RX RJ45 IR Receiver CONSOLE RS232 2 3 4 HDMI...

  • Page 3: Keypad And Leds

    3.0 Keypad and Leds 3.1 Back Panel Switch: POWER Light on Power on Light off Power off 3.2 Front LED Indication: BLUE Power on Standby LED off Power Off INPUT 1, 2, 3, 4 BLUE Presence signal indication LED off No signal incoming OUTPUT 1, 2, 3, 4 BLUE...

  • Page 4: Main Menu Option

    At HDBaseT remote port you could use IR01 remote control to do a quick input selection represent select HDMI input ports 1～4. Press to turn off the video ～ output. (See cap. 4.5 HDBaseT IR ID) HE04M IR01 IR-CR01 HE02R - 1 HDBaseT - 1 HE02R - 2...

  • Page 5: Matrix Mode

     FIX MODE is one to one transmission, RS-232 port 1 only work with HDBaseT port 1, RS-232 port 2 only work with HDBaseT port 2, and so on… ＊ MODE MATRIX MODE HE04M RS232 Cable HE02R - 1 Projector RS232 - 1...
  • Page 6 UP or DOWN button to select O or X. Then press ENTER to confirm setting. HDBaseT 1 2 3 4 IR TX O X O X O : on X : off HE04M IR-CR01 IR-CT01 HE02R - 1 HDBaseT - 1 HE02R - 2...
  • Page 7 DOWN button to select O or X. Then press ENTER to confirm setting. HDBaseT 1 2 3 4 IR RX O X O X O : on X : off HE04M Player IR-CT01 IR-CR01 HE02R - 1 HDBaseT - 1...
  • Page 8 0 to 9, total 10 groups. (See 5.2) These settings on IR01 remote control have to be done the first time you use the IR01 or when you change the batteries. IR01 HE04M ＋ ＋ HDBaseT - 1 HDBaseT - 2 ＋...
  • Page 9 0 to 9, total 10 groups. (See 5.1) These settings on IR01 remote control have to be done the first time you use the IR01 or when you change the batteries. IR01 HE04M ＋...

  • Page 10: Subnet Mask

    4.7 Ethernet * IP Address Subnet Mask Gateway DHCP Client Media Type MAC Filter IP Address: (Default: 192.168.0.200) IP Address 192.168. 0.200 This function can be setup MATRIX host intranet ”IP Address”, press the ENTER, the left-most number of second row will flash, then press the UP or DOWN button to change the numbers, , press LEFT or RIGHT to move to another location, the move to a position number will flash, press ENTER to complete the setting.
  • Page 11 5.1 channel . After enter BUILD-IN MODE menu, press UP or DOWN key to select LPCM-2CH or LPCM-5.1CH, then press ENTER to confirm setting. LPCM-2CH LPCM-5.1CH HE04M HDMI – 1 Player - 1 EDID HDMI – 2...

  • Page 12: Copy Mode

    HDMI - IN4 HDMI - OUT 4 Player - 4 LPCM-2CH 4.9 FIRMWARE VER. : Display HE04M Matrix firmware version 4.10 KEYLOCK : KEYLOCK function is to avoid any wrong button press. Under keylock mode press “POWER + MENU” to unlock...
  • Page 13 5.0 Remote Control Function ( IR01): 5.1 To command the matrix locally, setup the remote control IR01 ID with the same code of the Matrix (see 4.6). The default code is 4. (Power+4) 5.2 To command from remote HDBaseT output which input port must be routed on the output, setup the remote control IR01 according to chapter 4.5 -Power+0 enable to work on Output 1...
  • Page 14 Press 1 to 4 to select the source input, press 0 to turn off the output. * Under using quick key operation, LCM screen will jump to the output / input setting page, it won’t allow to use the front panel button to operate the HE04M Matrix.
  • Page 15 6.0 RS232 Computer Local Control Function： （CONSOLE） 6.1 Connect the RS232 CONSOLE port to the COM port of the host by a F/M RS232 straight cable (pin 2 to pin 2; pin 3 to pin 3, pin 5 to pin 5). The Matrix communication format is 9600,8, N, 1 (9600 bps, 8 data bits, no parity check, 1 stop bit) 6.2 Operation Instruction format: Command + Space + parameter + Enter...
  • Page 16 5 meters between HE02R receiver and wall socket. wiring diagram as below: Cat.6 MAX 100M ├ ───────────── ──────────────┤ ┌───┐ ┌─────┐ ┌─────┐ ┌────┐ │ HE04M │─── ──│ Wall Jack │──────────────│ Wall Jack │─────│ HE02R │ MAX 5M MAX 5M └───┘...
  • Page 17 8. Brown DATA3 - Caution: 1. First time to use HE04M remote control or change new batteries must set up IR ID. 2. The wiring must away from any equipment with electromagnetic wave, i.e.: microwave, mobile phone, radio equipment, high voltage, Fluorescent light fixtures, power lines, etc.

  • Page 18: Initial Ip Configuration

    Initial IP Configuration 1. Setup MATRIX IP Address same as your PC with same domains.(Default 192.168.0.200) MATRIX IP Address method, please refer. to “ETHERNET” Chapter 2. Input IP Address on a web page, you could link to the Web UI of the MATRIX host. 3.
  • Page 19  IP address : Change IP address  Subnet mask : Change Subnet mask  Gateway IP : Change Gateway IP  Media Type : Change detect 10 / 100 / Auto  DHCP Client : When setup at Enable, the MATRIX host will automatic get IP Address、 Subnet Mask、Gateway, If setup at Disable, the MATRIX host IP Address、Subnet Mask、...
  • Page 20  Aliases page can change input/output name, enter Apply to finish the setting after change The new name will update and correspond to SWITCH SETTING page Output / Input.  Press Back jump back to advanced page. MAC Filter:  MAC Filter can be setup as registered MAC Address to link MATRIX host Web UI ， the max. up to 10 groups MAC Address ...
  • Page 21 Android APP Function: (Google Play ： https://play.google.com/store/apps/details?id=sct.com.matrix_controller02) Main Page:  Middle Column: MATRIX host information  I : Version information  Edit: Edit button (red box), enter to check the Edit page description.
  • Page 22 EDIT Page: Drawing 1  Press + to add column.  Press middle column ( red box) to enter and modify information page, press middle column as drawing 2 Drawing 2  Change Name and IP ，IP need to setup same as MATRIX host ...
  • Page 23 Drawing 3 Drawing Mobile Phone Control Input port Switch Main Page:  Middle column (Red box) is MATRIX information column, press middle column enter INPUT/OUTPUT control page.
  • Page 24 Input Port Switch page: Drawing 1:  POWER : Switch MATRIX power on/standby Drawing 2:  INPUT 1 ~ 4 are selectable icons，enter any one ICON will pull out 4 inputs and Off.  Press Close back to main page...
  • Page 25 iOS APP ： (iTunes：https://itunes.apple.com/us/app/matrix-control/id904487754?l=zh&ls=1&mt=8) Main menu: 1. Click + to enter Add Device page 2. Info: version information ------------------------------------------------------------------------------------------------------------------------------------- Add Device: 1. Set Matrix name 2. Set Matrix IP address 3. Click Add Device to save and exit ------------------------------------------------------------------------------------------------------------------------------------- 1. Click to enter input selection 2.
  • Page 26 1. Click - icon to show the delete icon ------------------------------------------------------------------------------------------------------------------------------------- 2. Click Delete icon to delete 3. Click Done to save and exit ------------------------------------------------------------------------------------------------------------------------------------- Modification Device: 1. Click the icon to change the picture 2. Click the icon to change the picture 3.
  • Page 27 Selection device: 1. Power on/standby 2. Refresh Matrix connection 3. Output name 4. Input name ------------------------------------------------------------------------------------------------------------------------------------- If you see the message: Connection Error! Please make sure the Matrix is on, IP setting is correct and in same sub net of phone/pad ------------------------------------------------------------------------------------------------------------------------------------- Click on the output to enter selection mode.
  • Page 28 HE04M Standard Package Include: HE04M Matrix x 1 pcs IR01 IR Remote Control x 1 pcs IR Emitter Cable x 1 pcs IR Receiver Cable x 1 pcs Power Adapter x 1 pcs CD Software x 1 pcs HE04MK Package Include:...
  • Page 29 ITEM NO. HE02R (HE04MK Kit receiver) Resolution Up to 1080p / 60Hz / 12 bit Distance 100M (Max) HDMI Connector Type A RS-232 Baud Rate Up to 115200 bps / Full Duplex RS-232 Connector DB9 Male IR Carrier 30-60Khz / ±10° / 5M / 2 Way Power Supply DC 5V 2AMP Regulated Power Consumption...
