SC&T HS04M User Manual

4 x 4 hdmi matrix switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

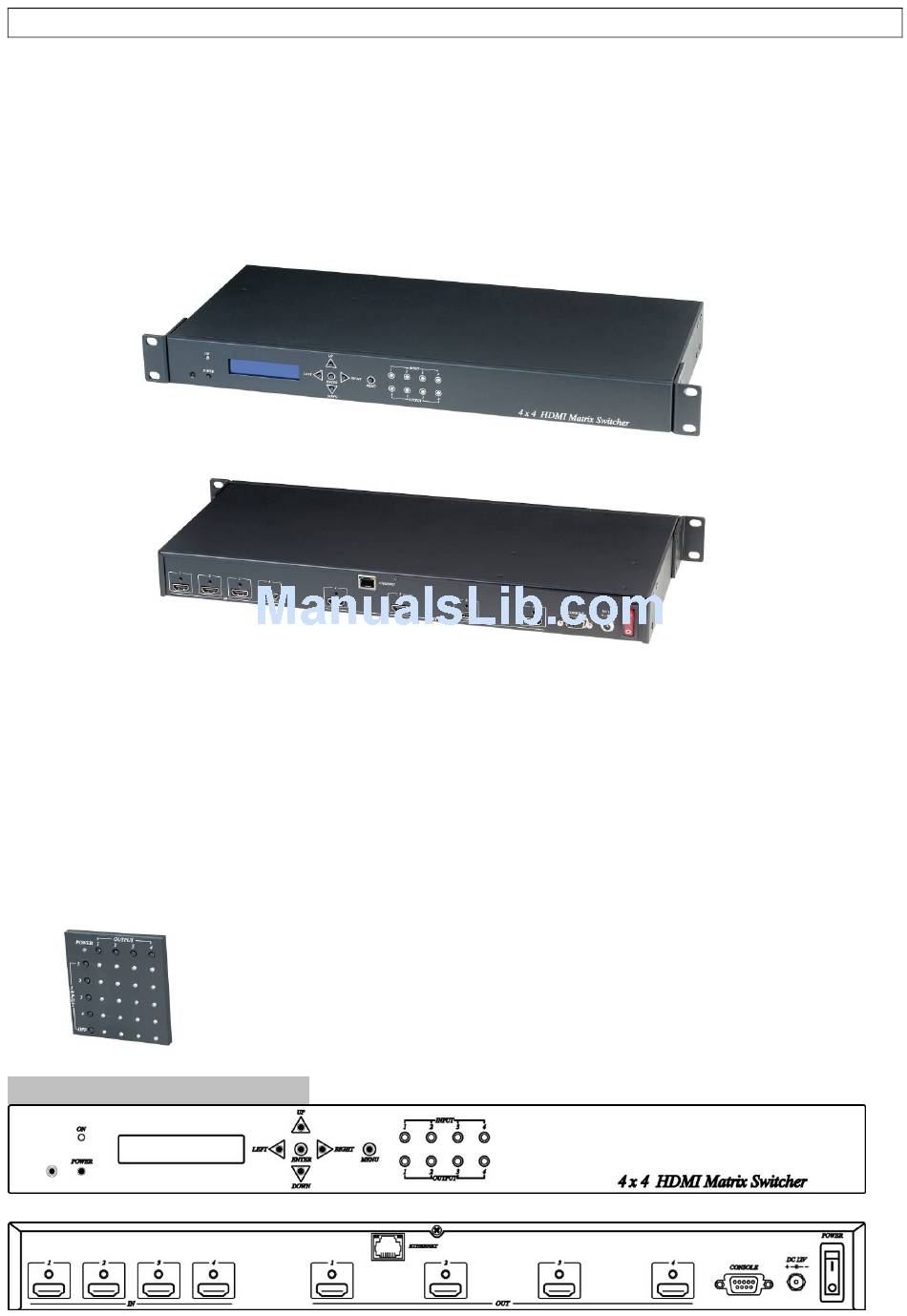

ITEM NO.: HS04M 4 x 4 HDMI Matrix Switcher
HS04M 4x4 HDMI Matrix Switch allows you to route 4 HD sources to any 4 HD displays! The 4x4 HDMI
Matrix switch is a complete HD routing solution for whole home HDTV systems. It provides 3D support,
Full 1080P, and is 1 RU Rack mountable for professional installations. In addition, the HS04M
effortless control of up to 4 devices through Ethernet control, Android App Control, IR remote
control, RS-232 and the front panel.
Features:
Connect up to 4 HDMI source to 4 x HDMI display monitors.
HDMI 1.4 with 3D, HDCP & DVI Compliant.
High definition video up to 1080p@60Hz@12bits.
Easy to use front panel control of switching or using the included remote control.
Built in Ethernet Control and
Built in RS232 console port to select input/output.
Input/Output status could be displayed at front panel LCM & LED.
Optional Model:
RC04: 4 x 4 Keypad remote control (select HE04M input/output)
1.0 HS04M Panel View:
HDMI Matrix Switcher Series
Android App Control.
allows for

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS04M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SC&T HS04M

Summary of Contents for SC&T HS04M

  • Page 1 ITEM NO.: HS04M 4 x 4 HDMI Matrix Switcher HS04M 4x4 HDMI Matrix Switch allows you to route 4 HD sources to any 4 HD displays! The 4x4 HDMI Matrix switch is a complete HD routing solution for whole home HDTV systems. It provides 3D support, allows for Full 1080P, and is 1 RU Rack mountable for professional installations.

  • Page 2: Keypad And Leds

    2.0 HS04M Connection View: IR01 Ethernet IR Receiver MATRIX CONSOLE RS-232 HDMI 1 HDMI 2 HDMI 3 HDMI 4 HDMI 1 HDMI 2 HDMI 3 HDMI 4 PC、KEYPAD SOURCE SOURCE SOURCE SOURCE 3.0 Keypad and Leds 3.1 Back Panel Switch:...

  • Page 3: Main Menu Option

    Standby mode: The IR Remote only could control POWER on/off. Front Button Function: Power Power on/standby DOWN down LEFT left RIGHT right ENTER select confirm key MENU back to main menu *When the sub-menu setting changed, press the ENTER key to complete the setting. If no press ENTER key, then the setting will be failed.
  • Page 4 0 to 9, total 10 groups. (See 5.1) These settings on IR01 remote control have to be done the first time you use the IR01 or when you change the batteries. MATRIX IR ID HS04M ＋...
  • Page 5 4.3 Ethernet * IP Address Subnet Mask Gateway DHCP Client Media Type MAC Filter IP Address: (Default: 192.168.0.200) IP Address 192.168. 0.200 This function can be setup MATRIX host intranet ”IP Address”, press the ENTER, the left-most number of second row will flash, then press the UP or DOWN button to change the numbers, , press LEFT or RIGHT to move to another location, the move to a position number will flash, press ENTER to complete the setting.
  • Page 6 DHCP Client: (Default Disable) DHCP Client Disable When DHCP Clients setup at “Enable”, the MATRIX host will automatically get IP Address, Subnet Mask, Gateway, if setup at “Disable”, the MATRIX Host IP Address need go through “ ETHERNET” menu to set IP Address, Subnet Mask, Gateway, to press the ENTER, the second row will flash, then press the UP or DOWN to select DISABLE, ENABLE, then press ENTER to complete the setting.
  • Page 7 This mode supports video resolution 480p, 720p, 1080i / p at 24/50/60Hz, support LPCM two-channel audio and 5.1 channel. After enter BUILD-IN MODE menu, press UP or DOWN key to select LPCM-2CH or LPCM-5.1CH, then press ENTER to confirm setting. LPCM-2CH LPCM-5.1CH HS04M HDMI – 1 Player - 1 EDID HDMI – 2...

  • Page 8: Firmware Ver

    HDMI - IN4 HDMI - OUT 4 Player - 4 LPCM-2CH 4.5 FIRMWARE VER.: Display HS04M Matrix firmware version 4.6 KEYLOCK: KEYLOCK function is to avoid any wrong button press. Under key lock mode press “POWER + MENU” to unlock...
  • Page 9 5.0 Remote Control Function (IR01): 5.1 To command the matrix locally, setup the remote control IR01 ID with the same code of the Matrix (see 4.2). The default code is 4. (Power+4) 5.2 Warning: These settings have to be done the first time you use the IR01 or when you change the batteries.
  • Page 10 No function No function No function No function Turn off output For example: to connect output port 1 to input port 4, press the quick key 1 (OUTPUT 1) and then press the quick key 4 (INPUT 4). * Under using quick key operation, LCM screen will jump to the output / input setting page; it won’t allow using the front panel button to operate the HE04M Matrix.
  • Page 11 6.0 RS232 Computer Local Control Function： （CONSOLE） 6.1 Connect the RS232 CONSOLE port to the COM port of the host by an F/M RS232 straight cable (pin 2 to pin 2; pin 3 to pin 3, pin 5 to pin 5). The Matrix communication format is 9600, 8, N, 1 (9600 bps, 8 data bits, no parity check, 1 stop bit) 6.2 Operation Instruction format: Command + Space + parameter + Enter...

  • Page 12: Initial Ip Configuration

    7. Ethernet Control Function: Initial IP Configuration 1. Setup MATRIX IP Address same as your PC with same domains.(Default 192.168.0.200) MATRIX IP Address method, please refer. to “ETHERNET” Chapter 2. Input IP Address on a web page, you could link to the Web UI of the MATRIX host. 3.
  • Page 13 Advanced:  IP address : Change IP address  Subnet mask : Change Subnet mask  Gateway IP : Change Gateway IP  Media Type : Change detect 10 / 100 / Auto  DHCP Client : When setup at Enable, the MATRIX host will automatic get IP Address、 Subnet Mask、Gateway, If setup at Disable, the MATRIX host IP Address、Subnet Mask、...
  • Page 14 Aliases:  Aliases page can change input/output name, enter Apply to finish the setting after change The new name will update and correspond to SWITCH SETTING page Output / Input.  Press Back jump back to advanced page. MAC Filter: ...
  • Page 15 Android APP Function: (Google Play https://play.google.com/store/apps/details?id=sct.com.matrix_controller02) Main Page:  Middle Column: MATRIX host information  I : Version information  Edit: Edit button (red box), enter to check the Edit page description. EDIT Page: Drawing 1  Press + to add column. ...
  • Page 16 Drawing 2  Change Name and IP ，IP need to setup same as MATRIX host  Enter Output and Input to change Alias, as drawing 3  Enter drawing 3 Red box to change the icon as drawing 4  Press Close to turn off the currently edit status Drawing 3 Drawing...
  • Page 17 Mobile Phone Control Input port Switch Main Page:  Middle column (Red box) is MATRIX information column, press middle column enter INPUT/OUTPUT control page. Input Port Switch page: Drawing 1:  POWER : Switch MATRIX power on/standby...
  • Page 18 Drawing 2:  INPUT 1 ~ 4 are selectable icons，enter any one ICON will pull out 4 inputs and Off.  Press Close back to main page...
  • Page 19 iOS APP ： (iTunes：https://itunes.apple.com/us/app/matrix-control/id904487754?l=zh&ls=1&mt=8) Main menu: 1. Click + to enter Add Device page 2. Info: version information ------------------------------------------------------------------------------------------------------------------------------------- Add Device: 1. Set Matrix name 2. Set Matrix IP address 3. Click Add Device to save and exit ------------------------------------------------------------------------------------------------------------------------------------- 1. Click to enter input selection 2.
  • Page 20 1. Click - icon to show the delete icon ------------------------------------------------------------------------------------------------------------------------------------- 2. Click Delete icon to delete 3. Click Done to save and exit ------------------------------------------------------------------------------------------------------------------------------------- Modification Device: 1. Click the icon to change the picture 2. Click the icon to change the picture 3.
  • Page 21 Selection device: 1. Power on/standby 2. Refresh Matrix connection 3. Output name 4. Input name ------------------------------------------------------------------------------------------------------------------------------------- If you see the message: Connection Error! Please make sure the Matrix is on, IP setting is correct and in same sub net of phone/pad ------------------------------------------------------------------------------------------------------------------------------------- Click on the output to enter selection mode.

  • Page 22: Specification

    Specification: ITEM NO HS04M 1080p @ 60Hz 12bit，3D HDMI Resolution Video Input Interface HDMI Type A x 4 Video Output Interface HDMI Type A x 4 RS-232 Input/Output DB9 x 1(CONSOLE) Interface IR Receive Angle ± 45 degree IR Receive Distance Power Adapter DC 12V 4.2A...
