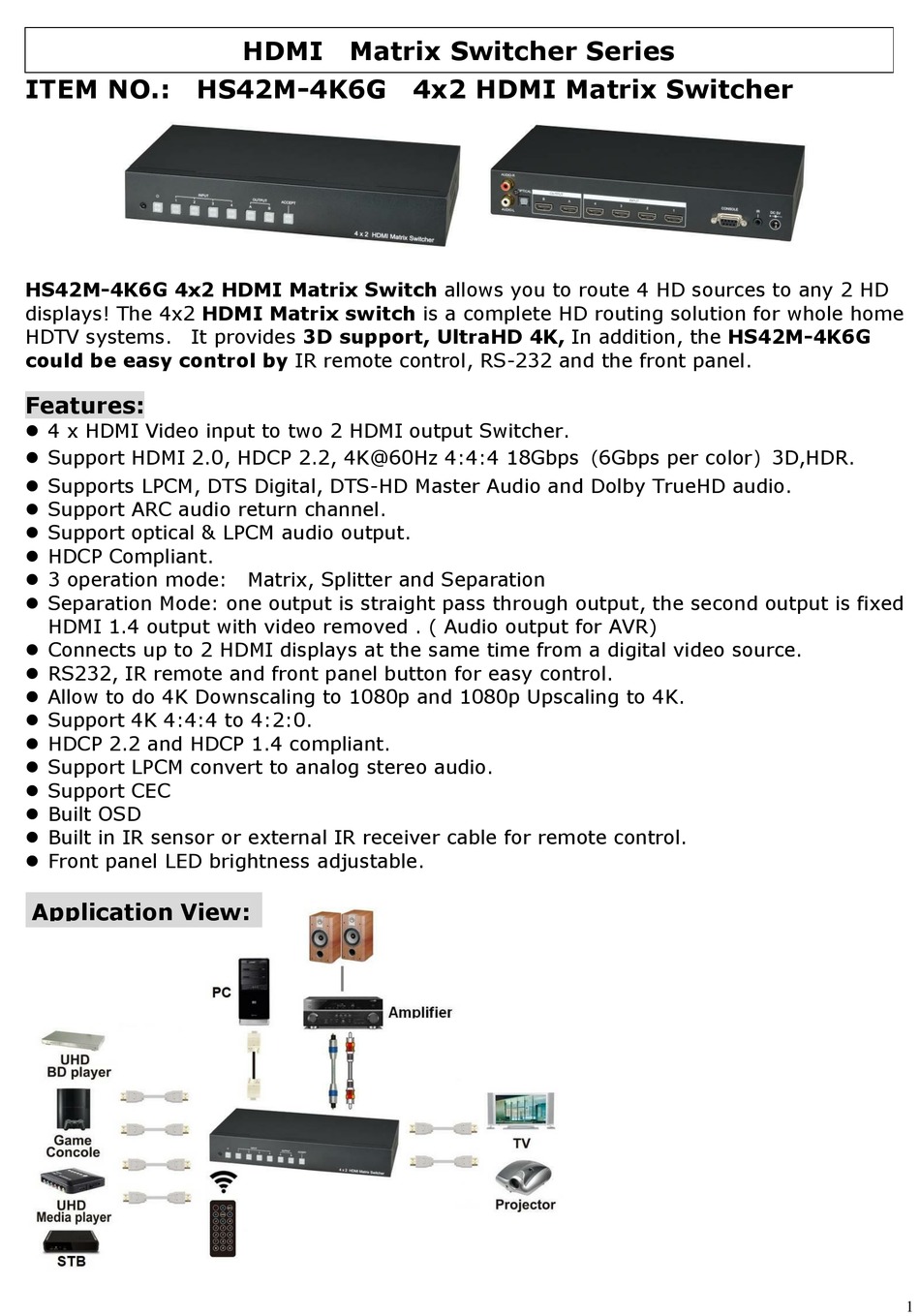

HDMI Matrix Switcher Series
ITEM NO.: HS42M-4K6G 4x2 HDMI Matrix Switcher
HS42M-4K6G 4x2 HDMI Matrix Switch allows you to route 4 HD sources to any 2 HD
displays! The 4x2 HDMI Matrix switch is a complete HD routing solution for whole home
HDTV systems. It provides 3D support, UltraHD 4K, In addition, the HS42M-4K6G
could be easy control by IR remote control, RS-232 and the front panel.
Features:
 4 x HDMI Video input to two 2 HDMI output Switcher.
 Support HDMI 2.0, HDCP 2.2, 4K@60Hz 4:4:4 18Gbps（6Gbps per color）3D,HDR.
 Supports LPCM, DTS Digital, DTS-HD Master Audio and Dolby TrueHD audio.
 Support ARC audio return channel.
 Support optical & LPCM audio output.
 HDCP Compliant.
 3 operation mode: Matrix, Splitter and Separation
 Separation Mode: one output is straight pass through output, the second output is fixed
HDMI 1.4 output with video removed . ( Audio output for AVR)
 Connects up to 2 HDMI displays at the same time from a digital video source.
 RS232, IR remote and front panel button for easy control.
 Allow to do 4K Downscaling to 1080p and 1080p Upscaling to 4K.
 Support 4K 4:4:4 to 4:2:0.
 HDCP 2.2 and HDCP 1.4 compliant.
 Support LPCM convert to analog stereo audio.
 Support CEC
 Built OSD
 Built in IR sensor or external IR receiver cable for remote control.
 Front panel LED brightness adjustable.
Application View:
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HS42M-4K6G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SC&T HS42M-4K6G

Summary of Contents for SC&T HS42M-4K6G

  • Page 1 HDMI Matrix Switcher Series ITEM NO.: HS42M-4K6G 4x2 HDMI Matrix Switcher HS42M-4K6G 4x2 HDMI Matrix Switch allows you to route 4 HD sources to any 2 HD displays! The 4x2 HDMI Matrix switch is a complete HD routing solution for whole home HDTV systems.

  • Page 2: Front Panel Function

    Front Panel Function: Panel Button Function: OSD Status Description No. Function Status Receiving IR remote signal Blue Power on POWER Standby Video input been selected INPUT Flash Input 1~4 Video input not selected No input OUTPUT Select output to switch (press A and B together to Output A/B/A+B select both) then press INPUT and ENTER to confirm.
  • Page 3 IR Remote Control (IR01) : Initial at first time use the remote control or after change battery of remote control, the IR remote control and the equipment IR Remote ID must be using same. The default IR Remote ID is 0. To setting the Remote ID, Press and hold power button, then press button 0 to complete the setting.
  • Page 4 OSD MENU Function : Main Menu Sub Menu Description OPERATION MATRIX MODE Independent input for output A & B MODE SPLITTER MODE Same input for both output A & B SEPARATION MODE Set output A video only and output B audio only EXIT Back to menu OUTPUT A...
  • Page 5 RS232 remote control command: Connect the RS232 CONSOLE port to the COM port of the host by an F/M RS232 straight cable (pin 2 to pin 2; pin 3 to pin 3, pin 5 to pin 5) Communication format is 9600, 8, N, 1 (9600 bps, 8 data bits, no parity check, 1 stop bit) Operation Instruction format: [Command] [Description]...
  • Page 6 Specification: ITEM NO HS42M-4K6G HDMI Resolution Up to 4096x2160/60Hz/4:4:4(18Gbps), 3D,HDR HDMI Audio Support Up to 7.1 LPCM 192KHz / Dolby TrueHD / DTS-HD MA Video Input Interface HDMI Type A x 4 Video Output Interface HDMI Type A x 2...
