BCM953128R8G Quick Start Guide

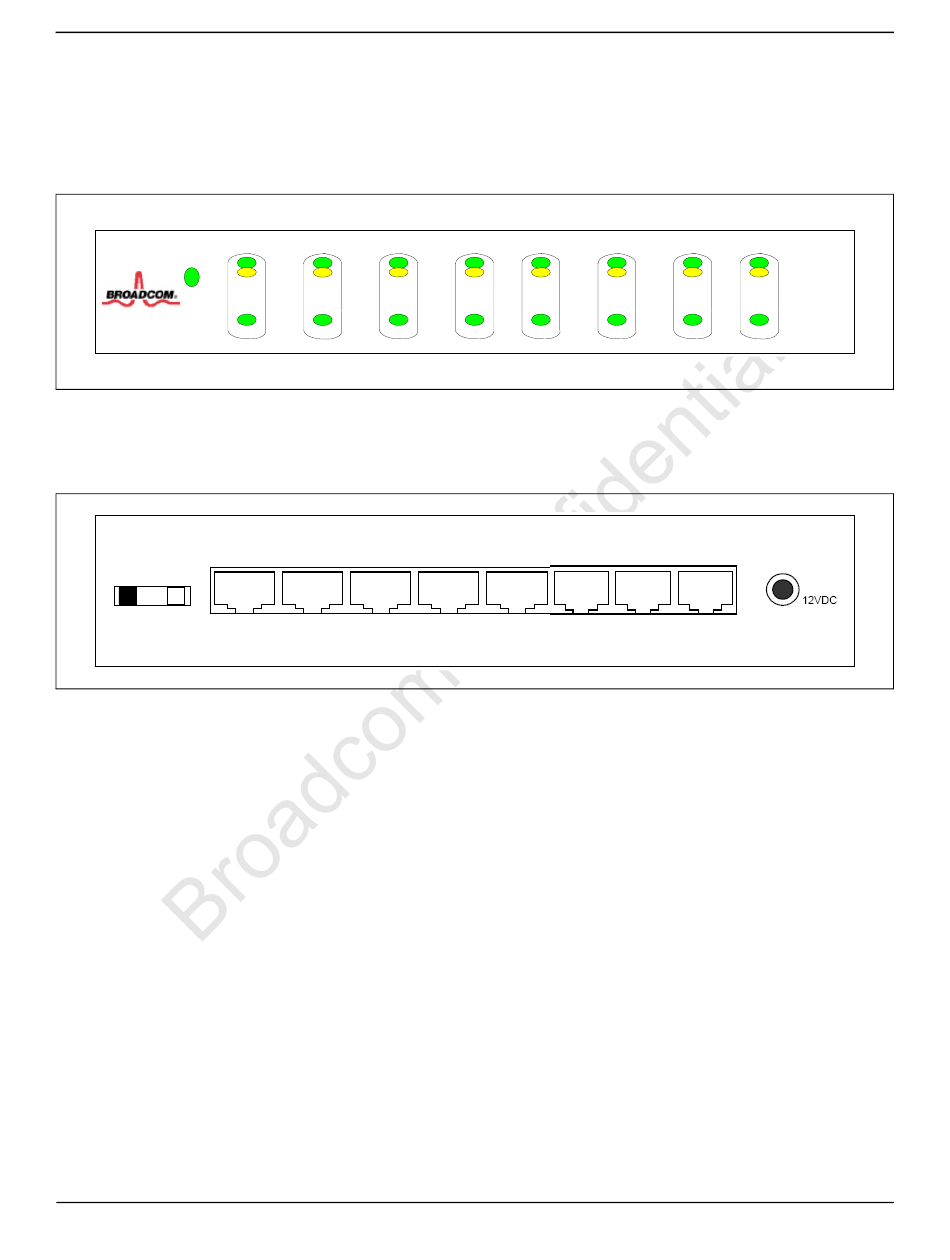

Figure 2 is the front view of the BCM953128R8G. The LEDs provide the following information:
• The top LED(s) display the link speed as follows: green for 1000 Mbps, yellow for 100 Mbps, and off for
10 Mbps.
• The Link/Act LED displays steady green if there is a link and blinking if there are activities per port.
Pwr
LED
Figure 3 is the rear view of the BCM953128R8G.
8
LoopDTech
on off
BROADCOM
®
December 13, 2010 • 953128R8G-QSG100-R
1 2 3
Figure 2: BCM953128R8G Front View
7 6
Figure 3: BCM953128R8G Rear View
4 5 6
5 4 3
Block Diagram
7 8
1000M
100M
10M(off)
Link/Act
2 1
Reference Board
