Part 3 Operation

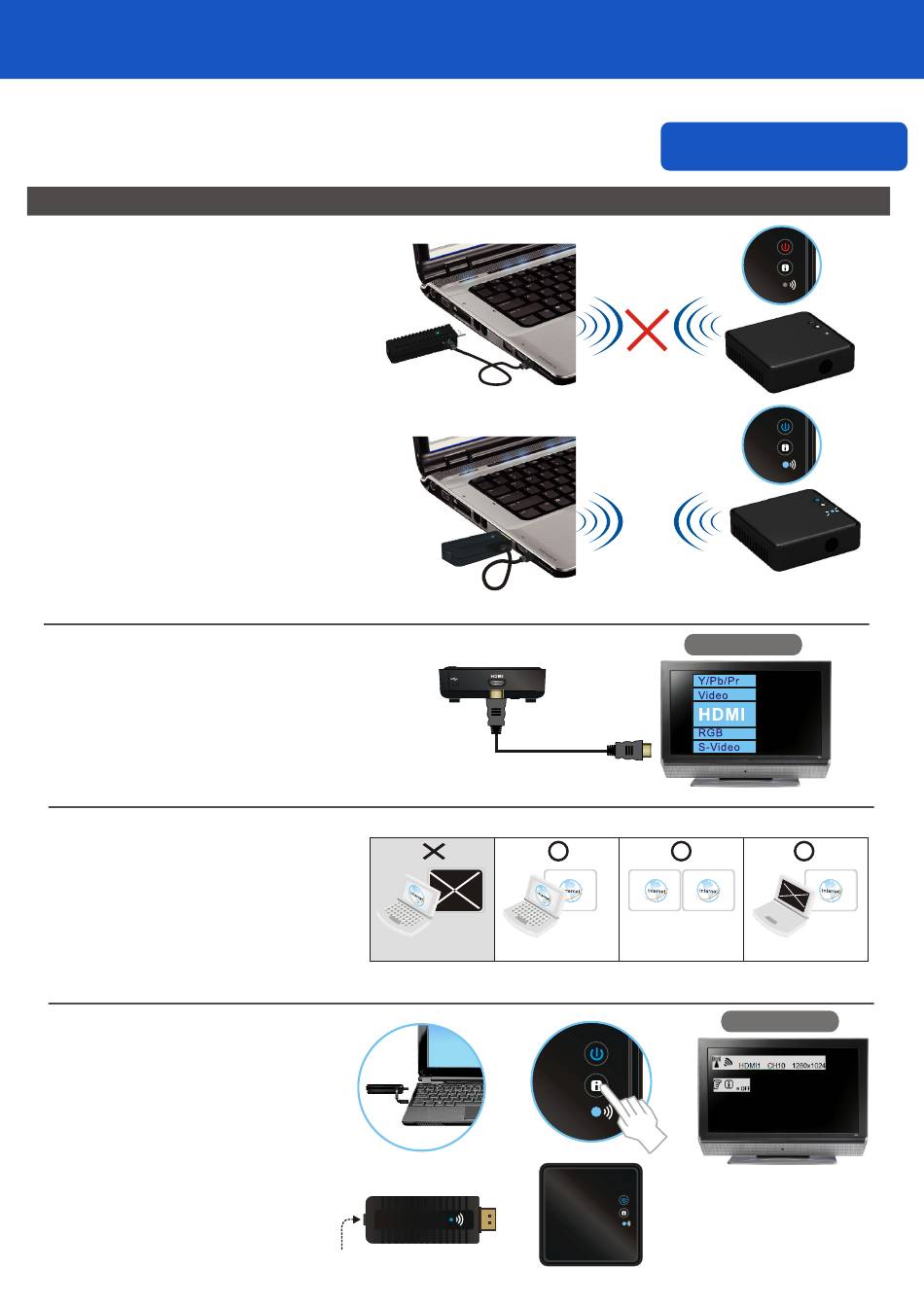

Activate the WHD030-V2 and set up
the link
Plug in the power for TX and RX, the
WHD030-V2 set will etablish the
connection automatically.
When the power of the transmitter is
plugged off for over 10 minutes, the
receiver will enter Standby mode (Power
LED of receiver will turn red).
When the receiver switches to Standby
mode (PowerLED of receiver is red), plug in
the power of transmitter and the
transmitter will establish the connection
automatically.
HDTV
Please make sure the HDTV or HD-projector
is already switched to the HDMI input
connected to the receiver.
Make sure the display of your PC is set to
be in „Duplicate", „Extend" or „Projector
only" mode for a signal on the external
display.
Computer only Duplicate Projector only
Extend
HDTV
If the WHD030-V2 works normal, the
POWER LED and SOURCE LED will be solid
blue, and you can press the INFO button
on the transmitter or receiver to check the
status of signal quality and related
information on the OSD. Press INFO key
again to exit OSD.
On-Screen-Display
of Receivers
on HDTV
INFO.
