SenseAir aSENSE Installation Manual

Co2 / temperature transmitter with heater mounted in industrial housing

Hide thumbs Also See for aSENSE:

Gas and Air Sensors

/ temperature transmitter with heater

mounted in industrial housing

aSENSE with heater

The DIN rail places the sensor 7 mm from the wall. This distance is very important for

the response time because the air inlets are situated at the back of the housing

facing the wall. The sensor should be mounted with the cable entry bushing upwards

and the draining holes downwards.

The sensor PCB is in an extra housing inside the outer housing.

If for some reason the PCB must be removed it must be handed carefully

and protected from electrostatic discharge! Normally, removing the PCB is

not required.

Installation Manual

aSENSE

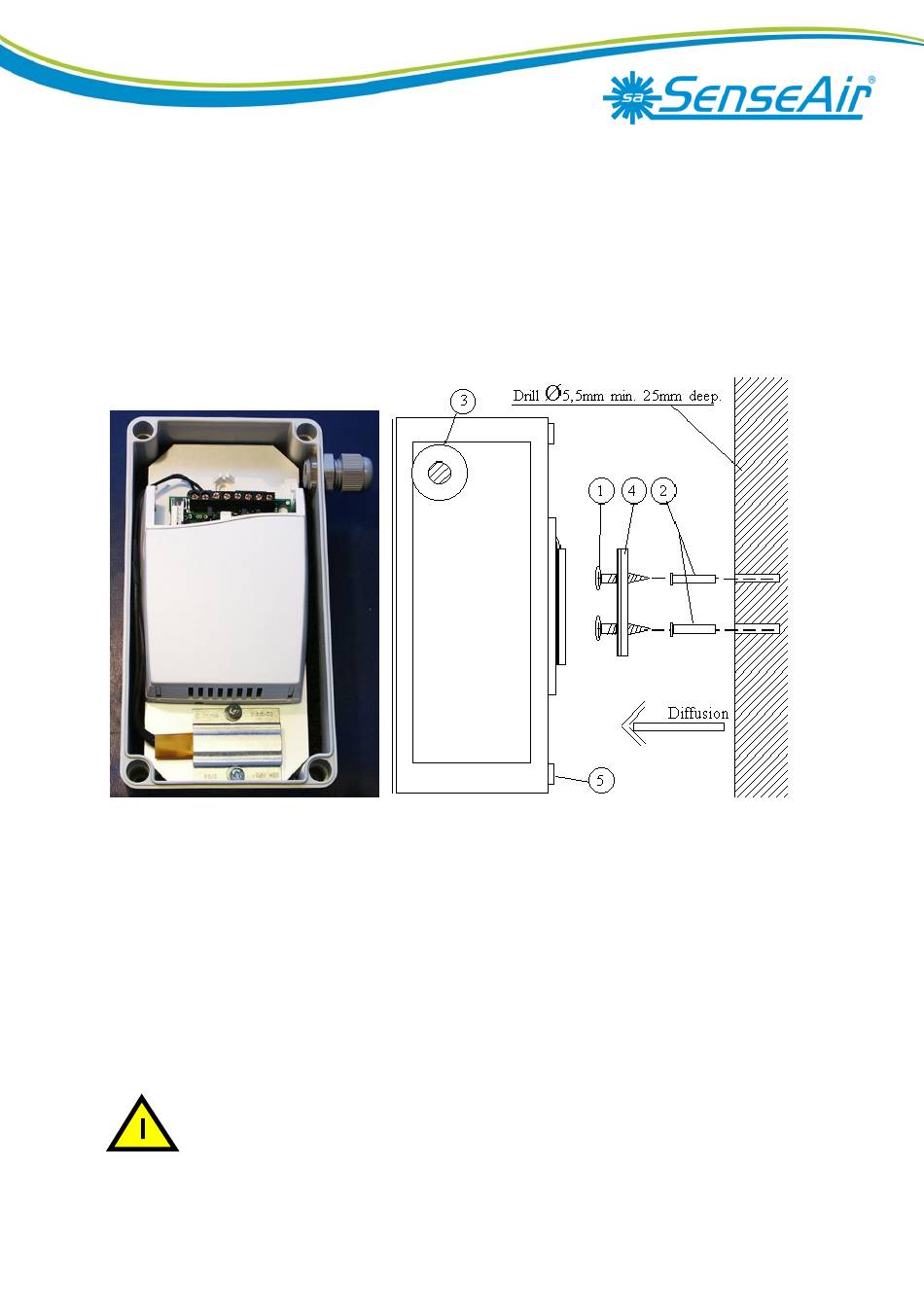

Mounting of the sensor onto the wall

Screw 5x25

Dowel

Cable entry bushing PG9

DIN rail

Draining holes

Document

Rev

IMA0156

Page

1 (3)

Table of Contents

Do you have a question about the aSENSE and is the answer not in the manual?

Page 1 Gas and Air Sensors Installation Manual aSENSE / temperature transmitter with heater mounted in industrial housing aSENSE with heater Mounting of the sensor onto the wall Screw 5x25 Dowel Cable entry bushing PG9 DIN rail Draining holes The DIN rail places the sensor 7 mm from the wall. This distance is very important for the response time because the air inlets are situated at the back of the housing facing the wall.
Page 2: Electrical Connections
(permitting a ”3-wire” configuration). A single transformer may be used for the entire system. Note 2: aSENSE can deliver a voltage or a current loop for Out(1) / Out(2). To change between voltage and current output mode the hardware jumpers are used. There is one jumper for Out(1) and one for Out(2), so that one output can be a voltage output and the other a current output.
Page 3 Terminals and jumpers on aSENSE. The darker positions are default settings. 74(2.91) 62(2.44) 94(3.7) 56(2.2) The dimensions of the sensor in mm and inches ® SenseAir AB (headquarter) Stationsgatan 12 Phone: +46-(0)653 - 71 77 70 Box 96 E-mail: info@senseair.com...
