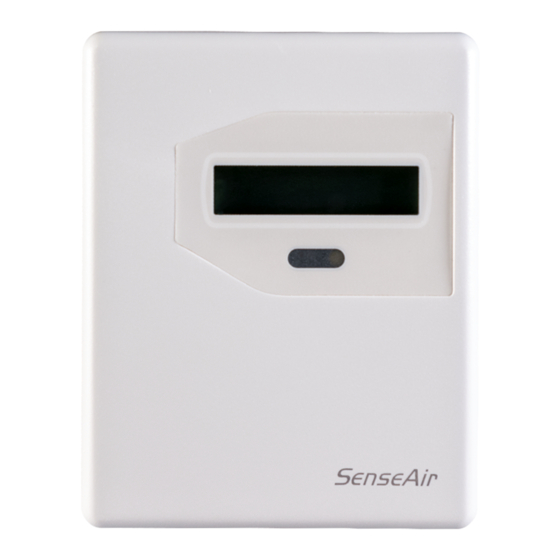

SenseAir eSENSE FAI Installation Manual

Co2 transmitter with acoustic alarm
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
Installation Manual
TM
eSENSE
FAI

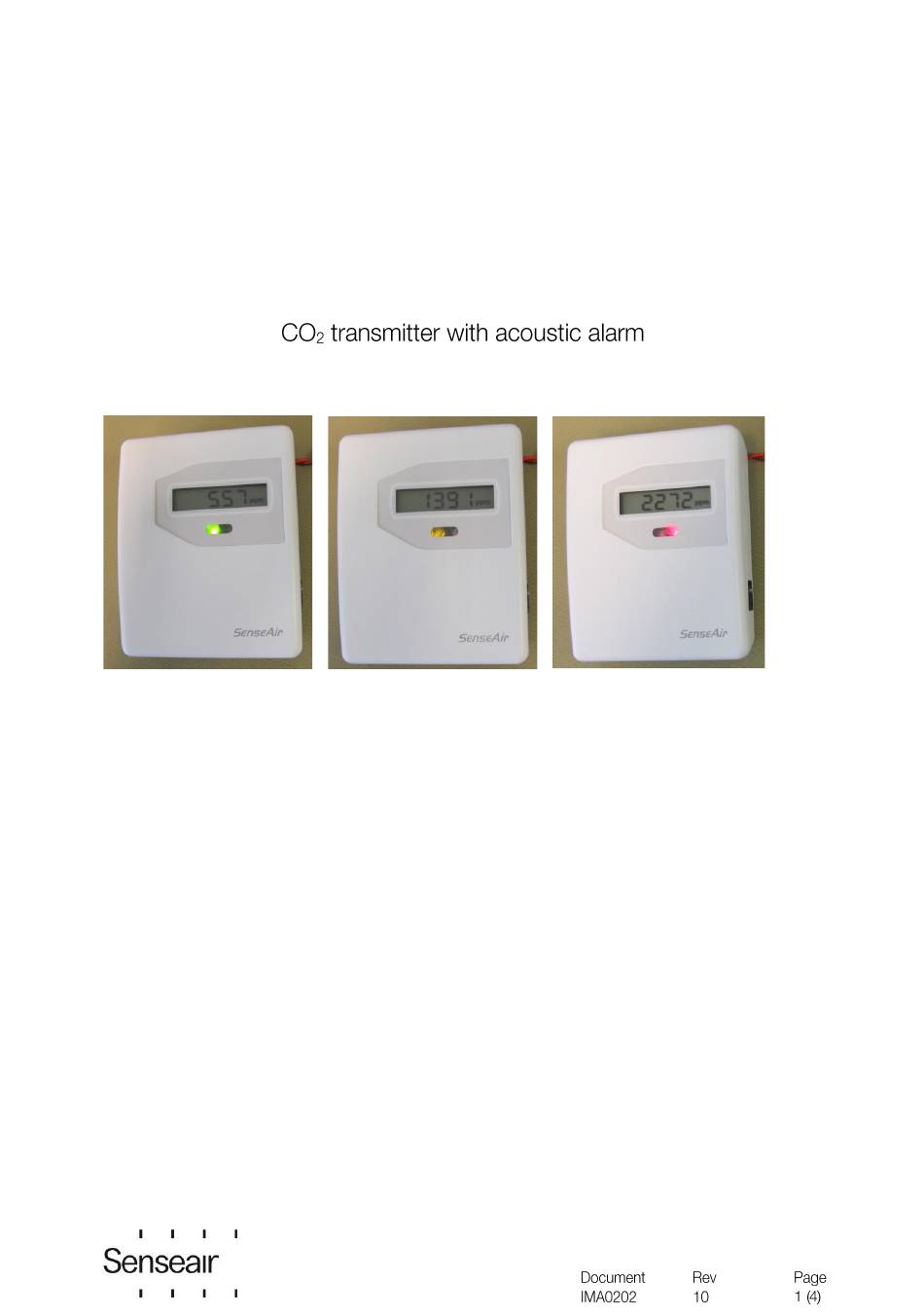

Figure 1 eSENSE FAI with the three LED indicating CO
levels
2
General
The IAQ-sensor product eSENSE FAI (sensor for wall mounting) is designed to measure carbon
dioxide (CO
) in rooms. The acoustic alarm sounds when the carbon dioxide concentration is above
2
1400 ppm CO
. A push button silences the alarm for 30 minutes. Green, yellow and red LEDs give a
2
rough estimate of the CO
concentration Option Disp displays the measured CO
value in ppm (parts-
2
2
per-million) on the LCD.
The units are designed for connecting to Direct Digital Control (DDC) with 0-10 V signal inputs. The
signal output OUT1 (0-10 V) gives linear signal voltage corresponding to the measuring range.

Advertisement

loading
Need help?

Need help?

Do you have a question about the eSENSE FAI and is the answer not in the manual?

Questions and answers

Related Manuals for SenseAir eSENSE FAI

Summary of Contents for SenseAir eSENSE FAI

  • Page 1 Figure 1 eSENSE FAI with the three LED indicating CO levels General The IAQ-sensor product eSENSE FAI (sensor for wall mounting) is designed to measure carbon dioxide (CO ) in rooms. The acoustic alarm sounds when the carbon dioxide concentration is above 1400 ppm CO .
  • Page 2 The power supply has to be connected to is considered as system ground. The same ground reference has to be used for the eSENSE FAI unit and for the DDC/signal receiver. NOTE: An external fuse shall be used with this sensor. A separate fuse must be used for each sensor.
  • Page 3 They are automatically turned off when the sensor returns to normal operation. Maintenance The eSENSE FAI is basically maintenance free in normal environments thanks to the built-in self- correcting ABC algorithm. Discuss your application with SenseAir in order to get advice for a proper calibration strategy.
  • Page 4 Mounting of the sensor onto the wall NOTE: Please use screws with screw head diameter less than 7.5 mm (0.295 inches) and screw head height less than 2.4 mm (0.094 inches). ® Senseair AB (headquarter) Stationsgatan 12 Phone: +46-(0)653 - 71 77 70 Box 96 E-mail: info@senseair.com...
