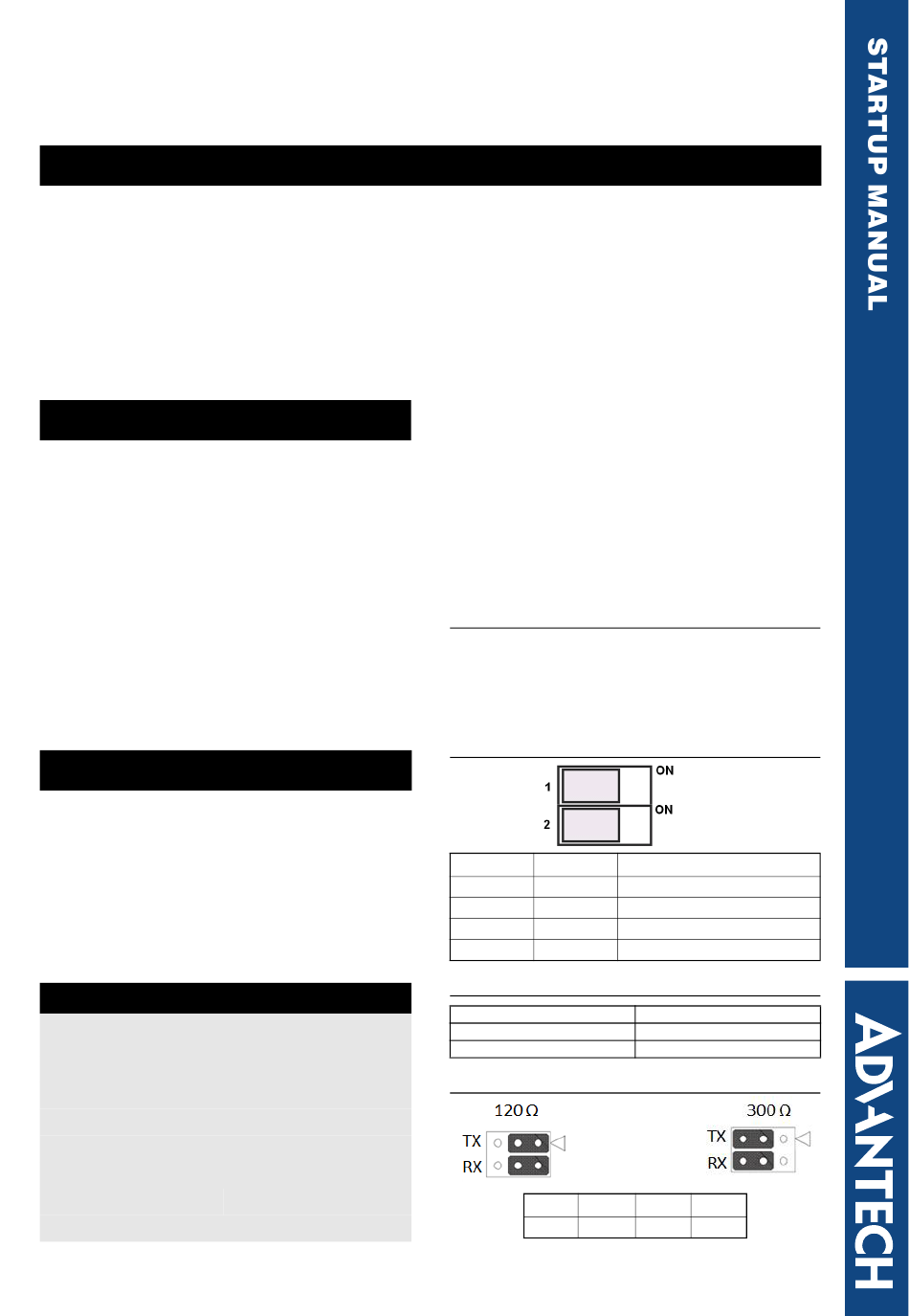

Advantech PCM-3612I Startup Manual

PCM-3612I
4-port RS-232/422/485 PCI-104 Module
Introduction
The PCM-3612I is a PCI-104-compatible 4-port
RS-232/422/485 serial interface module. It works
with PCI-104 CPU modules or CPU cards which
accept PCI-104 expansion modules. It provides four
independent serial interfaces,accessed through the
IDE 40-pin connector(s). The module's industry-
standard 16C550 asynchronous communication chip
is fully programmable. The module requires no
special commands or control codes if you use the
standard COM1~COM4(PCM-3612I) port address
Initial Inspection
We carefully inspected the PCM-3612I both
mechanically and electrically before we shipped it.
It should be free of marks and scratches and in per-
fect electrical order on receipt.
Handle the board only by its edges. The static
charge on your body may damage its integrated cir-
cuits. Keep the card in its anti-static package when-
ever it is not installed. You can use this package to
return the card if it should need repair.
Features
• 4 independent RS-232/422/485 serial ports
• Transmission speeds up to 921.6 Kbps
• Supports Windows 7/8/10, and Linux
• LED indicators: TX, RX
• Compatible with standard PC ports:
COM1~COM4
• Automatic RS-485 data flow control
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com/support/
This startup manual is for PCM-3612I
Part No: 2003M61211
1 Startup Manual
2nd Edition
May 2016
All product specifications are subject to change without notice.
Specifications
• Bus interface: PCI-104
• Number of ports: 4
• Data bits: 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity: none, even, odd
• Speed (bps): 50 ~ 921.6K
• Connectors: One IDE 40-pin male
• Signals:
RS-232: TxD, RxD, RTS, CTS, DTR, DSR,
DCD, RI and GND
RS-422:TxD+,TxD-, RxD+, RxD-,GND,
CTS+, CTS-, RTS+ and RTS-
RS-485:Data+,Data- and GND
• Power requirements:
+3.3V@260 mA (Typical) +3.3V@530 mA
(Max.)
• Operating Temperature: -40~85°C(-40~185°F)
• Storage Temperature: -40~85°C(-40~185°F)
Card Configuration
The max configuration for the PCI bus of PCI-104
modules is FOUR plus the host board. If you stack
more than one PCI-104 module to a host board be
sure to set the modules to different PCI numbers
through SW1.
SW1 Settings
1 2 Expansion Board
OFF OFF 3
OFF ON 2
ON OFF 1
ON ON 0 (default)
SW2 Settings
Switch Position
ON
OFF
CN2-CN5 Impedance Selection
CH1 CH2
CN2 CN3
Mode
RS-422_Master
RS-422_Slave/RS-485
CH3 CH4
CN4 CN5
