Touchpad board

Table 6-10 Touchpad board description and part number
Description
Touchpad bracket
Touchpad board
Before removing the touchpad board, follow these steps:
1. Prepare the computer for disassembly
2. Remove the base enclosure (see
3. Remove the battery (see
4. Remove the hard drive (see
5. Remove the solid-state drive (see
6. Release the speaker cables from the touchpad click board bracket (see
To remove the touchpad board:

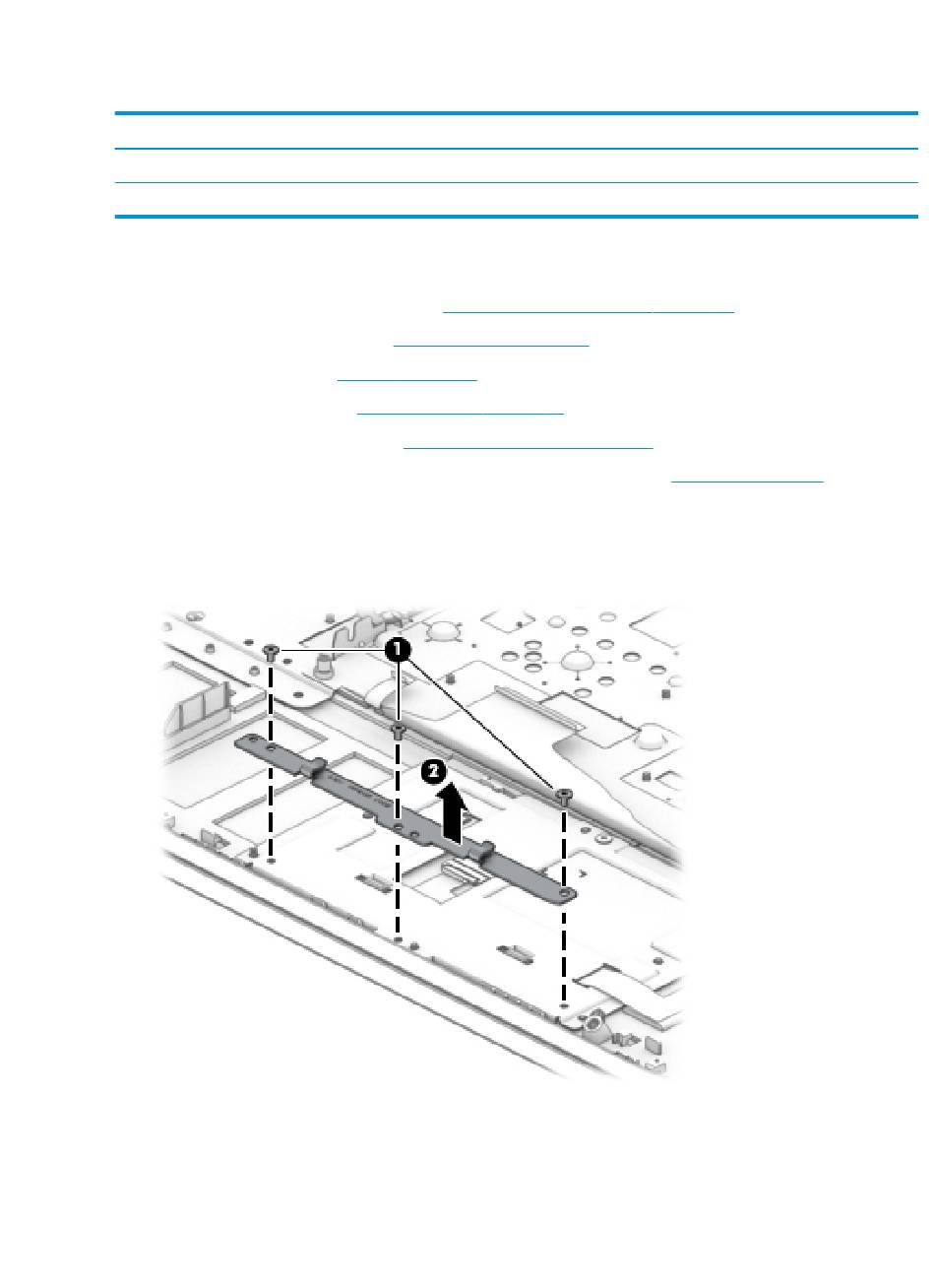

1. Remove the three Phillips 5 mm screws (1) that secure the touchpad board bracket to the computer.
2. Remove the bracket (2) from the computer.
3. Disconnect the touchpad cable (1) from the system board.
4. Remove the Phillips screw (2) that secures the touchpad click board to the computer, and then release
the thermal tape connected to the board.
5. Lift the front of the touchpad board (3) to disconnect it from the plastic clips.
(Preparation for disassembly on page
Base enclosure on page
Battery on page 45).
Hard drive (HDD) on page
Solid-state drive (SSD) on page
34).
34).
37).
39).
Speakers on page
Component replacement procedures
Spare part number
L24356-001
L24355-001
46).
59
