Power connector cable

Table 6-5 Power connector cable description and part number
Description
Power connector cable
Before removing the power connector cable, follow these steps:
1. Prepare the computer for disassembly
2. Remove the base enclosure (see
3. Remove the battery (see
4. Remove the hard drive (see
5. Remove the solid-state drive (see
6. Remove the right fan bracket (see
Remove the power connector cable:

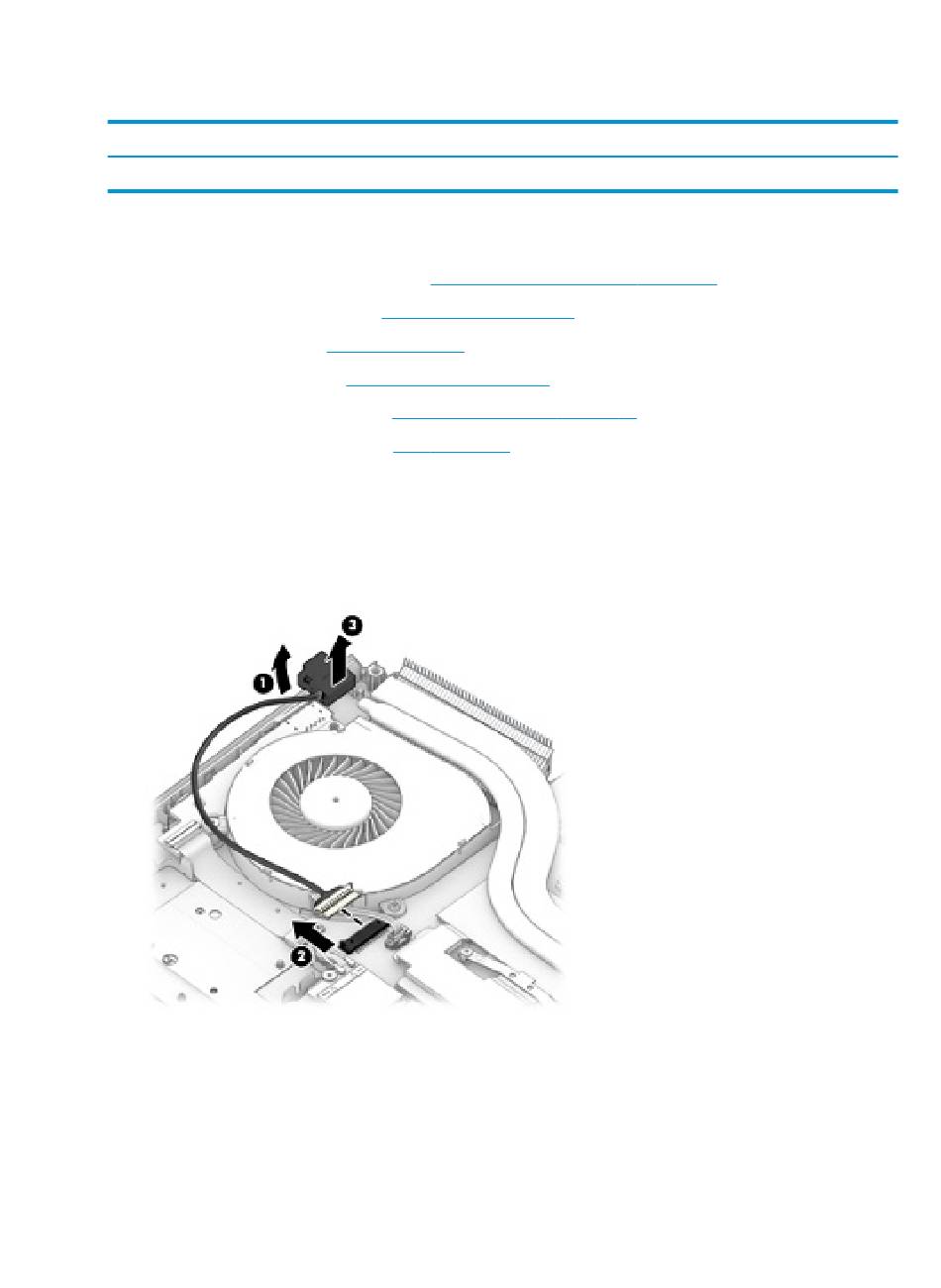

1. Release the connector (1) at angle from under the heat sink.
2. Disconnect the power connector cable (2) from the connector on the system board.
3. Remove the power connector from the computer (3).
Reverse this procedure to install the power connector cable.
50 Chapter 6 Removal and replacement procedures for authorized service provider parts
(Preparation for disassembly on page
Base enclosure on page
Battery on page 45).
Hard drive (HDD) on page
Solid-state drive (SSD) on page
Fans on page 48).
34).
34).
37).
39).
Spare part number
L24348-001
