Rear Panel

18
Section Name
18 Phones output (desktop only) Keyboard: see Front panel description above
19

Outputs

20 Sustain pedal input
21 Expression pedal input
22 MIDI connectors
23 USB connector
24 DC power connector
25 Power cable guard
26 Kensington lock
27 Power switch
Outputs
Headphones
As mentioned in the previous section, the
headphone connectors for the Hydrasynth
keyboard are located on its front panel, along
with a dedicated volume control.
The Hydrasynth desktop has its headphone
connector on the rear panel, and the volume is
controlled with the Master Volume knob.
Stereo Outputs
Connect the Left output if monaural signal is
desired; connect both outputs if stereo signal
is preferred.
19 20 21

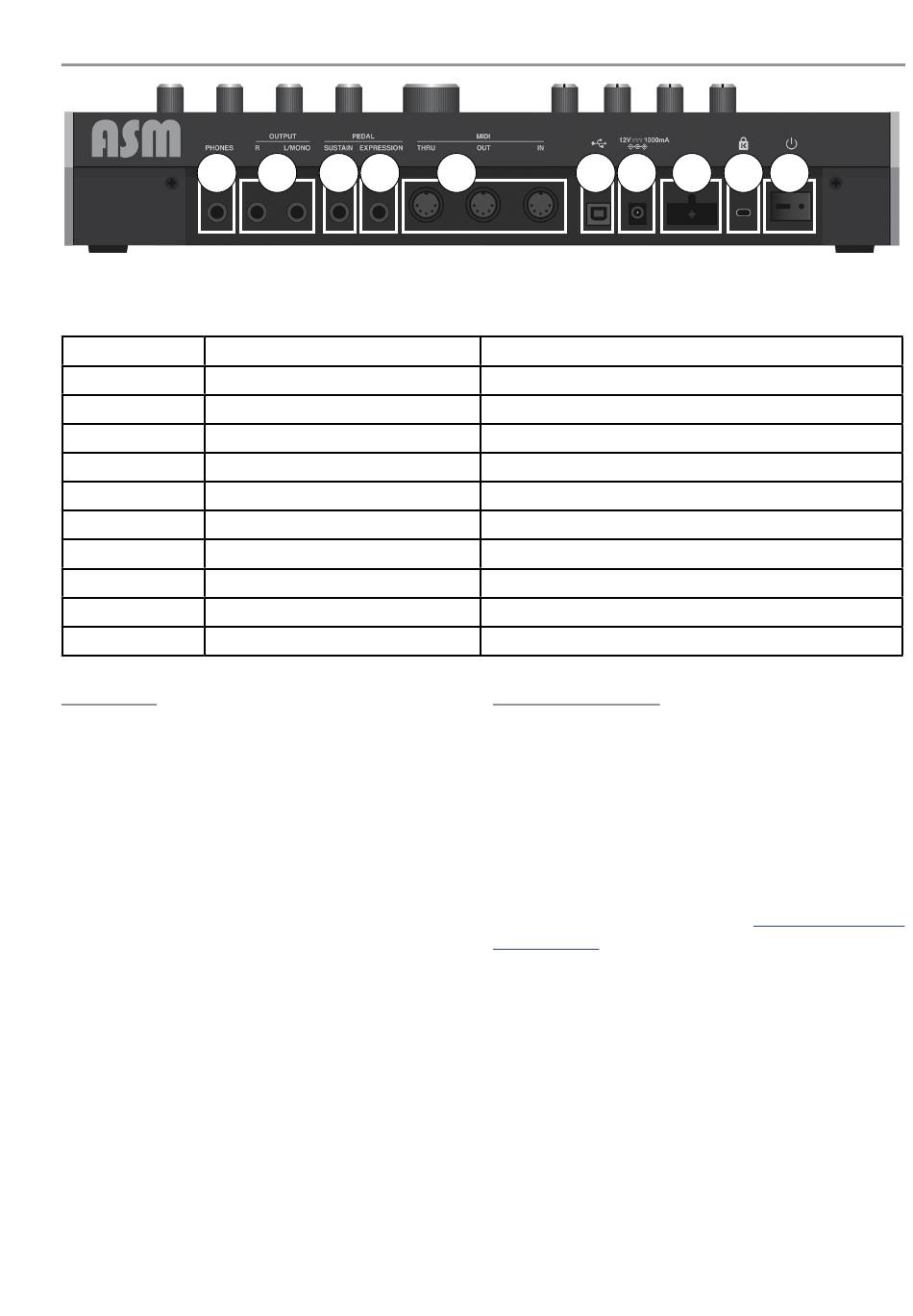

Rear panel of the Hydrasynth desktop model is pictured
22
22 23 24 25 26 27
Description
Left (mono), Right (for stereo)
Polarity sensing on startup
Polarity can be inverted in System Setup
In, Out, Thru
Type B for computer connection
12 volts DC, 1A
Helps prevent accidental disconnection
Helps prevent unwanted relocation
Gets the creative juices flowing!

Control Inputs

Sustain
Connect a momentary footswitch here. Its
polarity is detected on power-up, so any brand
of pedal can be used.
Expression
Connect a variable foot pedal here. Its polarity
and range can be adjusted in
Pages (p. 84)], which makes it compatible
with a wide range of pedals.
This input can also be used as a modulation
source in the Mod matrix, so it can do far more
than control the volume!
The System Setup
