Valor L2 1700K Quick Start Manual

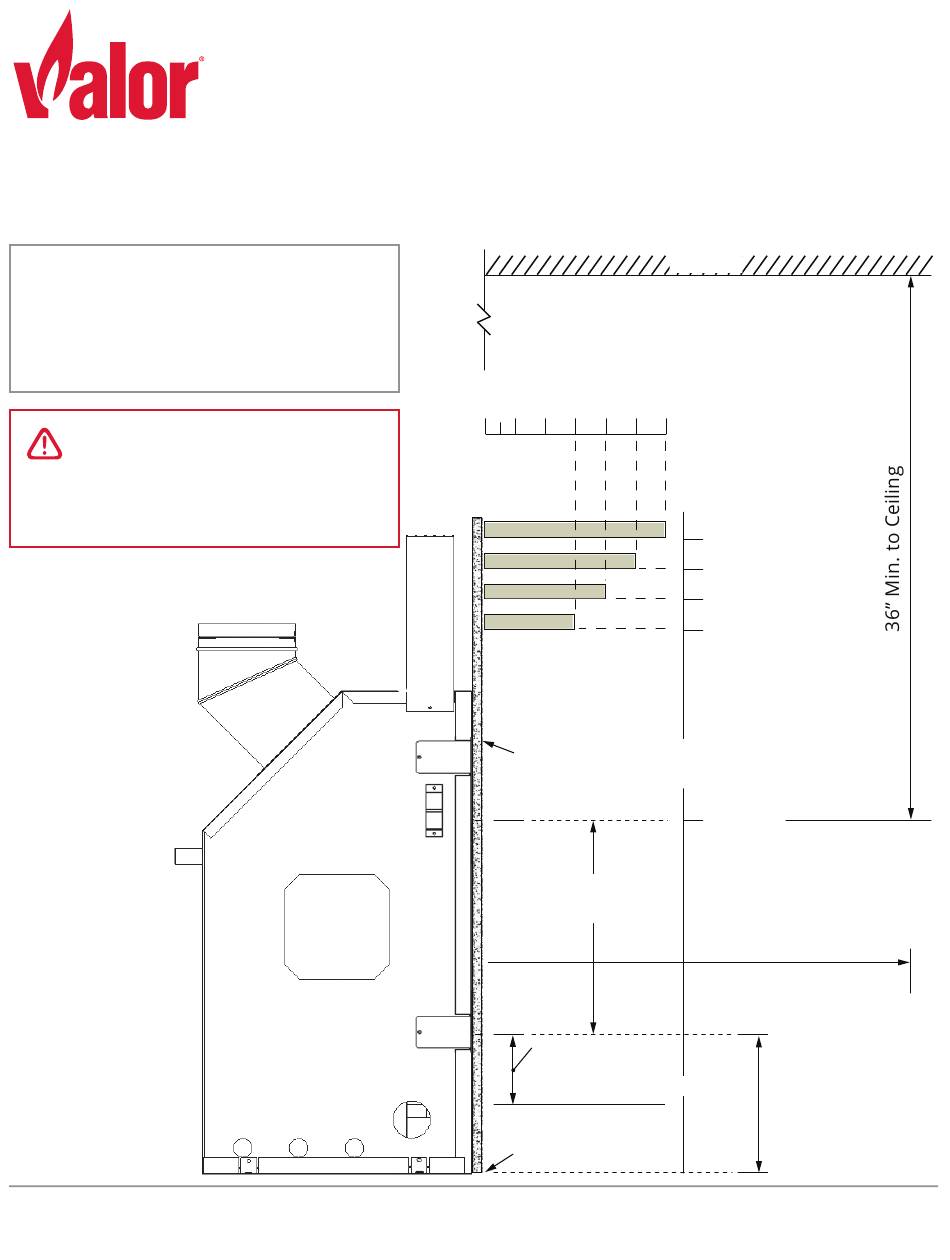

Clearances—Combustible Mantel
Left Side View
NOTE
Use for the optional HeatShift
System affects mantel and hearth
clearances. See HeatShift section in
Appendix D of Installation Manual.
WARNING
HeatShift System MUST be installed
on this appliance when using
1730CIK—Clean Installation Kit!
Valor Fireplaces • 190—2255 Dollarton Highway • North Vancouver, BC • V7H 3B1
L2 1700K
Tel: 604.984.3496 or 1.800.468.2567 • Fax: 604.984.0246 or 1.800.268.0333
www.valorfi replaces.com
Mantel Projection
(from Face of Cement Board)
0 2" 4" 6" 8" 10"12"
Face of 1/2" thick
non-combustible
cement board
Fireplace
Opening
4" minimum to
combustible or
non-combustible hearth
Bottom of Unit
December 2019
Ceiling
44"
Mantel
42"
Height
40" (from
Bottom
38"
of Unit)
23-7/8"
Do not put
furniture or objects
within 36" [914 mm]
of front of appliance
9-3/8"
1/2
