Valor L1 Series Installation Instructions Manual

INSTALLATION INSTRUCTIONS
Adjustable Finishing 1" Trim 1575LFB
Approved for use with Valor models 1500 and 1600 ONLY
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and must be
installed for the protection of children and other at-risk
individuals.
Trim size
The 1575LFB Linear 1-inch finishing trim is designed
to be used on the Linear L1 1500 and L1 2-sided 1600
Valor heaters.
The application of this kit does not affect the venting
capabilities or method of preparation of the 1500 or 1600
heaters as described in the heaters respective installation
manuals.
This trim fits flat against the cement board with the ability
to tuck additional non-combustible materials up to 5/8
inch thickness behind the trim.
DO NOT COVER the trim with any finish!
4005604-02
© Copyright Miles Industries Ltd., 2020.
L1 Series
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
41-1/2" [1054 mm]
INSTALLER: Leave this
manual with the appliance.
CONSUMER: Retain this
manual for future reference.
Note: This kit must be
installed or serviced by a
qualified installer, service
agency or gas supplier. These
instructions are to be used
in conjunction with the main
installation instructions
for the above listed heater
model.

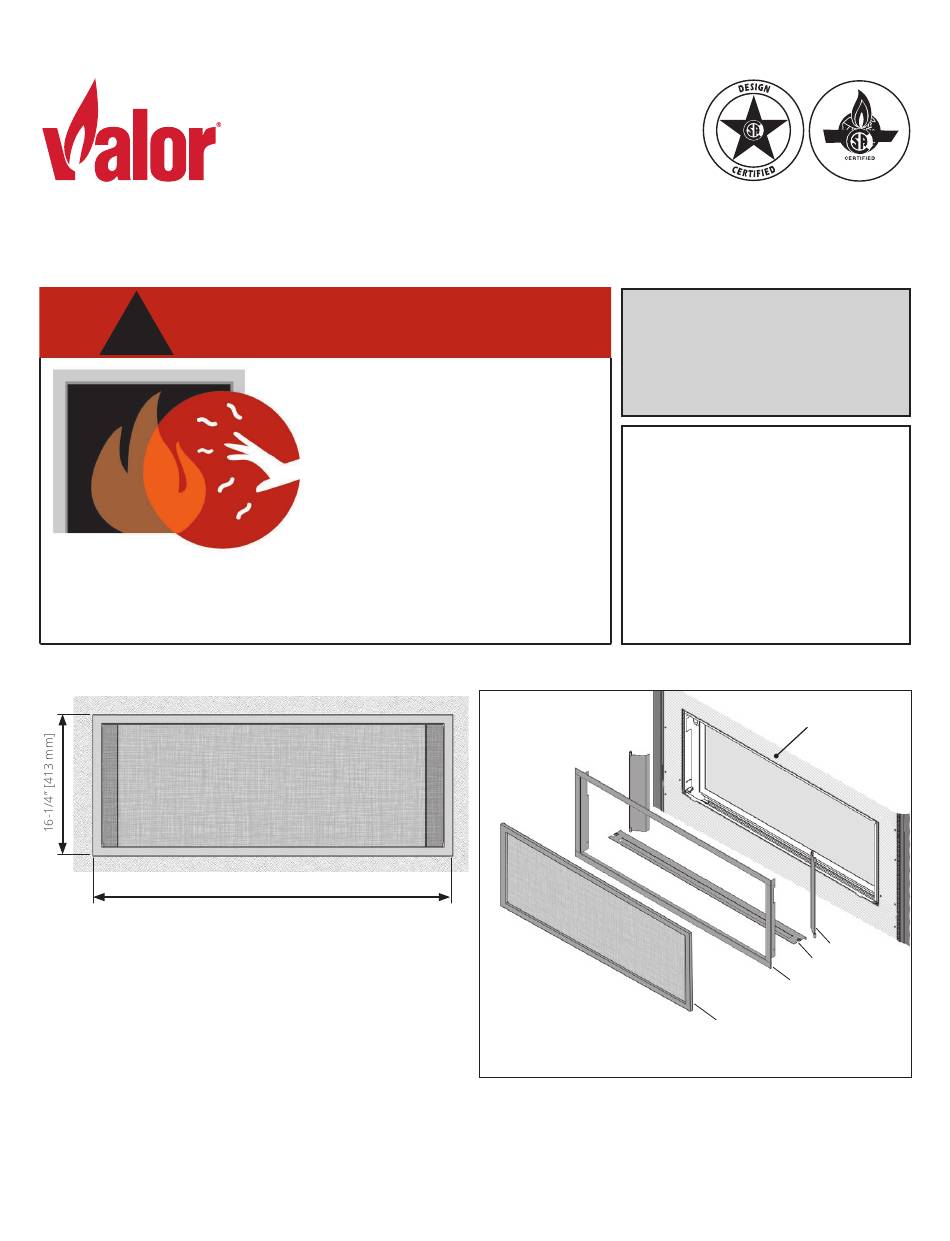

Overview (1500, 1600 engines and 1575LFB sold separately)
Non-combustible
cement board
Side doors
Plinth
Trim
Barrier screen
1
